Automatic climbing formwork Xclimb 60

Automatic climbing formwork Xclimb 60

The all-round self-climb­ing sys­tem for use in build­ing con­struc­tion

Self-climb­ing, mo­d­u­lar and ver­satile

Au­to­mat­ic climb­ing form­work Xclim­b 60 is a du­al-use crane-lift­ed or self-climb­ing sys­tem that can be cost-ef­fec­tive­ly de­ployed any­where in the high-rise con­struc­tion field.

Huge flex­i­bil­i­ty

thanks to the in­no­va­tive, mo­d­u­lar sys­tem

Ben­e­fit from the sys­tem's mul­ti-use ca­pa­bil­i­ty

  • for walls, for fa­cades or as a pro­tec­tion screen

  • and from the op­tion of lift­ing the sys­tem ei­ther by crane or as a self-climbed sys­tem us­ing man­u­al­ly re­lo­cat­able hy­draulic lift­ing ap­pliances

  • vari­able plat­forms that al­low per­fect adap­ta­tion to the ge­ome­try of the struc­ture

High stan­dard of safe­ty

for your site crew

Safe­ty is "built in" to all phas­es of the work, as

  • the guid­ed re­po­si­tion­ing op­er­a­tion is in­de­pen­dent of the weather

  • en­clo­sures can eas­i­ly be con­struct­ed with ma­te­rials that are adapt­ed to the re­quire­ments

  • the plat­forms are sized to the ide­al width for prac­ti­cal work­ing

  • the Lad­der sys­tem XS can eas­i­ly be in­te­grat­ed

Sim­ple mo­d­u­lar de­sign con­cept

based on a prac­ti­cal "con­struc­tion-kit" sys­tem

Save time and mon­ey be­cause of

  • the high de­gree of pre-as­sem­b­ly

  • the way the sys­tem sim­pli­fies plan­n­ing, util­i­sa­tion and han­dling

  • the fa­cil­i­ty for leav­ing ser­vice loads in place on the plat­forms even while th­ese are be­ing re­po­si­tioned

Media

Doka Climbing Systems "High Expectations" Play Doka Climbing Systems "High Expectations"
Climbing sequence Play Climbing sequence
Joint repositioning of two units Play Joint repositioning of two units
More

References

Lotte World Tow­er Seoul

Sev­ern Trent Cen­tre

Sa­na­gawa Bridge

Ocean Fi­nan­cial Cen­tre

LOT 171

Gov­ern­ment build­ings, Pu­tra­jaya

Du­al-car­ri­age­way bridge in Ni­tra

Bridge across Riv­er Sa­va

400 5th Av­enue

More

Au­to­mat­ic climb­ing form­work Xclimb 60

The system is self-climbed up to the next casting section using portable hydraulic components. Finishing-work platforms can be attached anywhere on the scaffold.

Sim­p­ly self-climb­ing

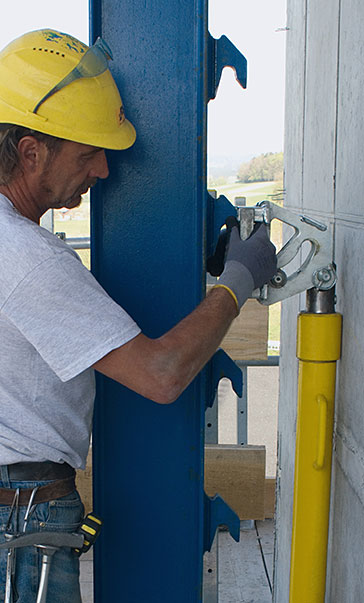

Lightweight, quick-mount hydraulic cylinders with a lifting mechanism reliably push up the entire climbing scaffold – complete with the formwork – until the next climbing cam is pushed past the "Guiding shoe" and automatically latches into it. To do this, each hydraulic cylinder is simply placed onto the respective "Guiding shoe".

Out­s­tand­ing work­place safe­ty

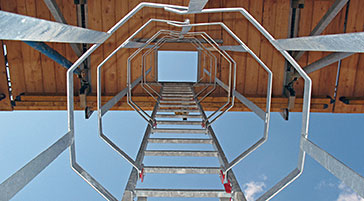

Integrable ladderways and manholes provide safe access routes between the working platforms. When designing climbing formwork solutions, the Doka planning professionals integrate all safety accessories, tailoring them to the construction project in hand.

Easy to get right first time

The Xclimb 60 system is so user-friendly that after a brief familiarisation phase supervised by a Doka formwork instructor, the site crew quickly "get it" and can then work entirely unaided.

Pro­tec­tion screen Xclimb 60

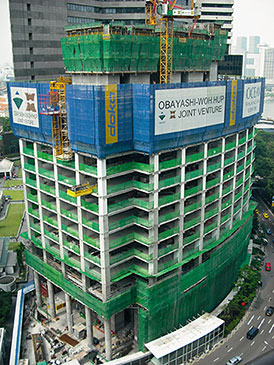

The full-area enclosure around the uppermost levels of the building enables all work to be carried out in complete safety, protected from all climatic influences. An integrable loading platform, or the Table Lifting System TLS, makes easy and safe work of repositioning floor-slab formwork, tools and other materials.
