The form­work sys­tem for mass con­crete struc­tures

High load-bear­ing ca­pac­i­ty, op­ti­mum safe­ty, no form-ties

This dam form­work stands out for its high load-bear­ing ca­pac­i­ty and op­er­a­tio­n­al safe­ty. Two sys­tems, each with a dif­fer­ent load ca­pac­i­ty, en­able it to be tailored to any mass con­crete struc­ture.

A prac­ti­cal sys­tem

of­fer­ing great ver­satil­i­ty

Good adapt­a­bil­i­ty to the re­quire­ments of the struc­ture:

  • All Do­ka framed and tim­ber-beam form­work sys­tems, and al­so steel form­work, can be used

  • Choice of two dif­fer­ent ver­sions, with an an­chor ten­sile force of 150 kN or 220 kN

  • In both ver­sions, the form­work is tiltable, and on the D22 sys­tem it can al­so be rolled back

Rapid work­ing

right from the very first block

The unique con­struc­tio­n­al de­sign of this dam form­work

  • en­ables it to be used right from the very first block

  • re­duces the need for mod­i­fi­ca­tions, there­by sav­ing time and mon­ey

Work­place safe­ty

has top pri­or­i­ty

The work­ing plat­forms of this dam form­work

  • pro­vide high safe­ty and let the crew work at high speed

  • can be quick­ly mount­ed and de­ployed as com­plete units com­pris­ing both pour­ing plat­forms and fin­ish­ing-work plat­forms

  • are gener­ous­ly di­men­sioned - 1.70 m in the D15 sys­tem and 2.40 m in the D22 sys­tem

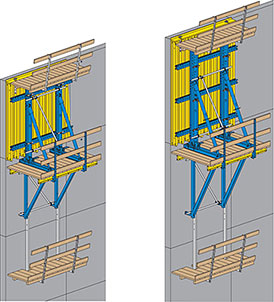

The dam formwork system that's available in two versions: The D15 system, with an anchor tensile force of 150 kN and for blocks of up to 3.00 m in height, and the D22 system with an anchor tensile force of 220 kN and for block heights of up to 4.00 m
