The unbeatably fast tableform that adapts perfectly to any slab

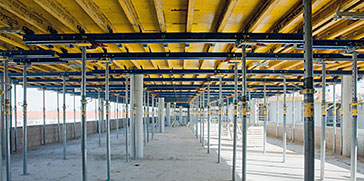

Large areas of slab in record time, even without crane assistance

Fast forming of large areas of slab can be so easy, and so safe. With Dokamatic tables, fitting standard functional components couldn't be simpler. And this system's adaptability to widely differing requirements on the site is another factor making it so safe, fast and unbeatable.

Shorter repositioning times

as tables can be repositioned with no need for a crane

Cuts labour costs by at least 50 %, thanks to

  • vertical repositioning with no need for a crane, regardless of the wind conditions

  • horizontal repositioning by just 1 person

  • facility for travelling ready-assembled units

Greater safety around slab-edges

to protect your employees

The Dokamatic table gives you very many safety advantages, such as

  • integrable table platforms and drop-beam solutions

  • swivel-mounted props making it easy to move the tables out over parapets

  • higher load capacity due to rigid restraint of the props

Fast, easy adaptability

to engineering and geometrical requirements

The versatile Dokamatic table

  • enables infill zones to be integrated in the system, by using insertion beams

  • permits stepless transitioning to Dokaflex 1-2-4

  • features easily relocatable swivel-heads

  • can be shored using either floor props, table frames or load-bearing towers

Faster construction workflows without the crane. With the Table Lifting System TLS, tableforms are brought up to the next floor at the push of a button.

Bookmark and Share

Sys­tem di­men­sions with a "grid" log­ic

  • 4 rentable standard formats, for optimum adaptation to the site situation
  • pre-assembled table grille for facing with any desired form-ply
  • on-time delivery of the ready-assembled Dokamatic tables to the site

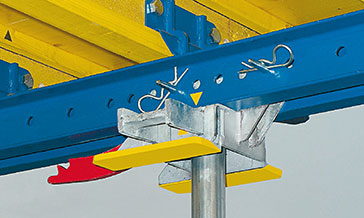

Dokamatic swiv­el-head 40

  • for rigid restraint of the floor prop
  • floor prop can be swivelled and locked in 1 working position and 2 idle positions, for safe, fast working
  • the tables can be optimally adapted to the structure simply by relocating the swivel-head in the steel primary beam

Strong sys­tem Components for re­duc­ing your close-out costs

With their field-proven "top" quality, the Doka formwork sheets, "H20 top" beams and "Eurex top" props ensure reliability and a long service life. Also, the flexurally rigid link with the tableform superstructure increases the load capacity of the "Eurex top" floor props by 10 kN – from 20 kN to 30 kN in the case of a "Eurex 20 top" prop, and from 30 kN to 40 kN in the case of a "Eurex 30 top" prop.

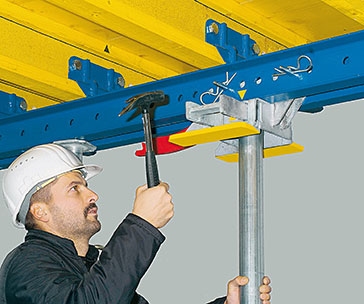

Adapt­ing the props

Some simple steps and just a few blows of the hammer are all it takes to fix, change or remove the props. This integrated quick-acting prop connector thus makes it possible to adapt the tableforms very quickly to all different jobsite tasks.

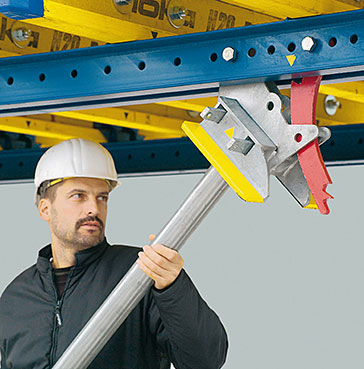

Tilt­ing back the props…

The tilting mechanism of the Dokamatic swivel-head 40 is very easy to operate.

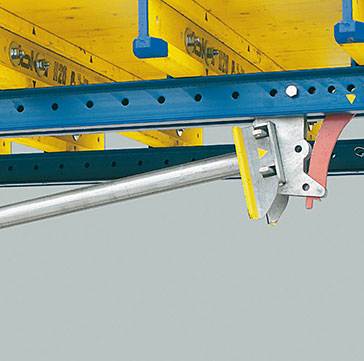

…in­clud­ing lock­ing func­tion

To enable the tables to be lifted out across parapets and railings unobstructed, the props can be locked at an angle of either 75° (as shown in picture) or 90°.

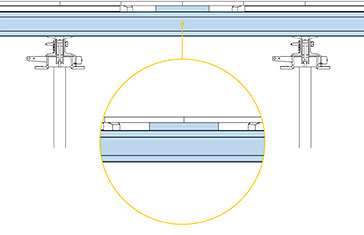

In­te­grat­ed clo­sures

for reducing labour and equipment costs

  • Dokamatic insertion beams are used to integrate infill zones into the system. These insertion beams are pushed in or out as needed, and provide the support surfaces for the formwork sheeting.
  • The infill zones and the tables are repositioned together, which saves even more time.

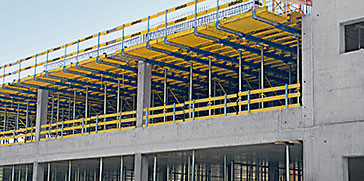

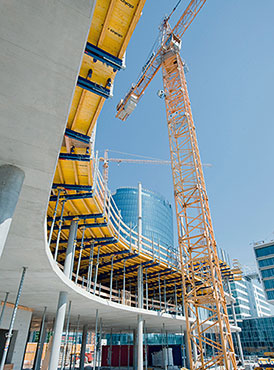

Safe­ty around floor-slab edges

  • The Dokamatic table platform is fixed directly onto the Dokamatic table, providing excellent workplace safety.
  • The fold-down railings on the Dokamatic table platform allow the Dokamatic table to be moved in under already-cast slabs, and to be shifted in one piece with the platform
  • Safe platforms with widths of up to 1.50 m

No need for ex­tra work­ing and Protection plat­forms

The Dokamatic table platforms are located directly on the work-deck level and so ensure the very highest safety. This does away with the need for extra working and protection platforms on the building – and for the time-consuming erection work that this would require.

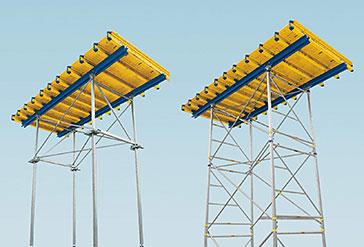

Height ad­just­ment

For slab heights of up to approx. 7.00 m, the applicational range of the Dokamatic table can be extended by 1.50 m with the Dokamatic table frame. For slab heights of over 7.00 m, the Dokamatic table can easily be combined with the Load-bearing tower Staxo 40 or the Load-bearing tower Staxo 100.

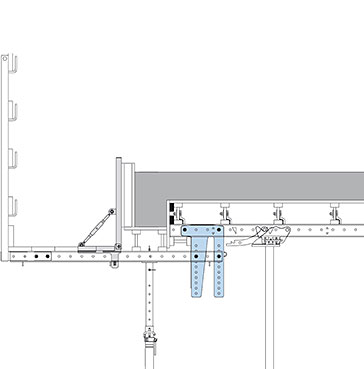

In­te­gral adap­ta­tion at slab-edges

  • Simple, fast forming of downstand beams with the Dokamatic floor beam plate, for shifting the downstand-beam formwork and the Dokamatic table in one piece
  • The floor beam plate lets you form downstand beams of up to 60 cm in height (in a 5 cm grid)

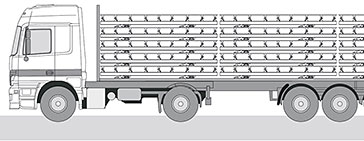

Lo­gis­tics and tran­s­port

Thanks to their compact design, the Dokamatic tables can be loaded onto a truck on top of one another in a very space-saving way, making for improved logistics and reduced shipping costs.
