In­tel­li­gent so­lu­tions for fast, safe re­po­si­tion­ing

Hor­i­zon­tal and ver­ti­cal re­po­si­tion­ing made easy

With Do­ka shift­ing ap­pliances, slab-form­ing op­er­a­tions can be ac­com­plished even faster. By mak­ing the crane un­ne­ces­sary for both the hor­i­zon­tal and ver­ti­cal re­po­si­tion­ing op­er­a­tions, they sim­pli­fy and op­ti­mise the lo­gis­tics for the en­tire site, by do­ing away with un­pro­duc­tive (mean­ing cost­ly) wait­ing times. The craneage saved here is then avai­l­able for use else­where, which ac­cel­er­ates the en­tire site work­flow. This saves on labour costs and boosts the con­trac­tors' com­pet­i­tive­ness.

Faster con­struc­tion work­flows

with in­tel­li­gent, crane-in­de­pen­dent so­lu­tions

Down­times wait­ing for the crane are now a thing of the past

  • site lo­gis­tics op­ti­mised by re­duc­ing the num­ber of cranes and the crane times

  • self-climb­ing Table Lift­ing Sys­tem works com­plete­ly in­de­pen­dent­ly and with no need for the crane

  • non-stop re­po­si­tion­ing op­er­a­tions pos­si­ble both when the TLS is stood on the ground and when it is used as a climb­ing unit sus­pend­ed from the floor-slab

Su­perla­tive safe­ty

thanks to stan­dardised safe­ty sys­tems

The safest method of work­ing, for all struc­tures

  • er­go­nom­ic, safe work­ing, from ground lev­el

  • safe ver­ti­cal re­po­si­tion­ing of ta­bles with­out crane as­sis­tance, up to wind speeds of 72 km/h

  • crew pro­tect­ed at all times by safe­ty rail­ings in place on all sides

Boost­ing ef­fi­cien­cy

with the in­no­va­tive Do­ka shift­ing ap­pliances

Fast work­ing al­ways pays, and can slash costs at your site

  • the ta­bles can be po­si­tioned quick­ly and eas­i­ly, in a few sim­ple steps

  • table ar­eas of up to 12.5 m² can be shift­ed by just one man

  • crane­less ver­ti­cal re­po­si­tion­ing of table­forms up to the next floor in on­ly 20 se­conds

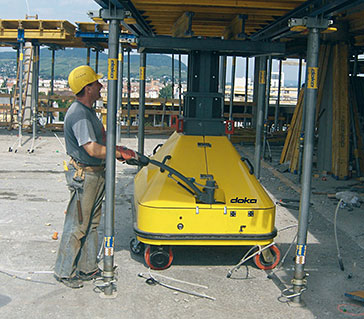

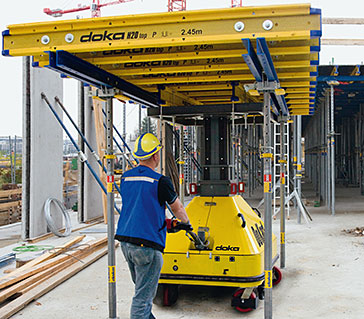

DoKart

The new DoKart is a "high-performer" whose innovative design perfectly suits it for the rough-and-tumble of everyday work on the site.

  • safe, ergonomically comfortable shifting of Doka tableforms by just one man
  • compact unit featuring high manoeuvrability for fast, easy workflows
  • high load capacity of 2000 kg
  • its big wheels, generous ground clearance and solid baseplate make it very rugged and reliable

The DoKart stands out for its great ease of operation, which ensures swift and easy workflows.

  • The DoKart's ability to move 90° sideways, and to rotate around its centreline, cuts the distances it needs to cover and makes it even easier and quicker to travel the tables.
  • Work is speeded up still further by the high lifting speed. It takes only 1 second to raise the tableform 8 cm, taking it immediately to the right height for its next time of use.

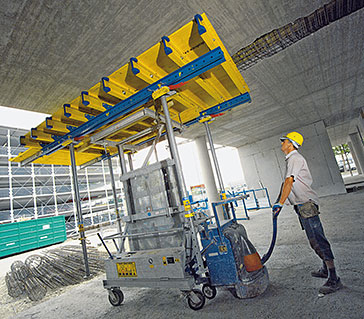

Do­ka shift­ing trol­ley with at­tach­able drive unit

  • For craneless horizontal repositioning of up to 12.5 m² of formwork, together with accessories, by only one man
  • With the Shifting trolley DF, Dokamatic tables can be hydraulically lowered and travelled, swiftly and safely. The clamp-on Attachable drive unit DF allows Dokamatic tables to be travelled with minimal effort.

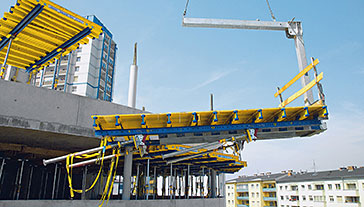

Tran­s­port fork DM 1.5t (ad­justable)

The Transport fork DM 1.5t (adjustable), with a carrying capacity of 1500 kg, is supplied to the site folded closed. The 4 different fork-width adjustments give the fork the ideal fit for any table format and usage situation. A latch-type anti-slide-off guard enables the jib to be moved in under the table without hindrance, and then ensures complete safety while the table is being lifted.

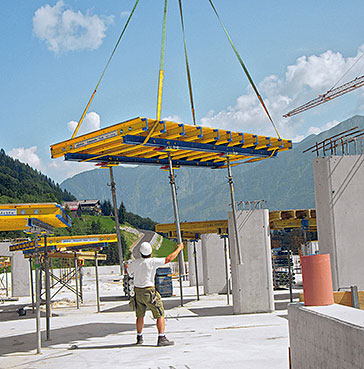

Doka­mat­ic lift­ing strap…

The Dokamatic lifting strap 13.00m can be used for hoisting tableform superstructures and ready-to-use tables. The 13 m long strap is designed so that the crew can easily and safely fix it and detach it when working from ground level.

…and load­ing plat­form

Using the Dokamatic lifting strap, the Dokamatic tables can be quickly lifted off the loading platform and up to the next level.

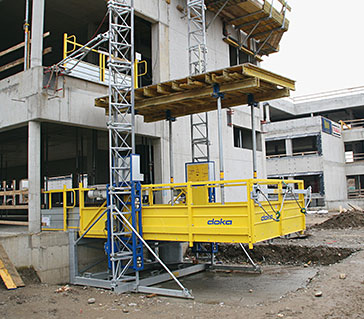

Ta­bles can be lift­ed from the first storey up­wards

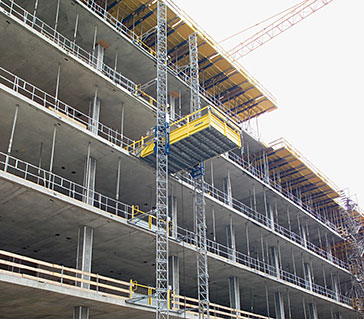

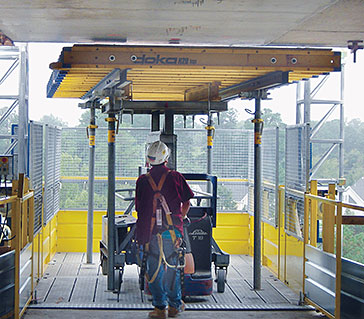

The Table Lifting System TLS sets a brand-new benchmark for craneless vertical repositioning of tableforms. It makes a major contribution towards optimising the site logistics, and is designed to provide the very highest workplace safety. The Table Lifting System TLS can also be stood on the ground, making it possible to start repositioning tables right from the very first storey.

Fast re­po­si­tion­ing, with no idle times

The Table Lifting System TLS makes possible a non-stop repositioning cycle which accelerates the entire construction sequence

  • no more time lost waiting for the crane
  • repositioning can continue even in high winds of up to 72 km/h
  • the automatic operation mode allows efficient repositioning at the push of a button.

Ex­treme­ly high safe­ty in ev­ery phase of the work

Proven site-hoist technology, with multiple safeguards, ensures the very highest safety during repositioning of the Doka tableforms.

  • TLS is installed on the structure by certified Doka formwork instructors
  • is robustly anchored to the structure
  • inward-opening landing-level safety gates and safety button on every storey
  • slip-proof, weathering-resistant platform decking for high stability

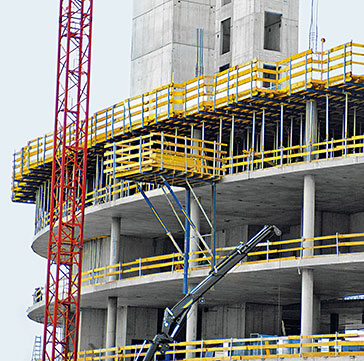

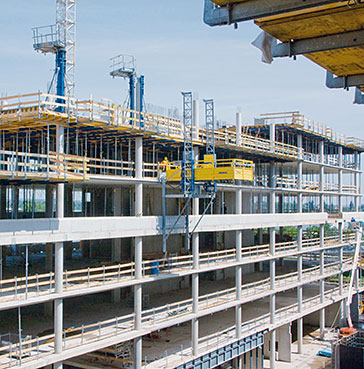

Ta­bles can be lift­ed on struc­tures of any height

Only a few simple steps are needed to modify the TLS and turn it into a climbing unit that is suspended from the floor-slab. As soon as the TLS is hung into place and fixed, you can start work right away on lifting the Dokamatic tables up to the next floor. In this way, even the tallest buildings can be formed safely and quickly, independently of both wind conditions and crane availability, using Doka tableforms.

Speeds up the con­struc­tion cy­cle

The Table Lifting System TLS saves precious crane time. This frees up the crane for other work, in turn speeding up the whole progress of construction. What is more, by making the site independent of the wind conditions, the TLS makes a double contribution towards speeding up the work. Table repositioning operations can now continue undisturbed even in windier conditions – and still in complete safety. Manpower can be deployed very efficiently, and fast construction progress achieved, with the interoperable shifting appliances. These make it possible for the tableforms to be travelled to and from the TLS quickly and easily, by just one man.

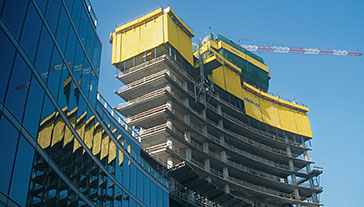

Crane-in­de­pen­dent rais­ing of the Table Lift­ing Sys­tem TLS

As well as the crane-lifted version of the TLS that is suspended from the slab, the TLS can now also be used as a self-climbed system for any height of structure. The self-climbing solution delivers even more crane-time savings and safety on the site, as the TLS can now be "jumped" 100% automatically. The self-climbing TLS is the perfect add-on to Doka tableforms and to the protection screens at the slab-edges. This equipment line-up is the ideal slab formwork system for tall structures. Alternatively, where sufficient craneage is available the TLS can also be structure-guided and raised by crane – in any weather.
