The fast, ver­satile hand-set sys­tem

No com­pro­mis­es when it comes to lay­out and con­crete fin­ish

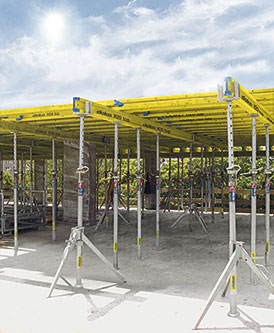

Dokaflex 1-2-4 is the fast, ver­satile floor-slab form­work for any de­sired lay­out. The quan­ti­ties can eas­i­ly be com­put­ed us­ing a slide-rule, so no de­tailed form­work plan­n­ing work is need­ed. Any type of form-fac­ing can be used, en­abling all ar­chi­tec­tu­ral wish­es re­gard­ing the con­crete sur­face to be met.

Safe and fast to set up

thanks to pre-defined sys­tem grid

With Dokaflex 1-2-4, you'll be work­ing faster and more safe­ly

  • on­ly 2 dif­fer­ent lengths of beam

  • the mark­ings on the beams make it easy to set up, with an easy-to-see safe­ty check

Adapt­a­bil­i­ty to all lay­outs

thanks to flex­i­ble grid

The flex­i­ble floor-slab form­work grid for

  • any shape of lay­out – down­s­tand beams and floor ex­ten­sions can eas­i­ly be solved "within the sys­tem"

  • per­fect adapt­a­bil­i­ty to columns and walls

  • op­ti­mis­ing for dif­fer­ent slab thick­ness

  • shor­ing fili­gree slabs

High­ly cost-ef­fi­cient

thanks to the use of long-lived sys­tem com­po­nents

De­signed for per­fect in­ter­op­er­a­bil­i­ty, the sys­tem com­po­nents give you

  • very high num­bers of re-use cy­cles

  • re­duced close-out costs

  • sim­pli­fied site lo­gis­tics

  • first-rate con­crete sur­faces

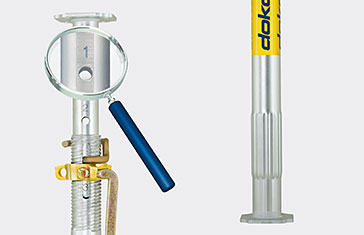

Floor prop Eu­rex top

The first-ever floor prop with an impact protector from Doka

  • unbeatably durable, due to impact protector
  • light and safe, thanks to new lightweight design
  • easy to back off, using integral quick-lowering feature
  • quick height adjustment, helped by numbered holes

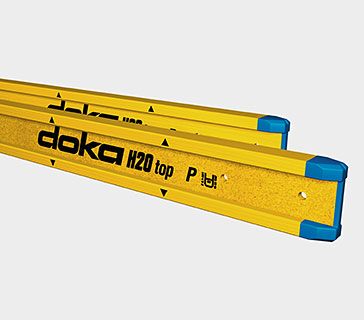

Beam H20 top

Up to 3 times the lifespan, thanks to built-in shock absorber

  • long life unmatched by any other beam, thanks to its integral shock absorber
  • fast, safe formwork set-up by referring to markings on the flanges
  • beams can be labelled – deters theft and uses the beams as an advertising vehicle
  • its innovative ends give it an innovative edge!

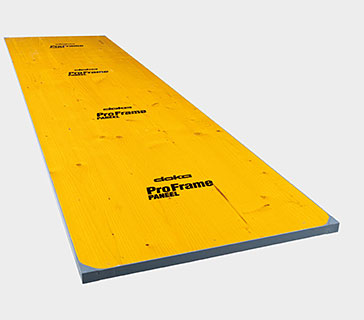

ProFrame pan­el

Newly developed frame maximises repeat-use numbers

  • cuts costs with option to either purchase or rent
  • re-use cycles maximised by the newly developed frame of the ProFrame panel, which gives special protection to the corners in the same way as a shock absorber
  • used with Doka floor-slab systems

Here's how eas­i­ly the sys­tem works

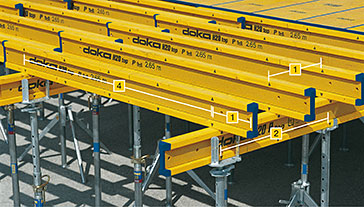

1-2-4 – these are the maximum spacings for setting-up Dokaflex 1-2-4. Triangular marks on the beams serve as a built-in "measuring tape".

  • 1 mark = maximum spacing of secondary beams
  • 2 marks = maximum spacing of props
  • 4 marks = maximum spacing of primary beams

Do­ka floor end-shut­ter clamp

This quick and easy system solution for stop-ends now provides even greater safety at the edges of floor-slabs, and greater flexibility, with a choice of different attachment methods, types of stop-end and ways of safeguarding slab edges.

A clean so­lu­tion for down­s­tand beams

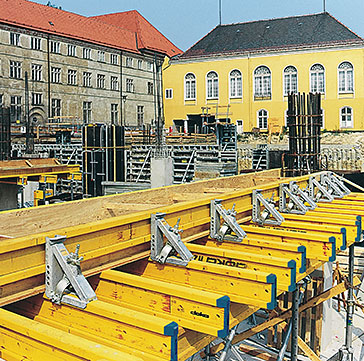

The Beam forming support 20 lets you quickly and accurately adjust the formwork for downstand beams, right down to the last millimetre. To do this, the Beam forming support is simply placed onto the secondary beams and tightened with a few blows of the hammer. This automatically pulls the side-formwork tight, for clean concrete faces.
