Load-bearing tower Staxo 40

Load-bearing tower Staxo 40

The lightweight shor­ing sys­tem for the build­ing con­struc­tion field

High load ca­pac­i­ty, com­bined with max­i­mum safe­ty

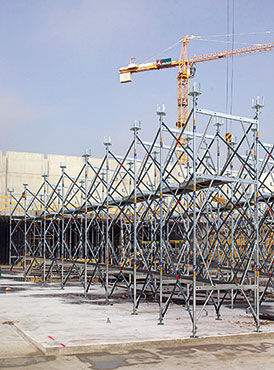

The new Load-bear­ing tow­er Stax­o 40 is light, has few­er se­parate parts, and can be trav­elled or re­lo­cat­ed re­al­ly eas­i­ly. It is ba­si­cal­ly a new gen­er­a­tion: Safe. Fast. Ef­fi­cient.

Safe

Max­i­mum safe­ty, even on great shor­ing heights

What makes it so safe

  • ga­p­less as­sem­b­ly decks with plank­ing units in­side the tow­ers and al­so be­tween the tow­ers

  • hor­i­zon­tal pre-as­sem­b­ly pos­si­ble thanks to crane-han­dling-safe con­nec­tions be­tween the frames

  • Stur­dy lad­der­ways

  • test­ed an­chor­age points for per­so­n­al fall-ar­rest equip­ment

Fast

Time sav­ings ev­ery step of the way

Staxo 40 gives you

  • high-speed as­sem­b­ly as there are on­ly a few se­parate com­po­nents, all of them very light in weight

  • er­go­nom­i­cal­ly en­gi­neered H-frames – easi­er to car­ry, quick­er to set up

  • the abil­i­ty to trav­el and lift en­tire tow­ers, in­stead of labour-in­ten­sive­ly dis­mantling them first

  • colour-cod­ed di­ag­o­n­al cross­braces so that you can quick­ly tell which length is which

Ef­fi­cient

Stax­o 40 opens up a wide range of pos­si­bil­i­ties in build­ing-con­struc­tion

What makes it so ef­fi­cient:

  • screw-jack U-heads and feet with a 75 cm ex­ten­sion range for easi­er height ad­just­ment

  • shift­ing-wheels for re­lo­cat­ing en­tire tow­ers, to fa­cil­i­tate an ef­fi­cient con­struc­tion work­flow

  • safe­ly sus­tains loads at slab-edges by means of brack­ets

  • ease of han­dling, log­i­cal as­sem­b­ly se­quence and high-speed work­ing

Media

System overview Play System overview
Standard set-up: horizontal assembly Play Standard set-up: horizontal assembly
Assembling in the upright - 1st 'storey' Play Assembling in the upright - 1st 'storey'
In the upright, using PFAS to protect against falls Play In the upright, using PFAS to protect against falls
In the upright, with 'mounted-ahead' 1.20m frames and diagonals Play In the upright, with 'mounted-ahead' 1.20m frames and diagonals
In the upright, with 'move-up' railings Play In the upright, with 'move-up' railings
Repositioning using Staxo 40 shifting wheel Play Repositioning using Staxo 40 shifting wheel
Repositioning by crane Play Repositioning by crane
Sturdy ladderways Play Sturdy ladderways
Gapless, full-area assembly decks Play Gapless, full-area assembly decks
More

Suitable services

Form­work in­struc­tors

Ver­i­fi­able stat­i­cal cal­cu­la­tions

Form­work util­i­sa­tion plans
More

References

Du­al-car­ri­age­way bridge in Ni­tra

More

Downloads

Ar­ti­cle list
Op­er­at­ing In­struc­tions
Us­er In­for­ma­tion book­let

Links

Video Free The Frame - YouTube

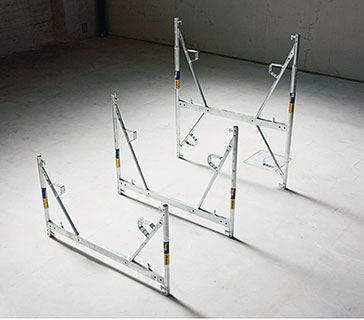

Stax­o 40 frames

  • Ergonomically shaped H-frame geometry with low dead weight for easy handling and short assembly times
  • Sturdy, galvanised H-frames with heights of 0.90 m, 1.20 m and 1.80 m for easy and cost-efficient height adjustment

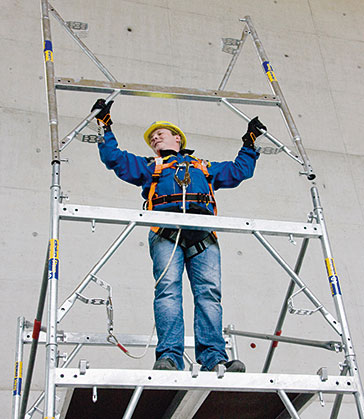

  • Defined anchorage points for personal fall arrest systems, and integrated ladderways

Di­ag­o­n­al cross­es

  • Different lengths for variable inter-frame spacing up to max. 3.00 m, in 50 cm increments
  • Are fixed to the basic frame safely and quickly by innovative gravity catches
  • Unmistakable length identification provided by colour-coded clips and embossed markings

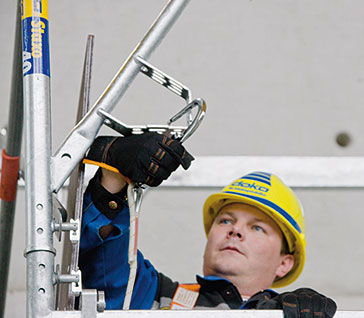

In­te­grat­ed uni­ver­sal U-brack­et

  • as an anchorage point for personal fall arrest systems (PFAS)
  • for erecting and dismantling the towers quickly and safely

Ga­p­less, full-area deck­ing

for erecting and dismantling the towerframe superstructure quickly and safely

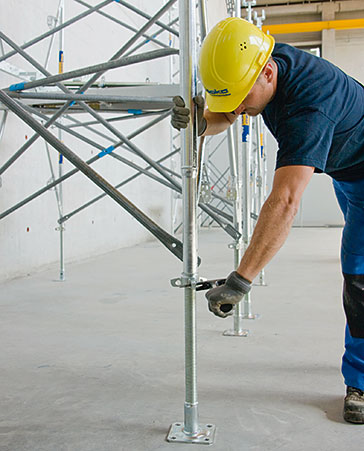

Screw-jack heads and feet

  • Extension lengths of 70 cm (at top and bottom) for maximum adaptability to changes of level and to inclinations
  • Precision adjustment, right down to the last millimetre, even when under load
  • Three-wing spindle nut makes for easy height adjustment and rapid screw-jack release
  • Easy to release, using either a formwork hammer or a reinforcement rod

De­signed for ef­fi­cient, safe erec­tion

  • its lightweight, ergonomically designed components mean that it can be erected with minimal effort, with no need for the crane
  • can be erected in the upright, with decking units and integrated ladderways for high workplace safety
  • assembly in the horizontal (for maximum workplace safety) is also possible

The unique frame­work scaf­fold­ing with pas­sage­way open­ings

for fast, safe working inside the scaffold and beneath the towerframe superstructure.

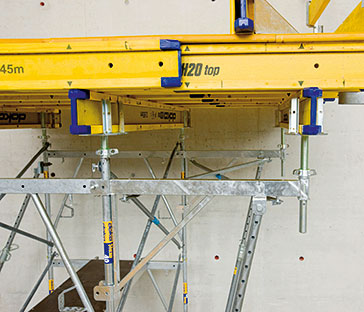

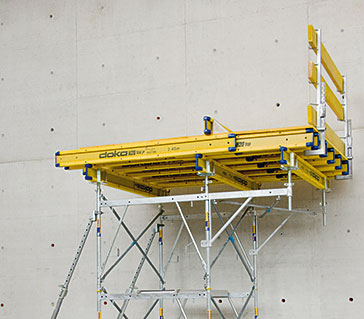

Safe work­ing at the edge of the floor-slab

by mounting platform brackets to the towerframes

Con­crete loads trans­ferred safe­ly

by the high load capacity of the bracket combined with a plumbing strut

Con­necta­bil­i­ty for scaf­fold tubes

Scaffold tubes can be connected to every frame, using standard couplers

Quick and easy to re­po­si­tion us­ing shift­ing wheels

The simple, sturdy solution for the very highest stability, with a quick-fix connection to the tower

Con­ve­nient way-in to the tow­er

for quicker access to the inside of the scaffold
