Composite formwork beams

Composite formwork beams

The new bench­mark for load-bear­ing ca­pac­i­ty

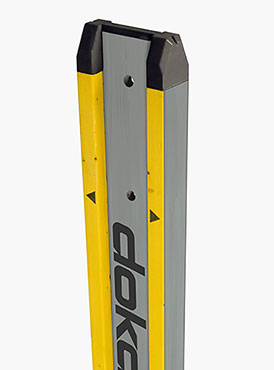

Ul­tra-high load ca­pac­i­ty has a name – I tec 20

The unique de­sign of the I tec 20 beam sets a new bench­mark for load ca­pac­i­ty, per­mitt­ing "ma­te­rials-op­ti­mised" job­site de­ploy­ment. What makes this form­work beam so ro­bust is the com­bi­na­tion of the nov­el plas­tic sheet on the flange, and the field-proven end-re­in­force­ments from the "top" beams.

Ex­treme­ly ro­bust

thanks to its in­no­va­tive de­sign

Ben­e­fit from the ad­van­tages of the in­no­va­tive I tec 20 beam

  • in­creas­es load-bear­ing ca­pac­i­ty by ap­prox. 80 %

  • ex­tra-long ser­vice life from tried-and-test­ed "top" beam-end re­in­force­ments and plas­tic sheet

  • same height and width as H20 beam

  • re­duces vol­umes of equip­ment need­ed for floor and wall form­work

  • com­pat­i­ble with other proven Do­ka sys­tems

The struc­tu­ral-de­sign fig­ures

speak for them­selves

The main per­for­mance cri­te­ria of the I tec 20 at a glance

  • Mo­ment (M) = 9 kNm

  • Shear force (Q) = 20 kN

  • Rigid­i­ty (E x I) = 640 kNm²

  • Weight (G) = 5.6 kg/lin.m
