Column formwork KS Xlife

Column formwork KS Xlife

The high-speed col­umn form­work with a fold­ing mech­anism

The quick and easy way to form qua­drat­ic and rec­tan­gu­lar columns

Wher­ev­er large num­bers of columns, with vary­ing cross-sec­tions, need to be formed on time and on bud­get.

Rapid form­ing

thanks to fold­ing mech­anism

Gives your site a speed-boost

  • as the form­work is sim­p­ly fold­ed open and shut, min­imis­ing set-up and re­mo­val times

  • as there is no need to change the form-fac­ing when ad­just­ing the cross-sec­tion any­where be­tween 20 and 60 cm, in 5 cm in­cre­ments

Re­duced close-out costs

thanks to the high-grade Xlife sheet

The plas­tic-coat­ed Xlife sheet de­liv­ers

  • very high re­peat-use num­bers and few­er changes of form-fac­ing

  • few­er places need­ing touch­ing-up, thanks to spe­cial sur­face struc­ture

  • very easy clean­ing and nai­l­a­bil­i­ty

Easy to re­po­si­tion

us­ing the shift­ing-wheels

You can re­po­si­tion the Col­umn form­work KS Xlife

  • by hand, i.e. with­out crane as­sis­tance, up to a max. form­work height of 3.60 m

  • in one crane cy­cle, thus sav­ing crane time, for heights above 3.60 m

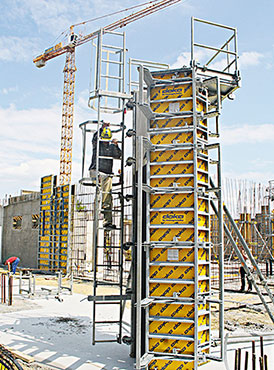

En­hanced safe­ty

through­out the en­tire op­er­a­tion

Su­perla­tive safe­ty con­di­tions on your site, thanks to

  • safe ver­ti­cal ac­cess with the Lad­der sys­tem XS

  • safe work­ing with the Do­ka col­umn form­work plat­form 150/90cm

  • the Plat­form plank­ing KS

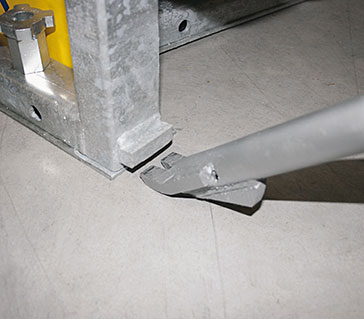

Quick to plumb and align

The positioning aid makes it possible to plumb and align the formwork easily and quickly using a nail-puller.

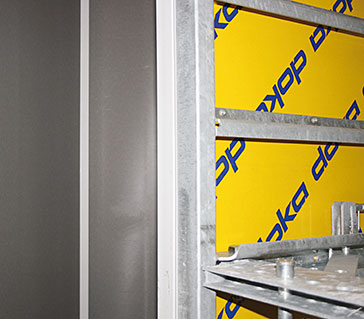

Clean edges

The frontal triangular ledge is easy to slot into place and ensures tight, clean corners.

Long-lived Xlife sheet

  • Extremely high numbers of re-use cycles with superlative concreting results, for unparalleled cost efficiency and fewer changes of form-facing
  • No burst-off plywood chips, and less water absorbed through nail-holes, for longer service life
  • Special surface structure for less touching-up and reduced close-out costs
  • Timber-plastic composite sheet that can also be cleaned using a high-pressure washer

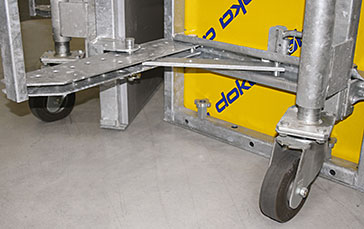

Crane­less re­po­si­tion­ing

When shifting wheels are attached, Column formwork KS units with heights of up to 3.60 m can be wheeled and repositioned on the same level. The four Shifting wheels KS per column are easy to clamp onto the formwork and save a great deal of crane time when manually repositioning the units in the horizontal.

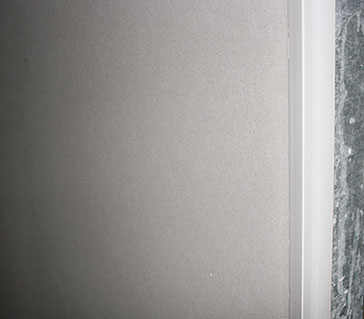

Im­print-free con­crete fin­ish

The form-ply is screwed-on from the rear, ensuring fair-faced concrete quality that is free of screw-head imprints.
