The crane-in­de­pen­dent variant of Fra­max Xlife

Form eco­nom­i­cal­ly with no need for a crane

With its low weight, Alu-Fra­max Xlife brings all the ben­e­fits of Fra­max Xlife framed form­work to crane­less job­sites as well – al­so seam­less­ly com­bined with Fra­max Xlife, of course.

Ex­tra light and su­per-strong

with tor­sion-proof hol­low alu­mini­um pro­files

Framed form­work Alu-Fra­max Xlife

  • de­liv­ers flat, plane con­crete faces thanks to its stur­dy alu­mini­um frames

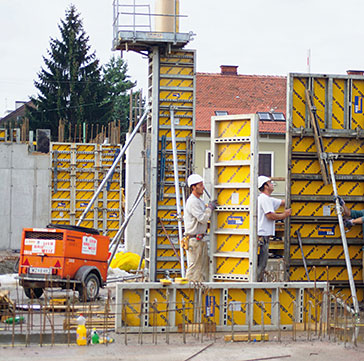

  • can be re­po­si­tioned quick­ly, with or with­out crane as­sis­tance

Re­duced close-out costs

thanks to su­pe­ri­or prod­uct qual­i­ty

Ex­treme­ly long ser­vice life is en­sured by

  • the plas­tic-coat­ed Xlife sheet

  • the rugged, pow­der-coat­ed alu­mini­um frame

Easy han­dling and plan­n­ing

thanks to the log­i­cal sys­tem-grid

The 15 cm grid, with on­ly 5 dif­fer­ent widths of pan­el, re­sults in

  • op­ti­mum adapt­a­bil­i­ty to ev­ery lay­out

  • easy plan­n­ing and lo­gis­tics

  • a neat joint pat­tern

Alu-Fra­max Xlife and Fra­max Xlife are ful­ly com­pat­i­ble

All ac­ces­sories fit both sys­tems

Op­ti­mise your site

  • by di­vid­ing it up in­to man-han­dled and crane-han­dled zones

  • with sim­pli­fied site lo­gis­tics

High safe­ty

for your site

The ac­ci­dent risk is re­duced, and le­gal­ly com­pliant work­ing con­di­tions are en­sured, by

  • the safe lad­der­ways of the Lad­der sys­tem XS

  • com­bin­ing the form­work with the Plat­form sys­tem Xsafe

Media

System overview Monotec single-side tie Play System overview Monotec single-side tie
Monotec - standard utilisation Play Monotec - standard utilisation
Length adjustment using fillers - Monotec single-side tie Play Length adjustment using fillers - Monotec single-side tie
Time comparison - Monotec single-side tie Play Time comparison - Monotec single-side tie
More

References

Du­al-car­ri­age­way bridge in Ni­tra

Busi­ness Tow­er Nürn­berg

Berg Isel Ski-Jump

More

Downloads

Ar­ti­cle list
Us­er In­for­ma­tion book­let

Alu-Fra­max Xlife

  • Ingeniously co-ordinated panel formats for maximising utilisation of the formwork

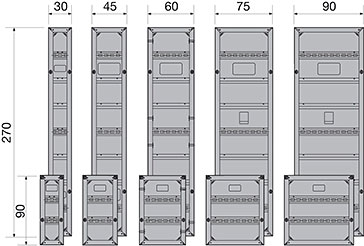

  • 15 cm grid, with only five widths and two heights, simplifies planning, forming and logistics on the site

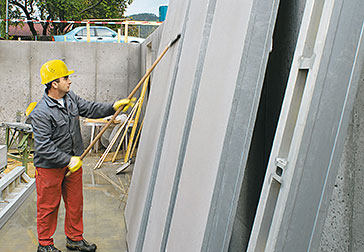

  • The high-grade powder-coating on the Alu-Framax Xlife panels reliably prevents concrete adhesion

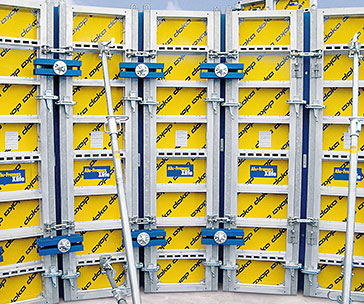

  • Integrated waling system: the connection profiles make it easy to attach accessories – with no obligatory fixing points

Fra­max Xlife sheet

  • Extremely high numbers of re-use cycles with superlative concreting results, for unparalleled cost efficiency and fewer changes of form-facing
  • No burst-off plywood chips, and less water absorbed through nail-holes, for longer service life
  • Special surface structure for less touching-up and reduced close-out costs
  • Timber-plastic composite sheet that can also be cleaned using a high-pressure washer

Alu-Fra­max pal­lets

The practical Alu-Framax pallets make light work of offloading the panels at the site.

Fra­max cir­cu­lar form­ing plate

By combining Framax circular forming plates and Alu-Framax Xlife panels, it is possible to form polygonal curves.

Com­bin­ing with Fra­max Xlife

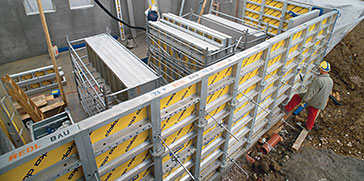

Combining Framax Xlife with Alu-Framax Xlife makes it possible to divide up the site into crane-handled and man-handled zones, making for more flexible logistics and a faster workflow on the site.

Uni­ver­sal pan­el

The Alu-Framax Xlife system also has a universal panel: with a width of 75 cm, this is ideal for columns, stop-ends and corners.
