Supporting construction frame

Supporting construction frame

Unique in al­low­ing cont­in­u­ous height ad­just­ment up to 12.80 m

The safe way to form sin­gle-sid­ed walls

"Sup­port­ing con­struc­tion frames" en­able the con­cret­ing forces to be safe­ly trans­ferred by way of di­ag­o­n­al an­chors in cas­es where it is not pos­si­ble to tie tim­ber-beam el­e­ments or framed form­work pan­els through the con­crete.

Ad­justable down to the last cm

ide­al for the top-cov­er method

The 'Sup­port­ing con­struc­tion frame' per­mits cont­in­u­ous height ad­just­ment, thanks to its

  • prac­ti­cal at­tach­able frame

  • fa­cil­i­ty for com­bin­ing the 'Vari­a­bel' and 'Uni­ver­sal F' sup­port­ing con­struc­tion frames

Time and cost sav­ings

from high-speed re­po­si­tion­ing

The right re­po­si­tion­ing so­lu­tion in ev­ery case

  • by crane

  • by roller-gear unit

En­hanced safe­ty

thanks to its un­ri­valled range of ac­ces­sories

Even greater safe­ty, thanks to stan­dardised so­lu­tions

  • con­crete forces are safe­ly trans­ferred

  • ready-to-use plat­form so­lu­tions for all heights

  • safe ver­ti­cal ac­cess routes for work in­side the con­struc­tion

Sup­port­ing con­struc­tion frame Uni­ver­sal F

  • For pour heights of up to 12.80 m
  • Flexible height adjustment
  • Tall units can be wheeled
  • Vertical stacking is easy and fast
  • Rapid adaptation to any unevenness in the ground
  • Pre-mounted bracing-tube couplers
  • Comprehensive safety accessories

"Vari­a­bel" sup­port­ing con­struc­tion frame

  • Assembled from standard steel walings and add-on components
  • Easy to brace with scaffold tubes
  • Can be set up and moved by hand
  • Maximum pour-height 4 m

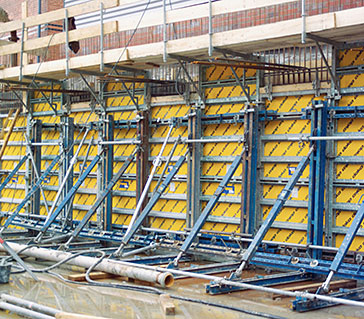

Sin­gle-sid­ed walls in a sin­gle pour

Combining extra-large Framax Xlife panels with the Supporting construction frame Universal F makes it possible to pour even very high walls in one continuous operation.

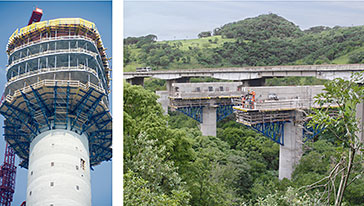

Cus­tom ap­pli­ca­tions

Positioned in the horizontal and anchored to the structure, Supporting construction frames can be used to make heavy-duty platforms for formwork assignments at lofty heights.

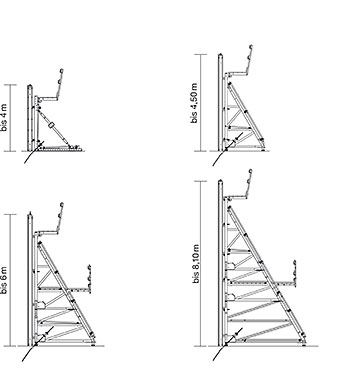

Vari­able ver­ti­cal stack­ing con­fig­u­ra­tions

  • Standard steel walings and add-on components are combined to assemble "Supporting construction frames Variabel" for heights of up to 4.00 m
  • Pour-heights of up to 4.50 m are possible with Supporting construction frames Universal F 4.50m
  • Pour-heights of up to 6.00 m are possible by adding an Attachable frame F 1.50m
  • Pour-heights of up to 8.10 m are possible by adding an Attachable frame F 1.50m or an Attachable frame F 2.00m

Wall heights above 10 m

  • For walls of up to 10.40 m in height, the Supporting construction frame F can be stacked on top of an Attachable frame F 2.40m.
  • With two Attachable frames F 2.40m, pour heights of up to 12.80 m are possible.
