Circular formwork H20

The prac­ti­cal cir­cu­lar form­work for ex­act curves

The easy way to form per­fect curves

Cir­cu­lar form­work H20 is a prac­ti­cal cir­cu­lar form­work sys­tem that de­liv­ers smooth, curved walls from radii of 3.50 m up­ward – ste­p­less­ly.

High­ly cost-ef­fi­cient

right from the very first time of use

The sys­tem re­duces the ren­tal and wage costs at your site by

  • on­ly need­ing a small num­ber of form-ties – just one form-tie per 1.5 m²

  • low on-site form­work quan­ti­ties, as it adapts ef­fort­less­ly to any lay­out

  • the pre-as­sem­bled el­e­ments are quick­ly readied for use by sett­ing the de­sired ra­dius with the ad­just­ing spin­dles

Radii can be cont­in­u­ous­ly ad­just­ed

sim­p­ly by turn­ing spin­dles

Cir­cu­lar form­work H20 stands out for great flex­i­bil­i­ty, thanks to its

  • prac­ti­cal height grid

  • ex­act curves from a ra­dius of 3.50 m up­ward

  • flex­i­ble, heavy-du­ty Doka­plex 21 mm form-ply

Rapid work­ing

and ease of han­dling

Ef­fi­cient con­struc­tion work­flow, as

  • there is on­ly one con­nect­ing de­vice (Ad­justable clamp 10cm)

  • the sys­tem can eas­i­ly be com­bined with Fra­max, Alu-Fra­max and Col­umn form­work RS

  • sett­ing the radii is easy – sim­p­ly by turn­ing spin­dles

  • radii are easy to check, us­ing flex­i­ble tem­plates

The practical height grid and the systematic spacing of the form-ties make it possible to form widely differing height-combinations quickly and easily.

Cont­in­u­ous­ly ad­justable

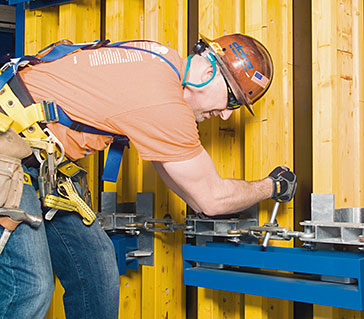

The circular formwork elements are easy to adjust – steplessly – with reference to a flexible template.

Easy to com­bine

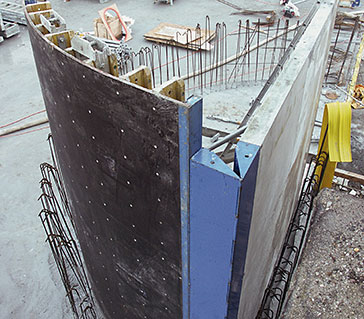

A special end-profile makes it easy to connect the system to other Doka formwork systems such as Framed formwork Framax Xlife or Column formwork RS.

Op­ti­mum el­e­ment size-grid

  • Only two widths of panel (inside element 2.40 m, outside element 2.50 m) for all radii down to 3.50 m
  • Practical height grid with 5 different heights of panel

Radii down to 3.50 m

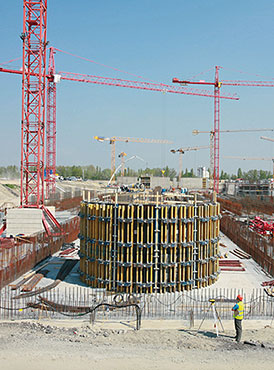

The site-ready, pre-assembled elements (one each for the inside and outside formwork) can be continuously adjusted with reference to a flexible template, to set radii of down to 3.50 m.

Radii down to 2.50 m

Even very tight radii of between 3.50 m and 2.50 m are possible, and must be planned separately.

Easy to adapt

Circular formwork H20 easy to adapt to different radii, simply by turning the spindles – for a smooth construction workflow.
