Large-area formwork Top 100 tec

Large-area formwork Top 100 tec

The su­per-strong tim­ber-beam form­work for max­i­mum cost-ef­fi­cien­cy

The fair-faced con­crete form­work for any re­quire­ment

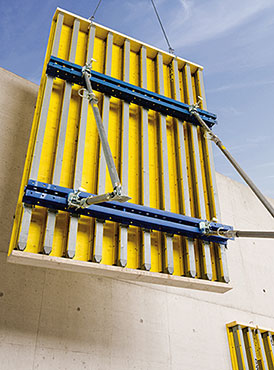

Based on the nov­el, heavy-du­ty Beam I tec 20, the new Large-area form­work Top 100 tec sys­tem is the ide­al so­lu­tion for si­t­u­a­tions re­quir­ing ab­so­lute di­men­sio­n­al ac­cu­ra­cy, de­spite high con­crete pres­sures and wide­ly spaced form-ties. The shape, size, tie-hole pat­tern and form-fac­ing of the el­e­ments can now be adapt­ed bet­ter than ev­er to suit any re­quire­ment.

The su­per-strong tim­ber-beam form­work

with the nov­el heavy-du­ty Beam I tec 20

Large-area form­work Top 100 tec is ide­al for

  • high con­crete pres­sures

  • wide­ly spaced form-ties

  • min­i­mal de­flec­tion

  • new con­crete for­mu­la­tions

Rapid form­ing

made pos­si­ble by op­ti­mum adapt­a­bil­i­ty to shape, size and con­crete pres­sure

Out­s­tand­ing­ly good form­ing-times, thanks to

  • per­fect adapt­a­bil­i­ty to all re­quire­ments (shape, size, con­crete pres­sure)

  • ex­cep­tio­n­al­ly low num­ber of form-ties

  • sim­ple in­ter-el­e­ment con­nec­tions

  • large-area shift­ing units

  • fast as­sem­b­ly, ei­ther on-site or – for even greater con­ve­nience – by the Do­ka Ready-to-Use Ser­vice

Ide­al for fair-faced con­crete

be­cause it is di­men­sio­n­al­ly sta­ble and can use any type of form-fac­ing

Large-area form­work Top 100 tec en­sures a clean con­crete fin­ish, thanks to fea­tures like

  • the sta­ble Beam I tec 20, for min­i­mal de­flec­tion

  • form-fac­ing is screwed on from the rear, leav­ing no screw-head im­prints

  • cont­in­u­ous adapt­a­bil­i­ty to the de­sired form-tie pat­tern

  • any type of form-fac­ing can be used

  • pro­fes­sio­n­al pre-as­sem­b­ly by the Do­ka Ready-to-Use Ser­vice

Ex­treme­ly high safe­ty

as it is easy to com­bine with Do­ka safe­ty sys­tems

Safe work­ing con­di­tions are en­sured by

  • ready-to-use plat­form sys­tems

  • in­te­grable lad­der­ways

  • op­ti­mised el­e­ment struts
