Stop-end formwork
There are 3 ways of making up stop ends (for wall thicknesses up to 60 cm):
▪ Adjustable clamp 10cm
▪ Framax stop-end tie
▪ Framax multi function clamp
|
Adjustable clamp 10cm: Perm. tensile force: 10.0 kN |
|
Framax stop-end tie: Perm. tensile force: 15.0 kN |
|
Framax multi function clamp: Perm. tensile force: 15.0 kN |
Number of connectors required
|
Wall thickness |
Number of connectors |
|
|---|---|---|
|
Adjustable |
Framax stop-end tie / |
|
|
25 cm |
0.75 pcs./m |
0.5 pcs./m |
|
34 cm |
1 pcs./m |
0.68 pcs./m |
|
40 cm |
1.2 pcs./m |
0.8 pcs./m |
|
50 cm |
1.5 pcs./m |
1 pcs./m |
|
60 cm |
1.8 pcs./m |
1.2 pcs./m |
Example:
▪ Wall thickness: 40 cm
▪ Panel height: 2.40 m
▪ Adjustable clamp 10cm
Number of connectors: 6 pcs./stop end
|
|
NOTICE ▪ Permissible load of stop end: max. 18.0 kN/m at the profiles of the circular formwork elements. ▪ If wall thickness is greater than 60 cm provide additional support for the stop end (e.g. with supporting construction frames). |

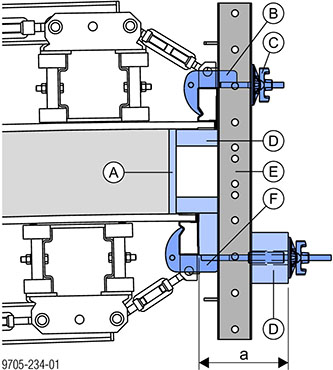

Example: Stop end with Framax stop-end tie
a ... min. 250 mm
|
A Formwork sheet |
|
B Framax stop-end tie |
|
C Super plate 15.0 |
|
D Spacer |
|
E Multi-purpose waling WS10 Top50 |
|
F Framax stop-end tie (with extension) |
.
