Component overview
[kg]
Article N°

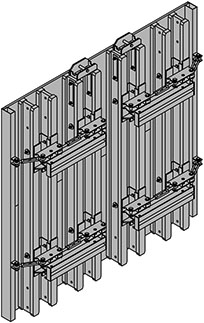

Circular formwork element H20 2.40x0.70m ( 195.0 kg | 587820000 )
Circular formwork element H20 2.40x1.20m ( 244.0 kg | 587821000 )
Circular formwork element H20 2.40x2.40m ( 472.0 kg | 587822000 )
Circular formwork element H20 2.40x3.00m ( 523.0 kg | 587813000 )
Circular formwork element H20 2.40x3.60m ( 699.0 kg | 587823000 )
Circular formwork element H20 2.40x4.80m ( 934.0 kg | 587824000 )
Rundschalungselement H20 2,40m
|
|
|

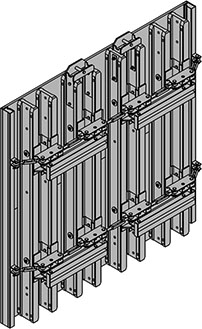

Circular formwork element H20 2.50x0.70m ( 197.0 kg | 587825000 )
Circular formwork element H20 2.50x1.20m ( 249.0 kg | 587826000 )
Circular formwork element H20 2.50x2.40m ( 480.0 kg | 587827000 )
Circular formwork element H20 2.50x3.00m ( 534.0 kg | 587814000 )
Circular formwork element H20 2.50x3.60m ( 716.0 kg | 587828000 )
Circular formwork element H20 2.50x4.80m ( 942.0 kg | 587829000 )
Rundschalungselement H20 2,50m
|
|
|
Stacking plate for circular formwork H20 ( 7.0 kg | 587830000 )
Aufstocklasche für Rundschalung H20
|
Galvanised Height: 62 cm |
|
Adjustable clamp 10cm ( 3.7 kg | 587808000 )
Ausgleichsspanner 10cm
|
Galvanised Length: 30 cm |
|
Framax stop-end tie ( 1.5 kg | 588143000 )
Framax-Stirnanker
|
Galvanised Length: 29 cm |
|
Framax multi function clamp ( 5.8 kg | 588169000 )
Framax-Uni-Spanner
|
Galvanised Length: 40 cm |
|
Wrench for circular formwork H20 ( 0.70 kg | 587807000 )
Schlüssel für Rundschalung H20
|
Galvanised Length: 27 cm |
|
Template f. circular formw. H20 ...../.....mm ( 6.5 kg | 177020000 )
Schablone für Rundschalung H20 ...../.....mm
|
|
Weight per m² Project-specific! |
|
Panel strut 340 IB ( 24.3 kg | 580365000 )
Elementstütze 340 IB
consisting of:
(A)Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Galvanised
Length: 190.8 - 341.8 cm
(B)Adjusting strut 120 IB ( 7.6 kg | 588248500 )
Galvanised
Length: 81.5 - 130.6 cm
|
Galvanised Delivery condition: folded closed |
|
Panel strut 540 IB ( 41.4 kg | 580366000 )
Elementstütze 540 IB
consisting of:
(A)Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Galvanised
Length: 310.5 - 549.2 cm
(B)Adjusting strut 220 IB ( 10.9 kg | 588251500 )
Galvanised
Length: 172.5 - 221.1 cm
|
Galvanised Delivery condition: folded closed |
|

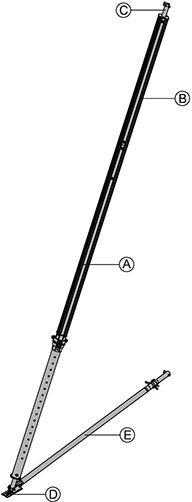

Eurex 60 550
depending on length, comprising:
(A)Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Powder-coated blue
Aluminium
Length: 343 - 553 cm
(B)Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Powder-coated blue
Aluminium
Length: 250 cm
(C)Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Galvanised
Length: 15 cm
Width: 15 cm
Height: 30 cm
(D)Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Galvanised
Length: 31 cm
Width: 12 cm
Height: 33 cm
(E)Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Galvanised
Length: 303.5 - 542.2 cm
|
Delivery condition: separate parts |
|
Prop head RD EB ( 1.9 kg | 587806000 )
Stützenkopf RD EB
|
Galvanised Length: 19 cm Width: 8 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Universal bracket 90 ( 30.4 kg | 580476000 )
Universal-Konsole 90
|
Galvanised Length: 121 cm Height: 235 cm |
|
Top scaffold bracket L ( 12.6 kg | 587153500 )
Betonierkonsole L
|
Galvanised Length: 101 cm Height: 159 cm |
|
Top scaffold bracket L painted ( 12.0 kg | 587153000 )
Betonierkonsole L lackiert
|
Painted blue Length: 101 cm Height: 159 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Scaffold tube connection ( 0.27 kg | 584375000 )
Gerüstrohranschluss
|
Galvanised Height: 7 cm |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Doka 4-part chain 3.20m ( 15.0 kg | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Framax fitting timber 2x12cm 2.70m ( 3.1 kg | 176020000 )
Framax fitting timber 3x12cm 2.70m ( 4.7 kg | 176022000 )
Framax fitting timber 5x12cm 2.70m ( 7.8 kg | 176024000 )
Framax fitting timber 10x12cm 2.70m ( 15.5 kg | 176026000 )
Framax-Passholz 2,70m
|
Varnished yellow |
|
Reversible ratchet 1/2" ( 0.73 kg | 580580000 )
Umschaltknarre 1/2"
|
Galvanised Length: 30 cm |
|
Box nut 24 1/2" ( 0.12 kg | 580584000 )
Stecknuss 24 1/2"
|
|
|
Ladder system XS
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
Framax quick acting clamp RU ( 3.3 kg | 588153400 )
Framax-Schnellspanner RU
|
Galvanised Length: 20 cm |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Securing barrier XS ( 4.9 kg | 588669000 )
Sicherungsschranke XS
|
Galvanised Length: 80 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Ladder cage exit XS ( 17.0 kg | 588666000 )
Rückenschutz-Ausstieg XS
|
Galvanised Height: 132 cm |
|
Tie rod system 15.0
Tie rod 15.0mm galvanised 0.50m ( 0.72 kg | 581821000 )
Tie rod 15.0mm galvanised 0.75m ( 1.1 kg | 581822000 )
Tie rod 15.0mm galvanised 1.00m ( 1.4 kg | 581823000 )
Tie rod 15.0mm galvanised 1.25m ( 1.8 kg | 581826000 )
Tie rod 15.0mm galvanised 1.50m ( 2.2 kg | 581827000 )
Tie rod 15.0mm galvanised 1.75m ( 2.5 kg | 581828000 )
Tie rod 15.0mm galvanised 2.00m ( 2.9 kg | 581829000 )
Tie rod 15.0mm galvanised 2.50m ( 3.6 kg | 581852000 )
Tie rod 15.0mm galvanised .....m ( 1.4 kg | 581824000 )
Tie rod 15.0mm non-treated 0.50m ( 0.73 kg | 581870000 )
Tie rod 15.0mm non-treated 0.75m ( 1.1 kg | 581871000 )
Tie rod 15.0mm non-treated 1.00m ( 1.4 kg | 581874000 )
Tie rod 15.0mm non-treated 1.25m ( 1.8 kg | 581886000 )
Tie rod 15.0mm non-treated 1.50m ( 2.1 kg | 581876000 )
Tie rod 15.0mm non-treated 1.75m ( 2.5 kg | 581887000 )
Tie rod 15.0mm non-treated 2.00m ( 2.9 kg | 581875000 )
Tie rod 15.0mm non-treated 2.50m ( 3.6 kg | 581877000 )
Tie rod 15.0mm non-treated 3.00m ( 4.3 kg | 581878000 )
Tie rod 15.0mm non-treated 3.50m ( 5.0 kg | 581888000 )
Tie rod 15.0mm non-treated 4.00m ( 5.7 kg | 581879000 )
Tie rod 15.0mm non-treated 5.00m ( 7.2 kg | 581880000 )
Tie rod 15.0mm non-treated 6.00m ( 8.6 kg | 581881000 )
Tie rod 15.0mm non-treated 7.50m ( 10.7 kg | 581882000 )
Tie rod 15.0mm non-treated .....m ( 1.4 kg | 581873000 )
Ankerstab 15,0mm
|
|
|
Super plate 15.0 ( 1.1 kg | 581966000 )
Superplatte 15,0
|
Galvanised Height: 6 cm Diameter: 12 cm Width-across: 27 mm |
|
Plastic tube 22mm 2.50m ( 0.45 kg | 581951000 )
Kunststoffrohr 22mm 2,50m
|
PVC Grey Diameter: 2.6 cm |
|
Universal cone 22mm ( 0.005 kg | 581995000 )
Universal-Konus 22mm
|
Grey Diameter: 4 cm |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Tie-rod wrench 15.0/20.0 ( 1.9 kg | 580594000 )
Ankerstabschlüssel 15,0/20,0
|
Galvanised Length: 37 cm Diameter: 8 cm |
|
Friction type ratchet SW27 ( 0.49 kg | 581855000 )
Freilaufknarre SW27
|
Manganese-phosphated Length: 30 cm |
|
Box spanner 27 0.65m ( 1.9 kg | 581854000 )
Steckschlüssel 27 0,65m
|
Galvanised |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
