System grid
The 2.40m wide elements are used for the inside formwork, and the 2.50m wide ones for the outside formwork. This speeds up work by making it easy to see which element belongs where.
.

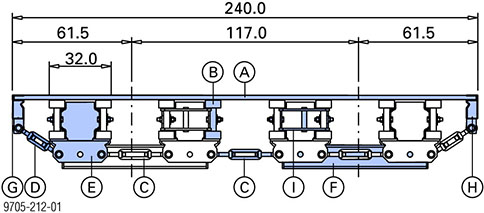

Circular formwork element H20 2.40m (for inside use)
|
A Dokaplex 21mm |
|
B Doka beam H20 |
|
C Turnbuckle C |
|
D Turnbuckle D |
|
E Timber-beam seat 24cm |
|
F Steel waling RD 0.75m |
|
G Connecting profile (left) |
|
H Connecting profile (right) |
|
I Lifting-bracket |
.

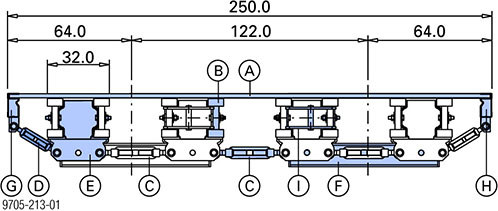

Circular formwork element H20 2.50m (for outside use)
|
A Dokaplex 21mm |
|
B Doka beam H20 |
|
C Turnbuckle A |
|
D Turnbuckle C |
|
E Timber-beam seat 24cm |
|
F Steel waling RD 0.75m |
|
G Connecting profile (left) |
|
H Connecting profile (right) |
|
I Lifting-bracket |
.
