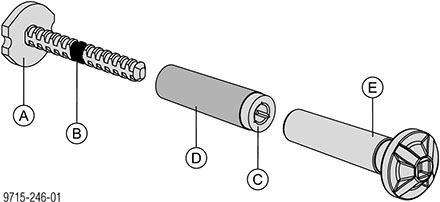

Positioning point and suspension point
|
A Stop anchor 15.0 (expendable anchoring component) |
|
B Depth mark |
|
C Positioning cone 15.0 5cm |
|
D Sealing sleeve 15.0 5cm (expendable anchoring component) |
|
E Suspension cone 15.0 5cm |
▪ Stop anchor
- Expendable anchoring component for anchoring the Suspension cone (and thus the climbing unit) in the concrete from one side.
▪ Positioning cone
- Placeholder for the Suspension cone on the positioning point.
▪ Suspension cone
- For safe suspension-mounting of the climbing unit.
.
