Artikelliste

[kg]

Art.-Nr.

Doka-Faltbühne K 3,00m   ( 291,5 kg | 580442000 )

Doka-Faltbühne K 4,50m   ( 444,5 kg | 580443000 )

Doka folding platform K

Faltkonsole K   ( 52,4 kg | 580441000 )

Folding bracket K

Bügelkopf K-ES   ( 3,9 kg | 580444000 )

Bow head K-ES

Doka-Faltbühne K Außenecke   ( 442,0 kg | 580424000 )

Doka folding platform K outside corner

Doka-Faltbühne K Innenecke   ( 283,0 kg | 580413000 )

Doka folding platform K inside corner

Ausgleichsbühne 3,00m   ( 153,5 kg | 580485000 )

Closure platform 3.00m

Hängebühne 120 3,30m   ( 44,0 kg | 580411000 )

Hängebühne 120 4,30m   ( 52,6 kg | 580412000 )

Suspended platform 120

Stützträger   ( 28,5 kg | 580414000 )

Support girder

Druckprofil   ( 4,9 kg | 580417000 )

Bearing profile

Stützstab   ( 32,9 kg | 580416000 )

Strut

Horizontalstrebe d2 175   ( 2,7 kg | 582733000 )

Horizontal brace d2 175

Horizontale 1,35m   ( 2,1 kg | 580422000 )

Horizontal strut 1.35m

Gerüstrohr 48,3mm 0,50m   ( 1,7 kg | 682026000 )

Gerüstrohr 48,3mm 1,00m   ( 3,6 kg | 682014000 )

Gerüstrohr 48,3mm 1,50m   ( 5,4 kg | 682015000 )

Gerüstrohr 48,3mm 2,00m   ( 7,2 kg | 682016000 )

Gerüstrohr 48,3mm 2,50m   ( 9,0 kg | 682017000 )

Gerüstrohr 48,3mm 3,00m   ( 10,8 kg | 682018000 )

Gerüstrohr 48,3mm 3,50m   ( 12,6 kg | 682019000 )

Gerüstrohr 48,3mm 4,00m   ( 14,4 kg | 682021000 )

Gerüstrohr 48,3mm 4,50m   ( 16,2 kg | 682022000 )

Gerüstrohr 48,3mm 5,00m   ( 18,0 kg | 682023000 )

Gerüstrohr 48,3mm 5,50m   ( 19,8 kg | 682024000 )

Gerüstrohr 48,3mm 6,00m   ( 21,6 kg | 682025000 )

Gerüstrohr 48,3mm .....m   ( 3,6 kg | 682001000 )

Scaffold tube 48.3mm

Anschraubkupplung 48mm 50   ( 0,84 kg | 682002000 )

Screw-on coupler 48mm 50

Drehkupplung 48mm   ( 1,5 kg | 582560000 )

Swivel coupler 48mm

Mehrzweckriegel WS10 Top50 3,50m   ( 68,4 kg | 580012000 )

Multi-purpose waling WS10 Top50 3.50m

Steckbolzen D16/112   ( 0,29 kg | 500403330 )

Pin D16/112

Kommerzklappstecker 6x42 St verz.   ( 0,03 kg | 020401 )

Linch pin 6x42 St galv.

Fassaden-Fertigteilklemme V   ( 8,1 kg | 580694000 )

Facade precast member clamp V

Geländerverlängerung K   ( 4,9 kg | 580447000 )

Handrail extension K

Geländersteher XP 1,20m   ( 4,1 kg | 586460000 )

Handrail post XP 1.20m

Fußwehrhalter XP 1,20m   ( 0,64 kg | 586461000 )

Toeboard holder XP 1.20m

Geländerzwinge XP 40cm   ( 7,7 kg | 586456000 )

Railing clamp XP 40cm

Schutzgeländerzwinge S   ( 11,5 kg | 580470000 )

Handrail clamp S

Schutzgeländerzwinge T   ( 12,3 kg | 584381000 )

Handrail clamp T

Schutzgeländer 1,10m   ( 5,5 kg | 584384000 )

Handrail post 1.10m

Steckhülse 24mm   ( 0,03 kg | 584385000 )

Attachable sleeve 24mm

Schraubhülse 20,0   ( 0,03 kg | 584386000 )

Screw sleeve 20.0

Seitenschutzgeländer T   ( 29,1 kg | 580488000 )

Side handrail clamping unit T

Universal-Geländerbügel   ( 3,0 kg | 580478000 )

Universal railing shackle

Doka-Vierstrangkette 3,20m   ( 15,0 kg | 588620000 )

Doka 4-part chain 3.20m

Umsetzgabel K/M plus   ( 226,0 kg | 583025000 )

Transport fork K/M plus

Bühnen-Umsetzgabel K/M   ( 194,0 kg | 580492000 )

Platform transport fork K/M

Sternschraube   ( 0,75 kg | 580425000 )

Star screw

Aufhängeblech AK   ( 8,3 kg | 580494000 )

Suspension plate AK

Einhängeschlaufe ES   ( 1,0 kg | 580458000 )

Suspension loop ES

Aufhängeprofil AK   ( 14,8 kg | 580595000 )

Suspension profile AK

Aufhängeprofil ES   ( 15,3 kg | 580596000 )

Suspension profile ES

Aufhängeblech ES   ( 9,2 kg | 580493000 )

Suspension plate ES

Gurtschnellverschluss 55cm   ( 0,07 kg | 580787000 )

Quick-locking strap 55cm

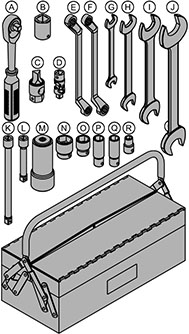

Universal-Werkzeugbox 15,0   ( 8,4 kg | 580392000 )

Universal tool box 15.0

Im Lieferumfang enthalten:

(A)Umschaltknarre 1/2"   ( 0,73 kg | 580580000 )

verzinkt

(B)Vierkantnuss 22   ( 0,31 kg | 580589000 )

(C)Vorlaufschlüssel 15,0 DK   ( 0,30 kg | 580579000 )

verzinkt

Länge: 8 cm

Schlüsselweite: 30 mm

(D)Kardangelenk 1/2"   ( 0,16 kg | 580583000 )

(E)Ringschlüssel 16/18   ( 0,23 kg | 580644000 )

(F)Ringschlüssel 17/19   ( 0,27 kg | 580590000 )

(G)Gabelschlüssel 13/17   ( 0,08 kg | 580577000 )

(H)Gabelschlüssel 22/24   ( 0,22 kg | 580587000 )

(I)Gabelschlüssel 30/32   ( 0,80 kg | 580897000 )

(J)Gabelschlüssel 36/41   ( 1,0 kg | 580586000 )

(K)Verlängerung 22cm 1/2"   ( 0,31 kg | 580582000 )

(L)Verlängerung 11cm 1/2"   ( 0,20 kg | 580581000 )

(M)Steckschlüssel 41   ( 0,99 kg | 580585000 )

(N)Stecknuss 30 1/2"   ( 0,20 kg | 580575000 )

(O)Stecknuss 24 1/2"   ( 0,12 kg | 580584000 )

(P)Stecknuss 19 1/2" L   ( 0,16 kg | 580598000 )

(Q)Stecknuss 18 1/2" L   ( 0,15 kg | 580642000 )

(R)Stecknuss 13 1/2"   ( 0,06 kg | 580576000 )

Aufstiegssystem XS

Anschluss XS Wandschalung   ( 20,8 kg | 588662000 )

Connector XS Wall formwork

Anschluss XS DM/SL-1   ( 11,7 kg | 588672000 )

Connector XS DM/SL-1

System-Leiter XS 4,40m   ( 33,2 kg | 588640000 )

System ladder XS 4.40m

Leiternverlängerung XS 2,30m   ( 19,1 kg | 588641000 )

Ladder extension XS 2.30m

Sicherungsschranke XS   ( 4,9 kg | 588669000 )

Securing barrier XS

Rückenschutz XS 1,00m   ( 16,5 kg | 588643000 )

Rückenschutz XS 0,25m   ( 10,5 kg | 588670000 )

Ladder cage XS

Rückenschutz-Ausstieg XS   ( 17,0 kg | 588666000 )

Ladder cage exit XS

Ankersystem 15,0

Aufhängekonus 15,0 5cm   ( 0,88 kg | 581971000 )

Suspension cone 15.0 5cm

Vorlaufkonus 15,0 5cm   ( 0,43 kg | 581969000 )

Positioning cone 15.0 5cm

Sperrenvorlauf 15,0 5cm   ( 0,45 kg | 581699000 )

Cantilever positioning cone 15.0 5cm

Sichtbetonvorlauf 15,0 5cm   ( 0,46 kg | 581973000 )

Fair-faced concrete positioning cone 15.0 5cm

Dichtungshülse 15,0 5cm   ( 0,008 kg | 581990000 )

Sealing sleeve 15.0 5cm

Dichtungshülse S 15,0 5cm   ( 0,009 kg | 581697000 )

Sealing sleeve S 15.0 5cm

Sichtbetonstopfen 41mm Kunststoff   ( 0,007 kg | 581851000 )

Sichtbetonstopfen 41mm Beton   ( 0,05 kg | 581848000 )

Fair-faced concrete plug

Nagelblech 15,0   ( 0,16 kg | 581692000 )

Fixing plate 15.0

Aufhängekonus 15,0 für Isolierung bis 11cm   ( 3,6 kg | 580495000 )

Suspension cone 15.0 f. insulation up to 11cm

Dichtungshülse 15,0 für Isolierung bis 11cm   ( 0,05 kg | 580498000 )

Sealing sleeve 15.0 f. insulation up to 11cm

Vorlaufscheibe Rd28   ( 0,25 kg | 580497000 )

Positioning disc Rd28

Konusschraube Rd28   ( 0,65 kg | 580496000 )

Cone screw Rd28

Ankerstab 15,0mm verzinkt 0,50m   ( 0,72 kg | 581821000 )

Ankerstab 15,0mm verzinkt 0,75m   ( 1,1 kg | 581822000 )

Ankerstab 15,0mm verzinkt 1,00m   ( 1,4 kg | 581823000 )

Ankerstab 15,0mm verzinkt 1,25m   ( 1,8 kg | 581826000 )

Ankerstab 15,0mm verzinkt 1,50m   ( 2,2 kg | 581827000 )

Ankerstab 15,0mm verzinkt 1,75m   ( 2,5 kg | 581828000 )

Ankerstab 15,0mm verzinkt 2,00m   ( 2,9 kg | 581829000 )

Ankerstab 15,0mm verzinkt 2,50m   ( 3,6 kg | 581852000 )

Ankerstab 15,0mm verzinkt .....m   ( 1,4 kg | 581824000 )

Ankerstab 15,0mm unbehandelt 0,50m   ( 0,73 kg | 581870000 )

Ankerstab 15,0mm unbehandelt 0,75m   ( 1,1 kg | 581871000 )

Ankerstab 15,0mm unbehandelt 1,00m   ( 1,4 kg | 581874000 )

Ankerstab 15,0mm unbehandelt 1,25m   ( 1,8 kg | 581886000 )

Ankerstab 15,0mm unbehandelt 1,50m   ( 2,1 kg | 581876000 )

Ankerstab 15,0mm unbehandelt 1,75m   ( 2,5 kg | 581887000 )

Ankerstab 15,0mm unbehandelt 2,00m   ( 2,9 kg | 581875000 )

Ankerstab 15,0mm unbehandelt 2,50m   ( 3,6 kg | 581877000 )

Ankerstab 15,0mm unbehandelt 3,00m   ( 4,3 kg | 581878000 )

Ankerstab 15,0mm unbehandelt 3,50m   ( 5,0 kg | 581888000 )

Ankerstab 15,0mm unbehandelt 4,00m   ( 5,7 kg | 581879000 )

Ankerstab 15,0mm unbehandelt 5,00m   ( 7,2 kg | 581880000 )

Ankerstab 15,0mm unbehandelt 6,00m   ( 8,6 kg | 581881000 )

Ankerstab 15,0mm unbehandelt 7,50m   ( 10,7 kg | 581882000 )

Ankerstab 15,0mm unbehandelt .....m   ( 1,4 kg | 581873000 )

Tie rod 15.0mm

Superplatte 15,0   ( 1,1 kg | 581966000 )

Super plate 15.0

Sperranker 15,0 A16   ( 0,38 kg | 581997000 )

Stop anchor 15.0 A16

Sperranker 15,0 A21   ( 0,44 kg | 581884000 )

Stop anchor 15.0 A21

Sperranker 15,0 B11   ( 0,55 kg | 581868000 )

Stop anchor 15.0 B11

Wellenanker 15,0   ( 0,92 kg | 581984000 )

Pigtail anchor 15.0

Bund-Aufhängekonus 15,0   ( 1,4 kg | 580428000 )

Suspension cone 15.0 with collar

Felsanker-Spreizeinheit 15,0   ( 0,41 kg | 581120000 )

Rock anchor spreader unit 15.0

Felsanker-Einbaurohr   ( 0,85 kg | 581123000 )

Rock anchor installation tube

Vorspanngerät B   ( 34,5 kg | 580570000 )

Tensioning instrument B

Einschraubkonus 15,0   ( 0,74 kg | 581895000 )

Screw-in cone 15.0

Gesimsanker 15,0   ( 0,45 kg | 581896000 )

Gesimsanker 15,0 verzinkt   ( 0,44 kg | 581890000 )

Bridge edge beam anchor 15.0

Nagelkonus 15,0   ( 0,02 kg | 581897000 )

Nailing cone 15.0

Gesimsankerstopfen 29mm   ( 0,003 kg | 581891000 )

Hole plug 29mm

Zinkstöpsel 15,0   ( 0,20 kg | 581889000 )

Zinc plug 15.0

Schutzkappe 15,0/20,0   ( 0,03 kg | 581858000 )

Protective cap 15.0/20.0

Ankerstabschlüssel 15,0/20,0   ( 1,9 kg | 580594000 )

Tie-rod wrench 15.0/20.0

Vorlaufschlüssel 15,0 DK   ( 0,30 kg | 580579000 )

Positioning cone spanner 15.0 DK

Universal-Konusschlüssel 15,0/20,0   ( 0,90 kg | 581448000 )

Universal cone spanner 15.0/20.0

Im Lieferumfang enthalten:

(A)Safety Ruler SK   ( 0,02 kg | 581439000 )

Länge: 18 cm

Mehrweggebinde

Doka-Gitterbox 1,70x0,80m   ( 87,0 kg | 583012000 )

Doka skeleton transport box 1.70x0.80m

Doka-Mehrwegcontainer 1,20x0,80m   ( 70,0 kg | 583011000 )

Doka multi-trip transport box 1.20x0.80m

Mehrwegcontainer Unterteilung 0,80m   ( 3,7 kg | 583018000 )

Mehrwegcontainer Unterteilung 1,20m   ( 5,5 kg | 583017000 )

Multi-trip transport box partition

Doka-Mehrwegcontainer 1,20x0,80x0,41m   ( 42,5 kg | 583009000 )

Doka multi-trip transport box 1.20x0.80x0.41m

Doka-Stapelpalette 1,55x0,85m   ( 41,0 kg | 586151000 )

Doka stacking pallet 1.55x0.85m

Doka-Stapelpalette 1,20x0,80m   ( 38,0 kg | 583016000 )

Doka stacking pallet 1.20x0.80m

Doka-Kleinteilebox   ( 106,4 kg | 583010000 )

Doka accessory box

Anklemm-Radsatz B   ( 33,6 kg | 586168000 )

Bolt-on castor set B
