Working platform

Working platform with formwork

H (horizontal load) and V (vertical load) refer to the loads at the suspension point. These loads cover all the usage situations given here. The structure, and all parts of the structure, must be verified for stability on the basis of this data.

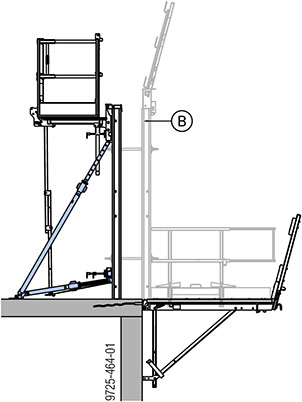

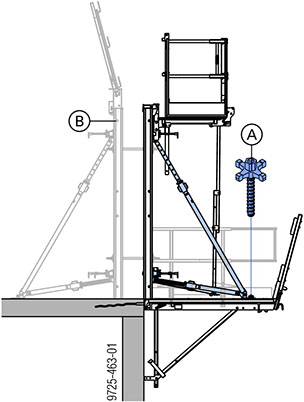

	Formwork shored from folding platform		Formwork shored from floor slab

	Load Class 2 (Permitted service load: 1.5 kN/m² (150 kg/m²) on folding platform and pouring platform). Max. width of pouring platforms 1.20 m.
Type of suspension point	Suspension cone	Suspension loop ES*	Suspension cone	Suspension loop ES*
	H = 14.0 kN V = 24.0 kN	H = 14.0 kN V = 18.0 kN	H = 14.0 kN V = 24.0 kN	H = 14.0 kN V = 18.0 kN
Closures	1.00 m	0.75 m	1.00 m	0.75 m
Suspended platform	Allowed	Not allowed	Allowed	Not allowed
Folding platform K inside corner	Allowed	Not allowed	Allowed	Not allowed
Formwork height	3.00 m	3.00 m	5.50 m	4.00 m
	Wind speeds up to 55 km/h (as per "UVV" accident prevention rule for cranes). At wind speeds of up to 45 km/h, a formwork height of 4.00 m is possible.
	If higher wind speeds are likely, and when work finishes for the day or before prolonged work-breaks, the formwork must be closed. Fix the panel struts of the opposing formwork to the floor-slab stably.

* Ensure that the Folding platform K is at the correct height relative to the top of the floor slab. See the section headed 'Loop-type suspension points'

A Star screw

B Opposing formwork

CAUTION

The panel struts on the folding platform must:

➤ only be positioned in the axis of the bracket

➤ only be fitted into the special connection sockets, and

➤ only be fixed with star screws.
Tie rod 15.0mm is forbidden!

Note:

The values stated above for the permitted service load and closures must also be complied with when using inside corners and outside corners.

User Information "Folding platform K", 999725002 en-GB - 01/2019
