Produktübersicht

[kg]

Art.-Nr.

Fertigelement FF20 2,00x2,75m 21mm   ( 335,0 kg | 587512000 )

Fertigelement FF20 1,00x2,75m 21mm   ( 166,0 kg | 587508000 )

Fertigelement FF20 0,75x2,75m 21mm   ( 131,0 kg | 587504000 )

Fertigelement FF20 0,50x2,75m 21mm   ( 92,0 kg | 587500000 )

Fertigelement FF20 2,00x1,00m 21mm   ( 190,0 kg | 587523000 )

Fertigelement FF20 1,00x1,00m 21mm   ( 95,0 kg | 587522000 )

Fertigelement FF20 0,75x1,00m 21mm   ( 79,5 kg | 587521000 )

Fertigelement FF20 0,50x1,00m 21mm   ( 58,0 kg | 587520000 )

Fertigelement FF20 2,00x3,75m 21mm   ( 440,0 kg | 587564000 )

Fertigelement FF20 1,00x3,75m 21mm   ( 224,0 kg | 587562000 )

Fertigelement FF20 0,75x3,75m 21mm   ( 172,0 kg | 587561000 )

Fertigelement FF20 0,50x3,75m 21mm   ( 120,0 kg | 587560000 )

Fertigelement FF20 2,00x6,50m 21mm   ( 692,0 kg | 587563000 )

Fertigelement FF20 1,00x6,50m 21mm   ( 346,0 kg | 587565000 )

Fertigelement FF20 0,75x6,50m 21mm   ( 272,0 kg | 587566000 )

Fertigelement FF20 0,50x6,50m 21mm   ( 189,5 kg | 587567000 )

Formwork element FF20 21mm

Fertigelement FF20 2,00x2,75m 27mm   ( 348,0 kg | 587606000 )

Fertigelement FF20 1,00x2,75m 27mm   ( 173,0 kg | 587604000 )

Fertigelement FF20 0,75x2,75m 27mm   ( 136,0 kg | 587602000 )

Fertigelement FF20 0,50x2,75m 27mm   ( 96,0 kg | 587600000 )

Fertigelement FF20 2,00x1,00m 27mm   ( 195,0 kg | 587616000 )

Fertigelement FF20 1,00x1,00m 27mm   ( 103,0 kg | 587614000 )

Fertigelement FF20 0,75x1,00m 27mm   ( 81,5 kg | 587612000 )

Fertigelement FF20 0,50x1,00m 27mm   ( 59,5 kg | 587610000 )

Formwork element FF20 27mm

Aufstockelement FF20 2,00x0,50m 21mm   ( 90,5 kg | 587529000 )

Aufstockelement FF20 1,00x0,50m 21mm   ( 45,4 kg | 587528000 )

Aufstockelement FF20 0,75x0,50m 21mm   ( 36,4 kg | 587527000 )

Aufstockelement FF20 0,50x0,50m 21mm   ( 27,5 kg | 587526000 )

Stacking element FF20 21mm

Aufstockelement FF20 2,00x0,50m 27mm   ( 67,5 kg | 587626000 )

Aufstockelement FF20 1,00x0,50m 27mm   ( 33,4 kg | 587624000 )

Aufstockelement FF20 0,75x0,50m 27mm   ( 28,8 kg | 587622000 )

Aufstockelement FF20 0,50x0,50m 27mm   ( 21,0 kg | 587620000 )

Stacking element FF20 27mm

Innenecke FF20 2,75m 21mm   ( 214,0 kg | 587516000 )

Innenecke FF20 1,00m 21mm   ( 117,0 kg | 587525000 )

Inside corner FF20 21mm

Innenecke FF20 2,75m 27mm   ( 220,0 kg | 587608000 )

Innenecke FF20 1,00m 27mm   ( 120,0 kg | 587618000 )

Innenecke FF20 0,50m 27mm   ( 33,5 kg | 587628000 )

Inside corner FF20 27mm

Gelenkinnenecke FF20 2,75m 21mm   ( 246,5 kg | 587577000 )

Gelenkinnenecke FF20 1,00m 21mm   ( 103,0 kg | 587575000 )

Gelenkinnenecke FF20 0,50m 21mm   ( 53,7 kg | 587573000 )

Swivelling inside corner FF20 21mm

Gelenkinnenecke FF20 0,50m 27mm   ( 55,0 kg | 587647000 )

Gelenkinnenecke FF20 1,00m 27mm   ( 108,8 kg | 587649000 )

Gelenkinnenecke FF20 2,75m 27mm   ( 255,0 kg | 587651000 )

Swivelling inside corner FF20 27mm

Gelenkaußenecke FF20 2,75m 21mm   ( 102,7 kg | 587579000 )

Gelenkaußenecke FF20 1,00m 21mm   ( 46,2 kg | 587578000 )

Swivelling outside corner FF20 21mm

Gelenkaußenecke FF20 2,75m 27mm   ( 102,7 kg | 587654000 )

Gelenkaußenecke FF20 1,00m 27mm   ( 46,2 kg | 587653000 )

Swivelling outside corner FF20 27mm

Gelenkaußenecke FF20 0,50m   ( 16,1 kg | 587652000 )

Swivelling outside corner FF20 0.50m

Ecklasche FF20 G   ( 7,2 kg | 587571000 )

Corner plate FF20 G

Spannbolzen FF20   ( 0,30 kg | 587545000 )

Fastening bolt FF20

Sternmutter 15,0 G   ( 0,43 kg | 587544000 )

Star grip nut 15.0 G

Elementverbinder FF20/50   ( 6,3 kg | 587530000 )

Formwork element connector FF20/50

Elementverbinder FF20/50 Z   ( 6,0 kg | 587533000 )

Formwork element connector FF20/50 Z

Ausgleichslasche FF20/50   ( 9,1 kg | 587532000 )

Adjustable waling extension FF20/50

Trägerklammer Top50   ( 1,2 kg | 580081000 )

Beam clamp Top50

Ankerungslasche FF20/50   ( 6,6 kg | 587531000 )

Anchoring plate FF20/50

Verbindungslasche mit Fugenjustierung   ( 13,8 kg | 580215000 )

Splice plate with join adjustment

Verteilerplatte FF20   ( 1,7 kg | 580216000 )

Distribution plate FF20

Versatzlasche FF20   ( 6,2 kg | 587534000 )

Offset plate FF20

Außenecklasche FF20 21mm   ( 18,6 kg | 587535000 )

Außenecklasche FF20 27mm   ( 18,6 kg | 587634000 )

Outside angle plate FF20

Universal-Winkelspanner   ( 4,4 kg | 580604000 )

Universal angle tie bracket

Verbindungsbolzen 10cm   ( 0,34 kg | 580201000 )

Connecting pin 10cm

Federvorstecker 5mm   ( 0,03 kg | 580204000 )

Spring cotter 5mm

Flanschklammer H20   ( 1,0 kg | 580135000 )

Flange clamp H20

Aufstockwinkel FF20   ( 7,8 kg | 587547000 )

Stacking angle FF20

Mehrzweckriegel WS10 Top50 0,50m   ( 10,2 kg | 580001000 )

Mehrzweckriegel WS10 Top50 0,75m   ( 14,9 kg | 580002000 )

Mehrzweckriegel WS10 Top50 1,00m   ( 19,6 kg | 580003000 )

Mehrzweckriegel WS10 Top50 1,25m   ( 24,7 kg | 580004000 )

Mehrzweckriegel WS10 Top50 1,50m   ( 29,7 kg | 580005000 )

Mehrzweckriegel WS10 Top50 1,75m   ( 35,0 kg | 580006000 )

Mehrzweckriegel WS10 Top50 2,00m   ( 38,9 kg | 580007000 )

Mehrzweckriegel WS10 Top50 2,25m   ( 44,2 kg | 580008000 )

Mehrzweckriegel WS10 Top50 2,50m   ( 48,7 kg | 580009000 )

Mehrzweckriegel WS10 Top50 2,75m   ( 54,2 kg | 580010000 )

Mehrzweckriegel WS10 Top50 3,00m   ( 60,2 kg | 580011000 )

Mehrzweckriegel WS10 Top50 3,50m   ( 68,4 kg | 580012000 )

Mehrzweckriegel WS10 Top50 4,00m   ( 79,4 kg | 580013000 )

Mehrzweckriegel WS10 Top50 4,50m   ( 89,1 kg | 580014000 )

Mehrzweckriegel WS10 Top50 5,00m   ( 102,0 kg | 580015000 )

Mehrzweckriegel WS10 Top50 5,50m   ( 112,4 kg | 580016000 )

Mehrzweckriegel WS10 Top50 6,00m   ( 118,0 kg | 580017000 )

Multi-purpose waling WS10 Top50

Aussparungsklemme 24cm   ( 3,4 kg | 580063000 )

Aussparungsklemme 25cm   ( 3,4 kg | 580064000 )

Aussparungsklemme 30cm   ( 3,9 kg | 580065000 )

Box-out clamp

Aussparungsklemme Typ 1 .....cm   ( 17,4 kg | 580066000 )

Box-out clamp type 1 .....cm

Aussparungsklemme Typ 2 .....cm   ( 17,4 kg | 580067000 )

Box-out clamp type 2 .....cm

Auflagewinkel Wandschalung   ( 6,6 kg | 588967000 )

Wall-formwork support angle

Elementstütze 340 IB   ( 24,3 kg | 580365000 )

Panel strut 340 IB

bestehend aus:

(A)Justierstütze 340 IB   ( 16,7 kg | 588696000 )

verzinkt

Länge: 190,8 - 341,8 cm

(B)Justierstrebe 120 IB   ( 7,6 kg | 588248500 )

verzinkt

Länge: 81,5 - 130,6 cm

Elementstütze 540 IB   ( 41,4 kg | 580366000 )

Panel strut 540 IB

bestehend aus:

(A)Justierstütze 540 IB   ( 30,7 kg | 588697000 )

verzinkt

Länge: 310,5 - 549,2 cm

(B)Justierstrebe 220 IB   ( 10,9 kg | 588251500 )

verzinkt

Länge: 172,5 - 221,1 cm

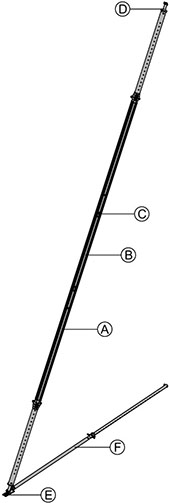

Eurex 60 550   (  kg |  )

Eurex 60 550

je nach erforderlicher Länge bestehend aus:

(A)Justierstütze Eurex 60 550   ( 42,5 kg | 582658000 )

blau pulverbeschichtet

Alu

Länge: 343 - 553 cm

(B)Verlängerung Eurex 60 2,00m   ( 21,3 kg | 582651000 )

blau pulverbeschichtet

Alu

Länge: 250 cm

(C)Kupplungsstück Eurex 60   ( 8,6 kg | 582652000 )

Alu

Länge: 100 cm

Durchmesser: 12,8 cm

(D)Verbindungsstück Eurex 60 IB   ( 4,2 kg | 582657500 )

verzinkt

Länge: 15 cm

Breite: 15 cm

Höhe: 30 cm

(E)Justierstützenfuß Eurex 60 EB   ( 8,0 kg | 582660500 )

verzinkt

Länge: 31 cm

Breite: 12 cm

Höhe: 33 cm

(F)Justierstrebe 540 Eurex 60 IB   ( 27,8 kg | 582659500 )

verzinkt

Länge: 303,5 - 542,2 cm

Stützenkopf EB   ( 3,1 kg | 588244500 )

Prop head EB

Universal-Lösewerkzeug   ( 3,7 kg | 582768000 )

Universal dismantling tool

Doka-Expressanker 16x125mm   ( 0,31 kg | 588631000 )

Doka express anchor 16x125mm

Doka-Coil 16mm   ( 0,009 kg | 588633000 )

Doka coil 16mm

Betonierkonsole L   ( 12,6 kg | 587153500 )

Top scaffold bracket L

Betonierkonsole L lackiert   ( 12,0 kg | 587153000 )

Top scaffold bracket L painted

Universal-Konsole 60   ( 14,0 kg | 580477000 )

Universal bracket 60

Universal-Konsole 90   ( 30,4 kg | 580476000 )

Universal bracket 90

Universal-Geländerbügel   ( 3,0 kg | 580478000 )

Universal railing shackle

Gerüstrohr 48,3mm 0,50m   ( 1,7 kg | 682026000 )

Gerüstrohr 48,3mm 1,00m   ( 3,6 kg | 682014000 )

Gerüstrohr 48,3mm 1,50m   ( 5,4 kg | 682015000 )

Gerüstrohr 48,3mm 2,00m   ( 7,2 kg | 682016000 )

Gerüstrohr 48,3mm 2,50m   ( 9,0 kg | 682017000 )

Gerüstrohr 48,3mm 3,00m   ( 10,8 kg | 682018000 )

Gerüstrohr 48,3mm 3,50m   ( 12,6 kg | 682019000 )

Gerüstrohr 48,3mm 4,00m   ( 14,4 kg | 682021000 )

Gerüstrohr 48,3mm 4,50m   ( 16,2 kg | 682022000 )

Gerüstrohr 48,3mm 5,00m   ( 18,0 kg | 682023000 )

Gerüstrohr 48,3mm 5,50m   ( 19,8 kg | 682024000 )

Gerüstrohr 48,3mm 6,00m   ( 21,6 kg | 682025000 )

Gerüstrohr 48,3mm .....m   ( 3,6 kg | 682001000 )

Scaffold tube 48.3mm

Gerüstrohranschluss   ( 0,27 kg | 584375000 )

Scaffold tube connection

Anschraubkupplung 48mm 50   ( 0,84 kg | 682002000 )

Screw-on coupler 48mm 50

Framax-Betonierbühne U 1,25/2,70m   ( 127,5 kg | 588377000 )

Framax pouring platform U 1.25/2.70m

FF20-Adapter für Framax-Betonierbühne U   ( 6,8 kg | 588381000 )

FF20 adapter for Framax pouring platform U

Top50-Adapter für Framax-Betonierbühne U   ( 18,5 kg | 588384000 )

Top50 adapter for Framax pouring platform U

Geländersteher XP 1,20m   ( 4,1 kg | 586460000 )

Handrail post XP 1.20m

Fußwehrhalter XP 1,20m   ( 0,64 kg | 586461000 )

Toeboard holder XP 1.20m

Geländerzwinge XP 40cm   ( 7,7 kg | 586456000 )

Railing clamp XP 40cm

Schutzgitter XP 2,70x1,20m   ( 22,2 kg | 586450000 )

Schutzgitter XP 2,50x1,20m   ( 20,5 kg | 586451000 )

Schutzgitter XP 2,00x1,20m   ( 17,4 kg | 586452000 )

Schutzgitter XP 1,20x1,20m   ( 12,0 kg | 586453000 )

Protective grating XP

Klettverschluss 30x380mm   ( 0,02 kg | 586470000 )

Velcro fastener 30x380mm

Trägerschalungsadapter XP   ( 9,5 kg | 586476000 )

Timber-beam formwork adapter XP

Schutzgeländerzwinge S   ( 11,5 kg | 580470000 )

Handrail clamp S

Schutzgeländerzwinge T   ( 12,3 kg | 584381000 )

Handrail clamp T

Schutzgeländer 1,10m   ( 5,5 kg | 584384000 )

Handrail post 1.10m

Steckhülse 24mm   ( 0,03 kg | 584385000 )

Attachable sleeve 24mm

Schraubhülse 20,0   ( 0,03 kg | 584386000 )

Screw sleeve 20.0

Seitenschutzgeländer T   ( 29,1 kg | 580488000 )

Side handrail clamping unit T

Einschubgeländer T 1,80m   ( 17,7 kg | 584373000 )

Handrail post T 1.80m

Fußwehrhalter T 1,80m   ( 0,53 kg | 584392000 )

Toeboard holder T 1.80m

Doka-Vierstrangkette 3,20m   ( 15,0 kg | 588620000 )

Doka 4-part chain 3.20m

Anschlagkette 100cm 15kN   ( 1,8 kg | 587548000 )

Lifting chain 100cm 15kN

Dokamatic-Umsetzgurt 13,00m   ( 10,5 kg | 586231000 )

Dokamatic lifting strap 13.00m

Kranöse   ( 6,2 kg | 580460000 )

Lifting bracket

Höhenjustierung WS10-WU16   ( 10,1 kg | 580206500 )

Height adjuster WS10-WU16

Abstützwinkel   ( 10,7 kg | 588477000 )

Supporting construction

Doka-Auffanggurt   ( 3,6 kg | 583022000 )

Doka personal fall-arrest set

Aufstiegssystem XS

Anschluss XS Wandschalung   ( 20,8 kg | 588662000 )

Connector XS Wall formwork

System-Leiter XS 4,40m   ( 33,2 kg | 588640000 )

System ladder XS 4.40m

Leiternverlängerung XS 2,30m   ( 19,1 kg | 588641000 )

Ladder extension XS 2.30m

Sicherungsschranke XS   ( 4,9 kg | 588669000 )

Securing barrier XS

Rückenschutz XS 1,00m   ( 16,5 kg | 588643000 )

Rückenschutz XS 0,25m   ( 10,5 kg | 588670000 )

Ladder cage XS

Rückenschutz-Ausstieg XS   ( 17,0 kg | 588666000 )

Ladder cage exit XS

Bühnensystem Xsafe plus

Xsafe plus-Bühne 2,00m   ( 122,5 kg | 586407000 )

Xsafe plus platform 2.00m

Xsafe plus-Bühne 1,00m   ( 78,5 kg | 586409000 )

Xsafe plus platform 1.00m

Xsafe plus-Seitengeländer   ( 20,5 kg | 586410000 )

Xsafe plus side railing

Xsafe plus-Geländerausgleich   ( 3,4 kg | 586411000 )

Xsafe plus railing-closure post

Xsafe plus-Bühnenverlängerung 0,60m   ( 43,4 kg | 586418000 )

Xsafe plus platform extension 0.60m

Xsafe plus-Bühnenübergang   ( 26,5 kg | 586419000 )

Xsafe plus platform transition

Xsafe plus-Geländerverlängerung   ( 4,3 kg | 586420000 )

Xsafe plus handrail extension

Xsafe plus-Gegengeländer 2,00m   ( 20,3 kg | 586428000 )

Xsafe plus-Gegengeländer 1,00m   ( 15,5 kg | 586430000 )

Xsafe plus counter railing

Xsafe plus-Stützenstrebe EB   ( 8,0 kg | 586412500 )

Xsafe plus supporting strut EB

Xsafe plus-Riegelverbinder   ( 6,1 kg | 586433000 )

Xsafe plus waling connector

Xsafe plus-Umsetzadapter Trägerschalung   ( 14,0 kg | 586439000 )

Xsafe plus lifting adapter for beam formwork

Xsafe plus-Teleskopleiter   ( 15,0 kg | 586421000 )

Xsafe plus telescopic ladder

Xsafe plus-Leiternverlängerung 1,15m   ( 7,0 kg | 586422000 )

Xsafe plus ladder extension 1.15m

Xsafe plus-Leiternstütze   ( 2,1 kg | 586423000 )

Xsafe plus ladder support

Xsafe plus-Leiternhalter   ( 6,8 kg | 586424000 )

Xsafe plus ladder starter piece

Ankersystem 15,0

Ankerstab 15,0mm verzinkt 0,50m   ( 0,72 kg | 581821000 )

Ankerstab 15,0mm verzinkt 0,75m   ( 1,1 kg | 581822000 )

Ankerstab 15,0mm verzinkt 1,00m   ( 1,4 kg | 581823000 )

Ankerstab 15,0mm verzinkt 1,25m   ( 1,8 kg | 581826000 )

Ankerstab 15,0mm verzinkt 1,50m   ( 2,2 kg | 581827000 )

Ankerstab 15,0mm verzinkt 1,75m   ( 2,5 kg | 581828000 )

Ankerstab 15,0mm verzinkt 2,00m   ( 2,9 kg | 581829000 )

Ankerstab 15,0mm verzinkt 2,50m   ( 3,6 kg | 581852000 )

Ankerstab 15,0mm verzinkt .....m   ( 1,4 kg | 581824000 )

Ankerstab 15,0mm unbehandelt 0,50m   ( 0,73 kg | 581870000 )

Ankerstab 15,0mm unbehandelt 0,75m   ( 1,1 kg | 581871000 )

Ankerstab 15,0mm unbehandelt 1,00m   ( 1,4 kg | 581874000 )

Ankerstab 15,0mm unbehandelt 1,25m   ( 1,8 kg | 581886000 )

Ankerstab 15,0mm unbehandelt 1,50m   ( 2,1 kg | 581876000 )

Ankerstab 15,0mm unbehandelt 1,75m   ( 2,5 kg | 581887000 )

Ankerstab 15,0mm unbehandelt 2,00m   ( 2,9 kg | 581875000 )

Ankerstab 15,0mm unbehandelt 2,50m   ( 3,6 kg | 581877000 )

Ankerstab 15,0mm unbehandelt 3,00m   ( 4,3 kg | 581878000 )

Ankerstab 15,0mm unbehandelt 3,50m   ( 5,0 kg | 581888000 )

Ankerstab 15,0mm unbehandelt 4,00m   ( 5,7 kg | 581879000 )

Ankerstab 15,0mm unbehandelt 5,00m   ( 7,2 kg | 581880000 )

Ankerstab 15,0mm unbehandelt 6,00m   ( 8,6 kg | 581881000 )

Ankerstab 15,0mm unbehandelt 7,50m   ( 10,7 kg | 581882000 )

Ankerstab 15,0mm unbehandelt .....m   ( 1,4 kg | 581873000 )

Tie rod 15.0mm

Flügelmutter 15,0   ( 0,31 kg | 581961000 )

Wing nut 15.0

Superplatte 15,0   ( 1,1 kg | 581966000 )

Super plate 15.0

Kunststoffrohr 22mm 2,50m   ( 0,45 kg | 581951000 )

Plastic tube 22mm 2.50m

Universal-Konus 22mm   ( 0,005 kg | 581995000 )

Universal cone 22mm

Verschlussstopfen 22mm   ( 0,003 kg | 581953000 )

Plug 22mm

Distanzhalter 20cm   ( 0,04 kg | 581907000 )

Distanzhalter 25cm   ( 0,05 kg | 581908000 )

Distanzhalter 30cm   ( 0,06 kg | 581909000 )

Distancer

Schutzkappe 15,0/20,0   ( 0,03 kg | 581858000 )

Protective cap 15.0/20.0

Ankerstabschlüssel 15,0/20,0   ( 1,9 kg | 580594000 )

Tie-rod wrench 15.0/20.0

Freilaufknarre SW27   ( 0,49 kg | 581855000 )

Friction type ratchet SW27

Steckschlüssel 27 0,65m   ( 1,9 kg | 581854000 )

Box spanner 27 0.65m

Mehrweggebinde

Doka-Gitterbox 1,70x0,80m   ( 87,0 kg | 583012000 )

Doka skeleton transport box 1.70x0.80m

Doka-Mehrwegcontainer 1,20x0,80m   ( 70,0 kg | 583011000 )

Doka multi-trip transport box 1.20x0.80m

Mehrwegcontainer Unterteilung 0,80m   ( 3,7 kg | 583018000 )

Mehrwegcontainer Unterteilung 1,20m   ( 5,5 kg | 583017000 )

Multi-trip transport box partition

Doka-Mehrwegcontainer 1,20x0,80x0,41m   ( 42,5 kg | 583009000 )

Doka multi-trip transport box 1.20x0.80x0.41m

Doka-Stapelpalette 1,55x0,85m   ( 41,0 kg | 586151000 )

Doka stacking pallet 1.55x0.85m

Doka-Stapelpalette 1,20x0,80m   ( 38,0 kg | 583016000 )

Doka stacking pallet 1.20x0.80m

Doka-Kleinteilebox   ( 106,4 kg | 583010000 )

Doka accessory box

Anklemm-Radsatz B   ( 33,6 kg | 586168000 )

Bolt-on castor set B
