Component overview
[kg]
Article N°
Formwork element FF20 2.00x2.75m 21mm ( 335.0 kg | 587512000 )
Formwork element FF20 1.00x2.75m 21mm ( 166.0 kg | 587508000 )
Formwork element FF20 0.75x2.75m 21mm ( 131.0 kg | 587504000 )
Formwork element FF20 0.50x2.75m 21mm ( 92.0 kg | 587500000 )
Formwork element FF20 2.00x1.00m 21mm ( 190.0 kg | 587523000 )
Formwork element FF20 1.00x1.00m 21mm ( 95.0 kg | 587522000 )
Formwork element FF20 0.75x1.00m 21mm ( 79.5 kg | 587521000 )
Formwork element FF20 0.50x1.00m 21mm ( 58.0 kg | 587520000 )
Formwork element FF20 2.00x3.75m 21mm ( 440.0 kg | 587564000 )
Formwork element FF20 1.00x3.75m 21mm ( 224.0 kg | 587562000 )
Formwork element FF20 0.75x3.75m 21mm ( 172.0 kg | 587561000 )
Formwork element FF20 0.50x3.75m 21mm ( 120.0 kg | 587560000 )
Formwork element FF20 2.00x6.50m 21mm ( 692.0 kg | 587563000 )
Formwork element FF20 1.00x6.50m 21mm ( 346.0 kg | 587565000 )
Formwork element FF20 0.75x6.50m 21mm ( 272.0 kg | 587566000 )
Formwork element FF20 0.50x6.50m 21mm ( 189.5 kg | 587567000 )
Fertigelement FF20 21mm
|
|
|
Formwork element FF20 2.00x2.75m 27mm ( 348.0 kg | 587606000 )
Formwork element FF20 1.00x2.75m 27mm ( 173.0 kg | 587604000 )
Formwork element FF20 0.75x2.75m 27mm ( 136.0 kg | 587602000 )
Formwork element FF20 0.50x2.75m 27mm ( 96.0 kg | 587600000 )
Formwork element FF20 2.00x1.00m 27mm ( 195.0 kg | 587616000 )
Formwork element FF20 1.00x1.00m 27mm ( 103.0 kg | 587614000 )
Formwork element FF20 0.75x1.00m 27mm ( 81.5 kg | 587612000 )
Formwork element FF20 0.50x1.00m 27mm ( 59.5 kg | 587610000 )
Fertigelement FF20 27mm
|
|
|
Stacking element FF20 2.00x0.50m 21mm ( 90.5 kg | 587529000 )
Stacking element FF20 1.00x0.50m 21mm ( 45.4 kg | 587528000 )
Stacking element FF20 0.75x0.50m 21mm ( 36.4 kg | 587527000 )
Stacking element FF20 0.50x0.50m 21mm ( 27.5 kg | 587526000 )
Aufstockelement FF20 21mm
|
|
|
Stacking element FF20 2.00x0.50m 27mm ( 67.5 kg | 587626000 )
Stacking element FF20 1.00x0.50m 27mm ( 33.4 kg | 587624000 )
Stacking element FF20 0.75x0.50m 27mm ( 28.8 kg | 587622000 )
Stacking element FF20 0.50x0.50m 27mm ( 21.0 kg | 587620000 )
Aufstockelement FF20 27mm
|
|
|
Inside corner FF20 2.75m 21mm ( 214.0 kg | 587516000 )
Inside corner FF20 1.00m 21mm ( 117.0 kg | 587525000 )
Innenecke FF20 21mm
|
|
|
Inside corner FF20 2.75m 27mm ( 220.0 kg | 587608000 )
Inside corner FF20 1.00m 27mm ( 120.0 kg | 587618000 )
Inside corner FF20 0.50m 27mm ( 33.5 kg | 587628000 )
Innenecke FF20 27mm
|
|
|
Swivelling inside corner FF20 2.75m 21mm ( 246.5 kg | 587577000 )
Swivelling inside corner FF20 1.00m 21mm ( 103.0 kg | 587575000 )
Swivelling inside corner FF20 0.50m 21mm ( 53.7 kg | 587573000 )
Gelenkinnenecke FF20 21mm
|
|
|
Swivelling inside corner FF20 0.50m 27mm ( 55.0 kg | 587647000 )
Swivelling inside corner FF20 1.00m 27mm ( 108.8 kg | 587649000 )
Swivelling inside corner FF20 2.75m 27mm ( 255.0 kg | 587651000 )
Gelenkinnenecke FF20 27mm
|
|
|
Swivelling outside corner FF20 2.75m 21mm ( 102.7 kg | 587579000 )
Swivelling outside corner FF20 1.00m 21mm ( 46.2 kg | 587578000 )
Gelenkaußenecke FF20 21mm
|
Painted blue |
|
Swivelling outside corner FF20 2.75m 27mm ( 102.7 kg | 587654000 )
Swivelling outside corner FF20 1.00m 27mm ( 46.2 kg | 587653000 )
Gelenkaußenecke FF20 27mm
|
Painted blue |
|
Swivelling outside corner FF20 0.50m ( 16.1 kg | 587652000 )
Gelenkaußenecke FF20 0,50m
|
Painted blue |
|
Corner plate FF20 G ( 7.2 kg | 587571000 )
Ecklasche FF20 G
|
Painted blue Length: 49 cm Width: 24 cm |
|
Fastening bolt FF20 ( 0.30 kg | 587545000 )
Spannbolzen FF20
|
Galvanised Length: 17 cm Width-across: 30 mm |
|
Star grip nut 15.0 G ( 0.43 kg | 587544000 )
Sternmutter 15,0 G
|
Galvanised Width: 10 cm Height: 5 cm Width-across: 26 mm |
|
Formwork element connector FF20/50 ( 6.3 kg | 587530000 )
Elementverbinder FF20/50
|
Painted blue Length: 55 cm |
|
Formwork element connector FF20/50 Z ( 6.0 kg | 587533000 )
Elementverbinder FF20/50 Z
|
Painted blue Length: 55 cm |
|
Adjustable waling extension FF20/50 ( 9.1 kg | 587532000 )
Ausgleichslasche FF20/50
|
Painted blue Length: 87 cm |
|
Beam clamp Top50 ( 1.2 kg | 580081000 )
Trägerklammer Top50
|
Painted blue Height: 15 cm |
|
Anchoring plate FF20/50 ( 6.6 kg | 587531000 )
Ankerungslasche FF20/50
|
Painted blue Length: 55 cm |
|
Splice plate with join adjustment ( 13.8 kg | 580215000 )
Verbindungslasche mit Fugenjustierung
|
Painted blue Length: 76 cm |
|
Distribution plate FF20 ( 1.7 kg | 580216000 )
Verteilerplatte FF20
|
Galvanised Width: 10.9 cm Height: 12 cm |
|
Offset plate FF20 ( 6.2 kg | 587534000 )
Versatzlasche FF20
|
Painted blue Length: 35 cm Width: 18 cm Height: 4 cm |
|
Outside angle plate FF20 21mm ( 18.6 kg | 587535000 )
Outside angle plate FF20 27mm ( 18.6 kg | 587634000 )
Außenecklasche FF20
|
Painted blue Leg length: 60 cm |
|
Universal angle tie bracket ( 4.4 kg | 580604000 )
Universal-Winkelspanner
|
Painted blue Length: 20 cm |
|
Connecting pin 10cm ( 0.34 kg | 580201000 )
Verbindungsbolzen 10cm
|
Galvanised Length: 14 cm |
|
Spring cotter 5mm ( 0.03 kg | 580204000 )
Federvorstecker 5mm
|
Galvanised Length: 13 cm |
|
Flange clamp H20 ( 1.0 kg | 580135000 )
Flanschklammer H20
|
Galvanised Width: 13 cm Width-across: 19 mm |
|
Stacking angle FF20 ( 7.8 kg | 587547000 )
Aufstockwinkel FF20
|
Painted blue Height: 46 cm |
|
Multi-purpose waling WS10 Top50 0.50m ( 10.2 kg | 580001000 )
Multi-purpose waling WS10 Top50 0.75m ( 14.9 kg | 580002000 )
Multi-purpose waling WS10 Top50 1.00m ( 19.6 kg | 580003000 )
Multi-purpose waling WS10 Top50 1.25m ( 24.7 kg | 580004000 )
Multi-purpose waling WS10 Top50 1.50m ( 29.7 kg | 580005000 )
Multi-purpose waling WS10 Top50 1.75m ( 35.0 kg | 580006000 )
Multi-purpose waling WS10 Top50 2.00m ( 38.9 kg | 580007000 )
Multi-purpose waling WS10 Top50 2.25m ( 44.2 kg | 580008000 )
Multi-purpose waling WS10 Top50 2.50m ( 48.7 kg | 580009000 )
Multi-purpose waling WS10 Top50 2.75m ( 54.2 kg | 580010000 )
Multi-purpose waling WS10 Top50 3.00m ( 60.2 kg | 580011000 )
Multi-purpose waling WS10 Top50 3.50m ( 68.4 kg | 580012000 )
Multi-purpose waling WS10 Top50 4.00m ( 79.4 kg | 580013000 )
Multi-purpose waling WS10 Top50 4.50m ( 89.1 kg | 580014000 )
Multi-purpose waling WS10 Top50 5.00m ( 102.0 kg | 580015000 )
Multi-purpose waling WS10 Top50 5.50m ( 112.4 kg | 580016000 )
Multi-purpose waling WS10 Top50 6.00m ( 118.0 kg | 580017000 )
Mehrzweckriegel WS10 Top50
|
Painted blue |
|
Box-out clamp 24cm ( 3.4 kg | 580063000 )
Box-out clamp 25cm ( 3.4 kg | 580064000 )
Box-out clamp 30cm ( 3.9 kg | 580065000 )
Aussparungsklemme
|
Galvanised Leg length: 10 cm |
|
Box-out clamp type 1 .....cm ( 17.4 kg | 580066000 )
Aussparungsklemme Typ 1 .....cm
|
Painted blue Leg length: 10 cm |
|
Box-out clamp type 2 .....cm ( 17.4 kg | 580067000 )
Aussparungsklemme Typ 2 .....cm
|
Painted blue Leg length: 10 cm |
|
Wall-formwork support angle ( 6.6 kg | 588967000 )
Auflagewinkel Wandschalung
|
Galvanised Length: 15.8 cm Width: 12 cm Height: 28 cm |
|
Panel strut 340 IB ( 24.3 kg | 580365000 )
Elementstütze 340 IB
consisting of:
(A)Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Galvanised
Length: 190.8 - 341.8 cm
(B)Adjusting strut 120 IB ( 7.6 kg | 588248500 )
Galvanised
Length: 81.5 - 130.6 cm
|
Galvanised Delivery condition: folded closed |
|
Panel strut 540 IB ( 41.4 kg | 580366000 )
Elementstütze 540 IB
consisting of:
(A)Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Galvanised
Length: 310.5 - 549.2 cm
(B)Adjusting strut 220 IB ( 10.9 kg | 588251500 )
Galvanised
Length: 172.5 - 221.1 cm
|
Galvanised Delivery condition: folded closed |
|

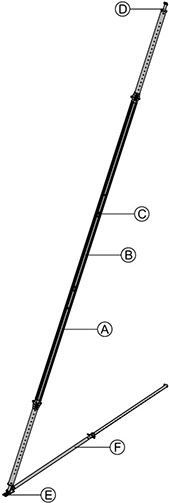

Eurex 60 550
depending on length, comprising:
(A)Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Powder-coated blue
Aluminium
Length: 343 - 553 cm
(B)Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Powder-coated blue
Aluminium
Length: 250 cm
(C)Coupler Eurex 60 ( 8.6 kg | 582652000 )
Aluminium
Length: 100 cm
Diameter: 12.8 cm
(D)Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Galvanised
Length: 15 cm
Width: 15 cm
Height: 30 cm
(E)Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Galvanised
Length: 31 cm
Width: 12 cm
Height: 33 cm
(F)Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Galvanised
Length: 303.5 - 542.2 cm
|
Delivery condition: separate parts |
|
Prop head EB ( 3.1 kg | 588244500 )
Stützenkopf EB
|
Galvanised Length: 40.8 cm Width: 11.8 cm Height: 17.6 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Top scaffold bracket L ( 12.6 kg | 587153500 )
Betonierkonsole L
|
Galvanised Length: 101 cm Height: 159 cm |
|
Top scaffold bracket L painted ( 12.0 kg | 587153000 )
Betonierkonsole L lackiert
|
Painted blue Length: 101 cm Height: 159 cm |
|
Universal bracket 60 ( 14.0 kg | 580477000 )
Universal-Konsole 60
|
Galvanised Length: 86 cm Height: 181 cm |
|
Universal bracket 90 ( 30.4 kg | 580476000 )
Universal-Konsole 90
|
Galvanised Length: 121 cm Height: 235 cm |
|
Universal railing shackle ( 3.0 kg | 580478000 )
Universal-Geländerbügel
|
Galvanised Height: 20 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Scaffold tube connection ( 0.27 kg | 584375000 )
Gerüstrohranschluss
|
Galvanised Height: 7 cm |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Framax pouring platform U 1.25/2.70m ( 127.5 kg | 588377000 )
Framax-Betonierbühne U 1,25/2,70m
|
Steel parts galvanised Timber parts varnished yellow Delivery condition: folded closed |
|
FF20 adapter for Framax pouring platform U ( 6.8 kg | 588381000 )
FF20-Adapter für Framax-Betonierbühne U
|
Galvanised Length: 34 cm |
|
Top50 adapter for Framax pouring platform U ( 18.5 kg | 588384000 )
Top50-Adapter für Framax-Betonierbühne U
|
Galvanised Width: 75 cm Height: 134 cm |
|
Handrail post XP 1.20m ( 4.1 kg | 586460000 )
Geländersteher XP 1,20m
|
Galvanised Height: 118 cm |
|
Toeboard holder XP 1.20m ( 0.64 kg | 586461000 )
Fußwehrhalter XP 1,20m
|
Galvanised Height: 21 cm |
|
Railing clamp XP 40cm ( 7.7 kg | 586456000 )
Geländerzwinge XP 40cm
|
Galvanised Height: 73 cm |
|
Protective grating XP 2.70x1.20m ( 22.2 kg | 586450000 )
Protective grating XP 2.50x1.20m ( 20.5 kg | 586451000 )
Protective grating XP 2.00x1.20m ( 17.4 kg | 586452000 )
Protective grating XP 1.20x1.20m ( 12.0 kg | 586453000 )
Schutzgitter XP
|
Galvanised |
|
Velcro fastener 30x380mm ( 0.02 kg | 586470000 )
Klettverschluss 30x380mm
|
Yellow |
|
Timber-beam formwork adapter XP ( 9.5 kg | 586476000 )
Trägerschalungsadapter XP
|
Galvanised Height: 83.5 cm |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Handrail clamp T ( 12.3 kg | 584381000 )
Schutzgeländerzwinge T
|
Galvanised Height: 122 - 155 cm |
|
Handrail post 1.10m ( 5.5 kg | 584384000 )
Schutzgeländer 1,10m
|
Galvanised Height: 134 cm |
|
Attachable sleeve 24mm ( 0.03 kg | 584385000 )
Steckhülse 24mm
|
PVC PE Grey Length: 16.5 cm Diameter: 2.7 cm |
|
Screw sleeve 20.0 ( 0.03 kg | 584386000 )
Schraubhülse 20,0
|
PP Yellow Length: 20 cm Diameter: 3.1 cm |
|
Side handrail clamping unit T ( 29.1 kg | 580488000 )
Seitenschutzgeländer T
|
Galvanised Length: 115 - 175 cm Height: 112 cm |
|
Handrail post T 1.80m ( 17.7 kg | 584373000 )
Einschubgeländer T 1,80m
|
Galvanised |
|
Toeboard holder T 1.80m ( 0.53 kg | 584392000 )
Fußwehrhalter T 1,80m
|
Galvanised Height: 13.5 cm |
|
Doka 4-part chain 3.20m ( 15.0 kg | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Lifting chain 100cm 15kN ( 1.8 kg | 587548000 )
Anschlagkette 100cm 15kN
|
Length: 103 cm Follow the directions in the "Operating Instructions"! |
|
Dokamatic lifting strap 13.00m ( 10.5 kg | 586231000 )
Dokamatic-Umsetzgurt 13,00m
|
Green Follow the directions in the "Operating Instructions"! |
|
Lifting bracket ( 6.2 kg | 580460000 )
Kranöse
|
Galvanised Height: 59 cm |
|
Height adjuster WS10-WU16 ( 10.1 kg | 580206500 )
Höhenjustierung WS10-WU16
|
Galvanised Height: 45 cm |
|
Supporting construction ( 10.7 kg | 588477000 )
Abstützwinkel
|
Galvanised Length: 66 cm Width: 37 cm Height: 91 cm |
|
Doka personal fall-arrest set ( 3.6 kg | 583022000 )
Doka-Auffanggurt
|
Follow the directions in the "Operating Instructions"! |
|
Ladder system XS
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Securing barrier XS ( 4.9 kg | 588669000 )
Sicherungsschranke XS
|
Galvanised Length: 80 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Ladder cage exit XS ( 17.0 kg | 588666000 )
Rückenschutz-Ausstieg XS
|
Galvanised Height: 132 cm |
|
Platform system Xsafe plus
Xsafe plus platform 2.00m ( 122.5 kg | 586407000 )
Xsafe plus-Bühne 2,00m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus platform 1.00m ( 78.5 kg | 586409000 )
Xsafe plus-Bühne 1,00m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus side railing ( 20.5 kg | 586410000 )
Xsafe plus-Seitengeländer
|
Galvanised Width: 88 cm Height: 110 cm |
|
Xsafe plus railing-closure post ( 3.4 kg | 586411000 )
Xsafe plus-Geländerausgleich
|
Galvanised Height: 111 cm |
|
Xsafe plus platform extension 0.60m ( 43.4 kg | 586418000 )
Xsafe plus-Bühnenverlängerung 0,60m
|
Galvanised Height: 120 cm Delivery condition: railing included |
|
Xsafe plus platform transition ( 26.5 kg | 586419000 )
Xsafe plus-Bühnenübergang
|
Galvanised Length: 85 cm Width: 48 cm |
|
Xsafe plus handrail extension ( 4.3 kg | 586420000 )
Xsafe plus-Geländerverlängerung
|
Galvanised Length: 81 cm Width: 53 cm |
|
Xsafe plus counter railing 2.00m ( 20.3 kg | 586428000 )
Xsafe plus counter railing 1.00m ( 15.5 kg | 586430000 )
Xsafe plus-Gegengeländer
|
Galvanised Height: 200 cm Delivery condition: folded closed |
|
Xsafe plus supporting strut EB ( 8.0 kg | 586412500 )
Xsafe plus-Stützenstrebe EB
|
Galvanised Length: 91 - 99 cm |
|
Xsafe plus waling connector ( 6.1 kg | 586433000 )
Xsafe plus-Riegelverbinder
|
Galvanised Height: 33 cm |
|
Xsafe plus lifting adapter for beam formwork ( 14.0 kg | 586439000 )
Xsafe plus-Umsetzadapter Trägerschalung
|
Galvanised Width: 66 cm Height: 89 cm |
|
Xsafe plus telescopic ladder ( 15.0 kg | 586421000 )
Xsafe plus-Teleskopleiter
|
Galvanised Height: 158 - 274 cm |
|
Xsafe plus ladder extension 1.15m ( 7.0 kg | 586422000 )
Xsafe plus-Leiternverlängerung 1,15m
|
Galvanised Height: 126 cm |
|
Xsafe plus ladder support ( 2.1 kg | 586423000 )
Xsafe plus-Leiternstütze
|
Galvanised Height: 55 cm |
|
Xsafe plus ladder starter piece ( 6.8 kg | 586424000 )
Xsafe plus-Leiternhalter
|
Galvanised Length: 95 cm |
|
Tie rod system 15.0
Tie rod 15.0mm galvanised 0.50m ( 0.72 kg | 581821000 )
Tie rod 15.0mm galvanised 0.75m ( 1.1 kg | 581822000 )
Tie rod 15.0mm galvanised 1.00m ( 1.4 kg | 581823000 )
Tie rod 15.0mm galvanised 1.25m ( 1.8 kg | 581826000 )
Tie rod 15.0mm galvanised 1.50m ( 2.2 kg | 581827000 )
Tie rod 15.0mm galvanised 1.75m ( 2.5 kg | 581828000 )
Tie rod 15.0mm galvanised 2.00m ( 2.9 kg | 581829000 )
Tie rod 15.0mm galvanised 2.50m ( 3.6 kg | 581852000 )
Tie rod 15.0mm galvanised .....m ( 1.4 kg | 581824000 )
Tie rod 15.0mm non-treated 0.50m ( 0.73 kg | 581870000 )
Tie rod 15.0mm non-treated 0.75m ( 1.1 kg | 581871000 )
Tie rod 15.0mm non-treated 1.00m ( 1.4 kg | 581874000 )
Tie rod 15.0mm non-treated 1.25m ( 1.8 kg | 581886000 )
Tie rod 15.0mm non-treated 1.50m ( 2.1 kg | 581876000 )
Tie rod 15.0mm non-treated 1.75m ( 2.5 kg | 581887000 )
Tie rod 15.0mm non-treated 2.00m ( 2.9 kg | 581875000 )
Tie rod 15.0mm non-treated 2.50m ( 3.6 kg | 581877000 )
Tie rod 15.0mm non-treated 3.00m ( 4.3 kg | 581878000 )
Tie rod 15.0mm non-treated 3.50m ( 5.0 kg | 581888000 )
Tie rod 15.0mm non-treated 4.00m ( 5.7 kg | 581879000 )
Tie rod 15.0mm non-treated 5.00m ( 7.2 kg | 581880000 )
Tie rod 15.0mm non-treated 6.00m ( 8.6 kg | 581881000 )
Tie rod 15.0mm non-treated 7.50m ( 10.7 kg | 581882000 )
Tie rod 15.0mm non-treated .....m ( 1.4 kg | 581873000 )
Ankerstab 15,0mm
|
|
|
Wing nut 15.0 ( 0.31 kg | 581961000 )
Flügelmutter 15,0
|
Galvanised Length: 10 cm Height: 5 cm Width-across: 27 mm |
|
Super plate 15.0 ( 1.1 kg | 581966000 )
Superplatte 15,0
|
Galvanised Height: 6 cm Diameter: 12 cm Width-across: 27 mm |
|
Plastic tube 22mm 2.50m ( 0.45 kg | 581951000 )
Kunststoffrohr 22mm 2,50m
|
PVC Grey Diameter: 2.6 cm |
|
Universal cone 22mm ( 0.005 kg | 581995000 )
Universal-Konus 22mm
|
Grey Diameter: 4 cm |
|
Plug 22mm ( 0.003 kg | 581953000 )
Verschlussstopfen 22mm
|
PE Grey |
|
Distance piece 20cm ( 0.04 kg | 581907000 )
Distance piece 25cm ( 0.05 kg | 581908000 )
Distance piece 30cm ( 0.06 kg | 581909000 )
Distanzhalter
|
PE Grey Blue |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Tie-rod wrench 15.0/20.0 ( 1.9 kg | 580594000 )
Ankerstabschlüssel 15,0/20,0
|
Galvanised Length: 37 cm Diameter: 8 cm |
|
Friction type ratchet SW27 ( 0.49 kg | 581855000 )
Freilaufknarre SW27
|
Manganese-phosphated Length: 30 cm |
|
Box spanner 27 0.65m ( 1.9 kg | 581854000 )
Steckschlüssel 27 0,65m
|
Galvanised |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
