The crane lifting points are integrated into the stacking flanges of the elements. Consequently, there are no protruding parts to obstruct pouring.
|
|
NOTICE ▪ Spread angle βof slinging chains: max. 30°. ▪ Brace the formwork in a windproof manner when erecting it or when it is temporarily placed in the standing position. ▪ Do not set down the gang-form on the platform.
|
However, for your own safety, please observe the following points:

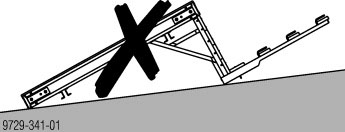

▪ Only set down the elements, or stack of elements, on flat surfaces that are capable of supporting the load.
▪ Do not detach an element from the crane until it has been safely set down.
▪ Never climb onto the stack of elements.
|
Permissible total weight of each unit for repositioning: |
|
Permissible total weights |
|||
|---|---|---|---|
|
1500 kg |
2000 kg |
||
|
|
|
|
(A) Multi-purpose waling WS10 Top50
.
