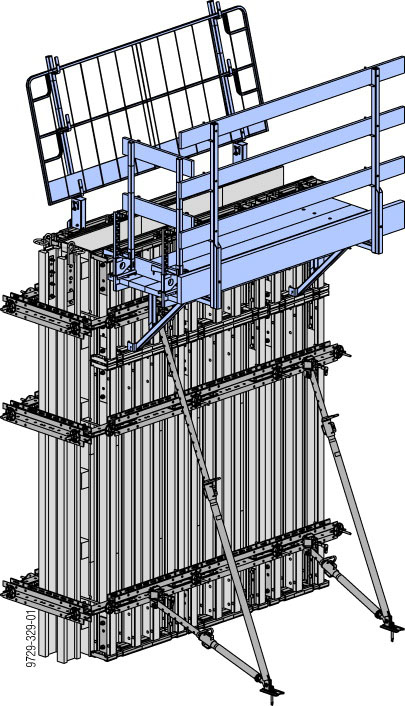

Pouring platforms with single brackets
Doka brackets can be used to make pouring platforms that can easily be assembled by hand.
They can be attached to any point on the Doka beam. This also makes it possible to erect intermediate platforms.
|
Precondition for use |
|---|
|
Observe all applicable safety regulations. |
|
Only fit pouring platforms to formwork structures of adequate stability ensuring that the expected loads can be taken. |
|
Ensure that the formwork gang is sufficiently rigid. |
|
Brace the formwork in a windproof manner when erecting it or when it is temporarily placed in the standing position. |
|
|
NOTICE The brackets must be secured against accidental lift-out. |
Note:
The plank and board thicknesses stated comply with the EN 338 C24 timber.
Observe all national regulations applying to deck and guardrail boards.
.
