Component overview
[kg]
Article N°
Multi-purpose waling WS10 Top50 0.50m ( 10.2 kg | 580001000 )
Multi-purpose waling WS10 Top50 0.75m ( 14.9 kg | 580002000 )
Multi-purpose waling WS10 Top50 1.00m ( 19.6 kg | 580003000 )
Multi-purpose waling WS10 Top50 1.25m ( 24.7 kg | 580004000 )
Multi-purpose waling WS10 Top50 1.50m ( 29.7 kg | 580005000 )
Multi-purpose waling WS10 Top50 1.75m ( 35.0 kg | 580006000 )
Multi-purpose waling WS10 Top50 2.00m ( 38.9 kg | 580007000 )
Multi-purpose waling WS10 Top50 2.25m ( 44.2 kg | 580008000 )
Multi-purpose waling WS10 Top50 2.50m ( 48.7 kg | 580009000 )
Multi-purpose waling WS10 Top50 2.75m ( 54.2 kg | 580010000 )
Multi-purpose waling WS10 Top50 3.00m ( 60.2 kg | 580011000 )
Multi-purpose waling WS10 Top50 3.50m ( 68.4 kg | 580012000 )
Multi-purpose waling WS10 Top50 4.00m ( 79.4 kg | 580013000 )
Multi-purpose waling WS10 Top50 4.50m ( 89.1 kg | 580014000 )
Multi-purpose waling WS10 Top50 5.00m ( 102.0 kg | 580015000 )
Multi-purpose waling WS10 Top50 5.50m ( 112.4 kg | 580016000 )
Multi-purpose waling WS10 Top50 6.00m ( 118.0 kg | 580017000 )
Mehrzweckriegel WS10 Top50
|
Painted blue |
|
Multi-purpose waling WU12 Top50 1.00m ( 25.3 kg | 580018000 )
Multi-purpose waling WU12 Top50 1.25m ( 32.0 kg | 580019000 )
Multi-purpose waling WU12 Top50 1.50m ( 37.5 kg | 580020000 )
Multi-purpose waling WU12 Top50 1.75m ( 44.2 kg | 580021000 )
Multi-purpose waling WU12 Top50 2.00m ( 50.0 kg | 580022000 )
Multi-purpose waling WU12 Top50 2.50m ( 63.1 kg | 580023000 )
Multi-purpose waling WU12 Top50 3.00m ( 75.7 kg | 580024000 )
Multi-purpose waling WU12 Top50 3.50m ( 90.7 kg | 580025000 )
Multi-purpose waling WU12 Top50 4.00m ( 103.4 kg | 580026000 )
Mehrzweckriegel WU12 Top50
|
Painted blue |
|
Multi-purpose waling SL-1 WU16 0.625m ( 24.0 kg | 582875000 )
Multi-purpose waling SL-1 WU16 0.75m ( 26.5 kg | 582876000 )
Multi-purpose waling SL-1 WU16 1.00m ( 35.0 kg | 582877000 )
Multi-purpose waling SL-1 WU16 1.25m ( 44.5 kg | 582878000 )
Multi-purpose waling SL-1 WU16 1.50m ( 53.0 kg | 582879000 )
Multi-purpose waling SL-1 WU16 1.75m ( 67.0 kg | 582880000 )
Multi-purpose waling SL-1 WU16 2.00m ( 72.1 kg | 582881000 )
Multi-purpose waling SL-1 WU16 2.25m ( 86.0 kg | 582882000 )
Multi-purpose waling SL-1 WU16 2.50m ( 89.9 kg | 582883000 )
Multi-purpose waling SL-1 WU16 3.00m ( 107.0 kg | 582888000 )
Mehrzweckriegel SL-1
|
Painted blue |
|
Corner waling 20 ( 23.5 kg | 580031000 )
Eckriegel 20
|
Painted blue Leg length: 52 cm |
|
Shaft corner waling WS10 Top50 .....m ( 20.5 kg | 580069000 )
Eckwandriegel WS10 Top50 .....m
|
Painted blue Project-specific! Also available in profiles of thickness U120 (Order designation: WU12). |
|
Angular waling WS10 Top50 .....m ( 21.5 kg | 580068000 )
Winkelriegel WS10 Top50 .....m
|
Painted blue Project-specific! Also available in profiles of thickness U120 (Order designation: WU12). |
|
Flange clamp H20 ( 1.0 kg | 580135000 )
Flanschklammer H20
|
Galvanised Width: 13 cm Width-across: 19 mm |
|
Flange clamp G ( 1.1 kg | 580120000 )
Flanschklammer G
|
Galvanised Width: 13 cm Width-across: 19 mm |
|
Flange claw ( 1.0 kg | 580137000 )
Flanschkralle
|
Galvanised Width: 17 cm Width-across: 18 mm |
|
Waling clamp H20 ( 0.22 kg | 580114000 )
Riegelklammer H20
|
Galvanised Width: 8 cm Width-across: 13 mm |
|
Waling clamp 2G ( 0.45 kg | 580118000 )
Riegelklammer 2G
|
Galvanised Width: 7.7 cm Height: 12 cm Width-across: 19 mm |
|
Beam screw S 8/70 ( 0.06 kg | 580116500 )
Riegelverschraubung S 8/70
|
Galvanised Length: 8 cm Width-across: 13 mm |
|
Beam screw H 8/70 ( 0.06 kg | 580117000 )
Riegelverschraubung H 8/70
|
Galvanised Length: 8 cm Width-across: 13 mm |
|
Fastening plate ( 2.7 kg | 580110000 )
Anschraublasche
|
Painted blue Width: 13 cm Height: 15 cm Width-across: 24 mm |
|
Protective cap H20 ( 0.36 kg | 587248000 )
Stirnschuh H20
|
Galvanised Length: 20 cm Width: 7 cm |
|
Lifting bracket ( 6.2 kg | 580460000 )
Kranöse
|
Galvanised Height: 59 cm |
|
Splice plate Top50 Z ( 8.5 kg | 580074000 )
Verbindungslasche Top50 Z
|
Painted blue Length: 76 cm |
|
Formwork element connector FF20/50 ( 6.3 kg | 587530000 )
Elementverbinder FF20/50
|
Painted blue Length: 55 cm |
|
Formwork element connector FF20/50 Z ( 6.0 kg | 587533000 )
Elementverbinder FF20/50 Z
|
Painted blue Length: 55 cm |
|
Adjustable waling extension 1.40m Top50 ( 15.0 kg | 580075000 )
Ausgleichslasche 1,40m Top50
|
Painted blue |
|
Adjustable waling extension FF20/50 ( 9.1 kg | 587532000 )
Ausgleichslasche FF20/50
|
Painted blue Length: 87 cm |
|
Beam clamp Top50 ( 1.2 kg | 580081000 )
Trägerklammer Top50
|
Painted blue Height: 15 cm |
|
Anchoring plate FF20/50 ( 6.6 kg | 587531000 )
Ankerungslasche FF20/50
|
Painted blue Length: 55 cm |
|
Half splice plate ( 5.2 kg | 580267000 )
Halblasche
|
Painted blue Length: 78 cm |
|
Splice plate with join adjustment ( 13.8 kg | 580215000 )
Verbindungslasche mit Fugenjustierung
|
Painted blue Length: 76 cm |
|
Offset plate FF20 ( 6.2 kg | 587534000 )
Versatzlasche FF20
|
Painted blue Length: 35 cm Width: 18 cm Height: 4 cm |
|
Internal angle plate H20 Top50 ( 11.3 kg | 580035000 )
Innenecklasche H20 Top50
|
Painted blue Length: 80 cm Width: 38 cm |
|
Corner plate H20/H36 Top50 ( 10.0 kg | 580078000 )
Ecklasche H20/H36 Top50
|
Painted blue Length: 49.7 cm Width: 45.1 cm |
|
Shaft waling squaring plate ( 9.6 kg | 580262000 )
Verschiebelasche
|
Painted blue Leg length: 60 cm |
|
Transition plate 18mm ( 16.0 kg | 588654000 )
Transition plate 21mm ( 15.8 kg | 588656000 )
Transition plate 27mm ( 14.7 kg | 588658000 )
Übergangslasche
|
Painted blue Length: 54 cm Width: 30 cm Height: 51 cm |
|
Waling connector SL-1 WU16 0.75m ( 31.0 kg | 582886000 )
Riegelverbinder SL-1 WU16 0,75m
|
Galvanised Length: 75 cm |
|
Corner spindle ( 17.5 kg | 580264000 )
Eckspindel
|
Galvanised Length: 65 cm Height: 31 cm |
|
Corner connecting plate 90/50 ( 13.8 kg | 580603000 )
Winkellasche 90/50
|
Painted blue Length: 51 cm Width: 40 cm |
|
Universal angle tie bracket ( 4.4 kg | 580604000 )
Universal-Winkelspanner
|
Painted blue Length: 20 cm |
|
Angle tie bracket 20.0 SL-1 WU16 ( 8.1 kg | 587543000 )
Winkelspanner 20,0 SL-1 WU16
|
Painted blue Length: 24 cm |
|
Swivel joint plate ( 20.0 kg | 587542000 )
Drehgelenklasche
|
Galvanised Length: 155 cm |
|
Connecting pin 10cm ( 0.34 kg | 580201000 )
Verbindungsbolzen 10cm
|
Galvanised Length: 14 cm |
|
Connecting pin 25cm ( 0.58 kg | 580202000 )
Verbindungsbolzen 25cm
|
Galvanised Length: 25 cm |
|
Spring cotter 5mm ( 0.03 kg | 580204000 )
Federvorstecker 5mm
|
Galvanised Length: 13 cm |
|
Stacking plate H20 ( 8.3 kg | 580310000 )
Aufstocklasche H20
|
Galvanised Length: 68.8 cm Width-across: 30 mm |
|
Inside corner plate 3.00m ( 53.0 kg | 580282000 )
Inside corner plate 4.00m ( 69.0 kg | 580284000 )
Eckschiene
|
Powder-coated blue |
|
Joint plate 3.00m ( 36.8 kg | 580332000 )
Joint plate 4.00m ( 47.7 kg | 580334000 )
Ausgleichsschiene
|
Powder-coated blue |
|
T ledge 21/42 2.00m ( 0.34 kg | 580196000 )
T-Leiste 21/42 2,00m
|
Grey |
|
Box-out clamp 24cm ( 3.4 kg | 580063000 )
Box-out clamp 25cm ( 3.4 kg | 580064000 )
Box-out clamp 30cm ( 3.9 kg | 580065000 )
Aussparungsklemme
|
Galvanised Leg length: 10 cm |
|
Box-out clamp type 1 .....cm ( 17.4 kg | 580066000 )
Aussparungsklemme Typ 1 .....cm
|
Painted blue Leg length: 10 cm |
|
Box-out clamp type 2 .....cm ( 17.4 kg | 580067000 )
Aussparungsklemme Typ 2 .....cm
|
Painted blue Leg length: 10 cm |
|
Wall-formwork support angle ( 6.6 kg | 588967000 )
Auflagewinkel Wandschalung
|
Galvanised Length: 15.8 cm Width: 12 cm Height: 11.2 cm |
|
Panel strut 340 IB ( 24.3 kg | 580365000 )
Elementstütze 340 IB
consisting of:
(A)Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Galvanised
Length: 190.8 - 341.8 cm
(B)Adjusting strut 120 IB ( 7.6 kg | 588248500 )
Galvanised
Length: 81.5 - 130.6 cm
|
Galvanised Delivery condition: folded closed |
|
Panel strut 540 IB ( 41.4 kg | 580366000 )
Elementstütze 540 IB
consisting of:
(A)Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Galvanised
Length: 310.5 - 549.2 cm
(B)Adjusting strut 220 IB ( 10.9 kg | 588251500 )
Galvanised
Length: 172.5 - 221.1 cm
|
Galvanised Delivery condition: folded closed |
|

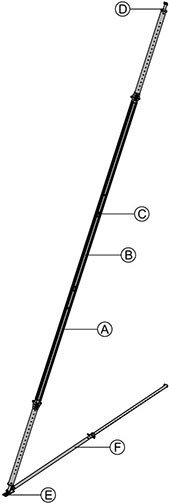

Eurex 60 550
depending on length, comprising:
(A)Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Powder-coated blue
Aluminium
Length: 343 - 553 cm
(B)Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Powder-coated blue
Aluminium
Length: 250 cm
(C)Coupler Eurex 60 ( 8.6 kg | 582652000 )
Aluminium
Length: 100 cm
Diameter: 12.8 cm
(D)Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Galvanised
Length: 15 cm
Width: 15 cm
Height: 30 cm
(E)Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Galvanised
Length: 31 cm
Width: 12 cm
Height: 33 cm
(F)Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Galvanised
Length: 303.5 - 542.2 cm
|
Delivery condition: separate parts |
|
Prop head EB ( 3.1 kg | 588244500 )
Stützenkopf EB
|
Galvanised Length: 40.8 cm Width: 11.8 cm Height: 17.6 cm |
|
Prop head Eurex 60 Top50 ( 7.1 kg | 582665000 )
Stützenkopf Eurex 60 Top50
|
Galvanised Height: 50 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Universal bracket 60 ( 14.0 kg | 580477000 )
Universal-Konsole 60
|
Galvanised Length: 86 cm Height: 181 cm |
|
Universal bracket 90 ( 30.4 kg | 580476000 )
Universal-Konsole 90
|
Galvanised Length: 121 cm Height: 235 cm |
|
Universal corner bracket 90 right ( 29.5 kg | 580071000 )
Universal corner bracket 90 left ( 29.5 kg | 580070000 )
Universal-Eckkonsole 90
|
Galvanised Length: 152 cm Height: 235 cm |
|
Top scaffold bracket L ( 12.6 kg | 587153500 )
Betonierkonsole L
|
Galvanised Length: 101 cm Height: 159 cm |
|
Top scaffold bracket L painted ( 12.0 kg | 587153000 )
Betonierkonsole L lackiert
|
Painted blue Length: 101 cm Height: 159 cm |
|
Universal railing shackle ( 3.0 kg | 580478000 )
Universal-Geländerbügel
|
Galvanised Height: 20 cm |
|
Scaffold tube connection ( 0.27 kg | 584375000 )
Gerüstrohranschluss
|
Galvanised Height: 7 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Xsafe plus lifting adapter for beam formwork ( 14.0 kg | 586439000 )
Xsafe plus-Umsetzadapter Trägerschalung
|
Galvanised Width: 66 cm Height: 89 cm |
|
Framax pouring platform U 1.25/2.70m ( 127.5 kg | 588377000 )
Framax-Betonierbühne U 1,25/2,70m
|
Steel parts galvanised Timber parts varnished yellow Delivery condition: folded closed |
|
Top50 adapter for Framax pouring platform U ( 18.5 kg | 588384000 )
Top50-Adapter für Framax-Betonierbühne U
|
Galvanised Width: 75 cm Height: 134 cm |
|
Handrail post XP 1.20m ( 4.1 kg | 586460000 )
Geländersteher XP 1,20m
|
Galvanised Height: 118 cm |
|
Toeboard holder XP 1.20m ( 0.64 kg | 586461000 )
Fußwehrhalter XP 1,20m
|
Galvanised Height: 21 cm |
|
Handrail post XP 0.60m ( 5.0 kg | 586462000 )
Geländersteher XP 0,60m
|
Galvanised Height: 68 cm |
|
Toeboard holder XP 0.60m ( 0.77 kg | 586463000 )
Fußwehrhalter XP 0,60m
|
Galvanised Height: 21 cm |
|
Protective grating XP 2.70x1.20m ( 22.2 kg | 586450000 )
Protective grating XP 2.50x1.20m ( 20.5 kg | 586451000 )
Protective grating XP 2.00x1.20m ( 17.4 kg | 586452000 )
Protective grating XP 1.20x1.20m ( 12.0 kg | 586453000 )
Schutzgitter XP
|
Galvanised |
|
Protective grating XP 2.70x0.60m ( 10.1 kg | 586466000 )
Protective grating XP 2.50x0.60m ( 9.5 kg | 586472000 )
Protective grating XP 2.00x0.60m ( 8.0 kg | 586473000 )
Protective grating XP 1.20x0.60m ( 5.0 kg | 586491000 )
Schutzgitter XP
|
Galvanised |
|
Velcro fastener 30x380mm ( 0.02 kg | 586470000 )
Klettverschluss 30x380mm
|
Yellow |
|
Railing clamp XP 40cm ( 7.7 kg | 586456000 )
Geländerzwinge XP 40cm
|
Galvanised Height: 73 cm |
|
Timber-beam formwork adapter XP ( 9.5 kg | 586476000 )
Trägerschalungsadapter XP
|
Galvanised Height: 83.5 cm |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Side handrail clamping unit T ( 29.1 kg | 580488000 )
Seitenschutzgeländer T
|
Galvanised Length: 115 - 175 cm Height: 112 cm |
|
Handrail post T 1.80m ( 17.7 kg | 584373000 )
Einschubgeländer T 1,80m
|
Galvanised |
|
Toeboard holder T 1.80m ( 0.53 kg | 584392000 )
Fußwehrhalter T 1,80m
|
Galvanised Height: 13.5 cm |
|
Handrail post 1.50m ( 12.4 kg | 582754000 )
Geländer 1,50m
|
Galvanised |
|
Doka 4-part chain 3.20m ( 15.0 kg | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Universal strut T5/5 .....mm ( 6.5 kg | 584311000 )
Strebe T5/5 .....mm
|
Painted blue Weight per linear metre |
|
Spindle strut GS T5 65/101cm ( 9.1 kg | 584356000 )
Spindelstrebe GS T5 65/101cm
|
Galvanised |
|
Spindle strut T6 73/110cm ( 10.2 kg | 584355000 )
Spindle strut T6 100/150cm ( 12.5 kg | 584323000 )
Spindelstrebe T6
|
Galvanised |
|
Spindle strut GS T6 95/140cm ( 10.3 kg | 584340000 )
Spindelstrebe GS T6 95/140cm
|
Galvanised |
|
Spindle strut T7 75/110cm ( 13.2 kg | 584308000 )
Spindle strut T7 100/150cm ( 16.8 kg | 584309000 )
Spindle strut T7 150/200cm ( 21.6 kg | 584324000 )
Spindle strut T7 200/250cm ( 26.2 kg | 584325000 )
Spindle strut T7 250/300cm ( 29.4 kg | 584326000 )
Spindle strut T7 305/355cm ( 35.0 kg | 584327000 )
Spindelstrebe T7
|
Galvanised |
|
Spindle strut T10 350/400cm ( 57.5 kg | 584328000 )
Spindle strut T10 .....mm ( 16.9 kg | 584391000 )
Spindelstrebe T10
|
|
|
Universal spindle foot T8 ( 8.6 kg | 584314000 )
Universal-Spindelfuß T8
|
Painted blue Galvanised Height: 30 cm |
|
Height adjuster for formwork beams ( 11.9 kg | 580218000 )
Höhenjustierung für Schalungsträger
|
Galvanised Height: 46 cm |
|
Height adjuster WS10-WU16 ( 10.1 kg | 580206500 )
Höhenjustierung WS10-WU16
|
Galvanised Height: 45 cm |
|
Adjusting spindle M36 ( 6.2 kg | 500663002 )
Höhenjustierspindel M36
|
Galvanised Length: 31 cm Height: 29.2 cm Width-across: 24 mm |
|
Universal suspension head ( 14.0 kg | 580408000 )
Universal-Aufhängekopf
|
Galvanised Length: 36.5 cm Width: 16 cm Height: 32.1 cm |
|
Safety wedge for universal suspension head ( 0.70 kg | 580409000 )
Sicherungskeil Universal-Aufhängekopf
|
Galvanised Length: 30 cm |
|
Suspension head WS10 ( 8.1 kg | 580449000 )
Aufhängekopf WS10
|
Galvanised Length: 21 cm Width: 18 cm Height: 23 cm |
|
Universal support Top50 .....mm ( 11.1 kg | 584312000 )
Tragwerklasche Top50 .....mm
|
Painted blue Weight per linear metre |
|
Adjusting plate T ( 6.5 kg | 584393000 )
Justierlasche T
|
Painted blue Length: 23.5 cm |
|
Tool box GF ( 6.5 kg | 580390000 )
GF-Werkzeugbox
included in scope of supply:
(A)Reversible ratchet 1/2" ( 0.73 kg | 580580000 )
Galvanised
Length: 30 cm
(B)Fork wrench 13/17 ( 0.08 kg | 580577000 )
(C)Fork wrench 22/24 ( 0.22 kg | 580587000 )
(D)Fork wrench 30/32 ( 0.80 kg | 580897000 )
(E)Ring spanner 17/19 ( 0.27 kg | 580590000 )
(F)Extension 11cm 1/2" ( 0.20 kg | 580581000 )
(G)Extension 22cm 1/2" ( 0.31 kg | 580582000 )
(H)Universal joint coupling 1/2" ( 0.16 kg | 580583000 )
(I)Box nut 19 1/2" L ( 0.16 kg | 580598000 )
(J)Box nut 13 1/2" ( 0.06 kg | 580576000 )
(K)Box nut 24 1/2" ( 0.12 kg | 580584000 )
(L)Box nut 30 1/2" ( 0.20 kg | 580575000 )
|
|
|
Mounting tool for form-ply protector ( 0.96 kg | 580222000 )
Montagewerkzeug Schalhautschutz
|
Galvanised Width: 12 cm Height: 12 cm |
|
Filler neck GF SCC ( 39.0 kg | 580217000 )
GF-Füllstutzen SCC
|
Galvanised Length: 66 cm |
|
Panel closure tool D125 SCC ( 18.0 kg | 588127000 )
Sperrschieber D125 SCC
|
Galvanised Length: 18 cm Width: 33 cm Height: 27 cm |
|
Assembly angle Top50 ( 6.7 kg | 580082000 )
Montagelasche Top50
|
Galvanised Length: 53.2 cm Width: 48.6 cm |
|
Strip tensioner B 6.00m ( 3.3 kg | 580394500 )
Bandzwinge B 6,00m
|
Galvanised |
|
Strip tensioner B 5.00m ( 3.5 kg | 580394000 )
Bandzwinge B 5,00m
|
Galvanised |
|
Positioning rail .....m ( 1.8 kg | 580079000 )
Führungsschiene .....m
|
Painted blue Weight per linear metre |
|
Hole gauge Top50 ( 2.9 kg | 580080000 )
Bohrplatte Top50
|
Painted blue Length: 17 cm Width: 15 cm |
|
Angle connector 9x5cm ( 0.22 kg | 580381000 )
Winkelverbinder 9x5cm
|
Galvanised |
|
Rafter plate right ( 0.09 kg | 582521000 )
Rafter plate left ( 0.09 kg | 582522000 )
Sparrenpfettenanker
|
Galvanised Length: 17 cm |
|
Doka beam H20 top N 1.80m ( 8.5 kg | 189011000 )
Doka beam H20 top N 2.45m ( 11.5 kg | 189012000 )
Doka beam H20 top N 2.65m ( 12.5 kg | 189013000 )
Doka beam H20 top N 2.90m ( 13.6 kg | 189014000 )
Doka beam H20 top N 3.30m ( 15.5 kg | 189015000 )
Doka beam H20 top N 3.60m ( 16.9 kg | 189016000 )
Doka beam H20 top N 3.90m ( 18.3 kg | 189017000 )
Doka beam H20 top N 4.50m ( 21.2 kg | 189018000 )
Doka beam H20 top N 4.90m ( 23.0 kg | 189019000 )
Doka beam H20 top N 5.90m ( 27.7 kg | 189020000 )
Doka beam H20 top N .....m ( 4.7 kg | 189010000 )
Doka beam H20 top N .....m BS ( 4.7 kg | 189021000 )
Doka-Träger H20 top N
|
Varnished yellow |
|
Doka beam H20 top P 1.80m ( 9.5 kg | 189701000 )
Doka beam H20 top P 2.45m ( 13.0 kg | 189702000 )
Doka beam H20 top P 2.65m ( 14.1 kg | 189703000 )
Doka beam H20 top P 2.90m ( 15.4 kg | 189704000 )
Doka beam H20 top P 3.30m ( 17.5 kg | 189705000 )
Doka beam H20 top P 3.60m ( 19.1 kg | 189706000 )
Doka beam H20 top P 3.90m ( 20.7 kg | 189707000 )
Doka beam H20 top P 4.50m ( 23.9 kg | 189708000 )
Doka beam H20 top P 4.90m ( 26.0 kg | 189709000 )
Doka beam H20 top P 5.90m ( 31.3 kg | 189710000 )
Doka beam H20 top P .....m ( 5.3 kg | 189700000 )
Doka beam H20 top P .....m BS ( 5.3 kg | 189711000 )
Doka-Träger H20 top P
|
Varnished yellow |
|
Doka beam H20 eco N 1.80m ( 8.5 kg | 189283000 )
Doka beam H20 eco N 2.45m ( 11.5 kg | 189271000 )
Doka beam H20 eco N 2.65m ( 12.5 kg | 189272000 )
Doka beam H20 eco N 2.90m ( 13.6 kg | 189273000 )
Doka beam H20 eco N 3.30m ( 15.5 kg | 189284000 )
Doka beam H20 eco N 3.60m ( 16.9 kg | 189285000 )
Doka beam H20 eco N 3.90m ( 18.3 kg | 189276000 )
Doka beam H20 eco N 4.50m ( 21.2 kg | 189286000 )
Doka beam H20 eco N 4.90m ( 23.0 kg | 189277000 )
Doka beam H20 eco N 5.90m ( 27.7 kg | 189287000 )
Doka beam H20 eco N .....m ( 4.7 kg | 189299000 )
Doka beam H20 eco N .....m BS ( 4.7 kg | 189289000 )
Doka-Träger H20 eco N
|
Varnished yellow |
|
Doka beam H20 eco N 1.25m ( 5.9 kg | 189282000 )
Doka beam H20 eco N 12.00m ( 56.4 kg | 189288000 )
Doka-Träger H20 eco N
|
Varnished yellow |
|
Doka beam H20 eco P 1.80m ( 9.5 kg | 189940000 )
Doka beam H20 eco P 2.45m ( 13.0 kg | 189936000 )
Doka beam H20 eco P 2.65m ( 14.1 kg | 189937000 )
Doka beam H20 eco P 2.90m ( 15.4 kg | 189930000 )
Doka beam H20 eco P 3.30m ( 17.5 kg | 189941000 )
Doka beam H20 eco P 3.60m ( 19.1 kg | 189942000 )
Doka beam H20 eco P 3.90m ( 20.7 kg | 189931000 )
Doka beam H20 eco P 4.50m ( 23.9 kg | 189943000 )
Doka beam H20 eco P 4.90m ( 26.0 kg | 189932000 )
Doka beam H20 eco P 5.90m ( 31.3 kg | 189955000 )
Doka beam H20 eco P 9.00m ( 46.8 kg | 189956000 )
Doka beam H20 eco P .....m ( 5.3 kg | 189999000 )
Doka beam H20 eco P .....m BS ( 5.3 kg | 189957000 )
Doka-Träger H20 eco P
|
Varnished yellow |
|
Doka beam H20 eco P 1.25m ( 6.6 kg | 189939000 )
Doka beam H20 eco P 12.00m ( 63.6 kg | 189993000 )
Doka-Träger H20 eco P
|
Varnished yellow |
|
Doka formwork sheet 3-SO 21mm 100/50cm ( 4.9 kg | 186007000 )
Doka formwork sheet 3-SO 21mm 150/50cm ( 7.3 kg | 186008000 )
Doka formwork sheet 3-SO 21mm 200/50cm ( 9.7 kg | 186009000 )
Doka formwork sheet 3-SO 21mm 250/50cm ( 12.1 kg | 186011000 )
Doka formwork sheet 3-SO 21mm 300/50cm ( 14.6 kg | 186012000 )
Doka formwork sheet 3-SO 21mm 350/50cm ( 17.0 kg | 186028000 )
Doka formwork sheet 3-SO 21mm 400/50cm ( 19.4 kg | 186013000 )
Doka formwork sheet 3-SO 21mm 450/50cm ( 21.8 kg | 186029000 )
Doka formwork sheet 3-SO 21mm 500/50cm ( 24.3 kg | 186014000 )
Doka formwork sheet 3-SO 21mm 550/50cm ( 26.7 kg | 186023000 )
Doka formwork sheet 3-SO 21mm 600/50cm ( 29.1 kg | 186027000 )
Doka formwork sheet 3-SO 21mm 100/100cm ( 9.7 kg | 186015000 )
Doka formwork sheet 3-SO 21mm 150/100cm ( 14.6 kg | 186016000 )
Doka formwork sheet 3-SO 21mm 200/100cm ( 19.4 kg | 186017000 )
Doka formwork sheet 3-SO 21mm 250/100cm ( 24.3 kg | 186018000 )
Doka formwork sheet 3-SO 21mm 300/100cm ( 29.1 kg | 186019000 )
Doka formwork sheet 3-SO 21mm 350/100cm ( 34.0 kg | 186030000 )
Doka formwork sheet 3-SO 21mm 400/100cm ( 38.8 kg | 186020000 )
Doka formwork sheet 3-SO 21mm 450/100cm ( 43.7 kg | 186031000 )
Doka formwork sheet 3-SO 21mm 500/100cm ( 48.5 kg | 186021000 )
Doka formwork sheet 3-SO 21mm 550/100cm ( 53.4 kg | 186022000 )
Doka formwork sheet 3-SO 21mm 600/100cm ( 58.2 kg | 186024000 )
Doka formwork sheet 3-SO 21mm 250/125cm ( 30.3 kg | 186097000 )
Doka formwork sheet 3-SO 21mm 300/150cm ( 43.7 kg | 186098000 )
Doka formwork sheet 3-SO 21mm 600/150cm ( 87.3 kg | 186099000 )
Doka formwork sheet 3-SO 21mm 150/50cm BS ( 7.3 kg | 186008100 )
Doka formwork sheet 3-SO 21mm 200/50cm BS ( 9.7 kg | 186009100 )
Doka formwork sheet 3-SO 21mm 250/50cm BS ( 12.1 kg | 186011100 )
Doka formwork sheet 3-SO 21mm 300/50cm BS ( 14.6 kg | 186012100 )
Doka-Schalungsplatte 3-SO 21mm
|
|
|
|
Doka formwork sheet 3-SO 27mm 100/50cm ( 6.1 kg | 187007000 )
Doka formwork sheet 3-SO 27mm 150/50cm ( 9.1 kg | 187008000 )
Doka formwork sheet 3-SO 27mm 200/50cm ( 12.1 kg | 187009000 )
Doka formwork sheet 3-SO 27mm 250/50cm ( 15.1 kg | 187011000 )
Doka formwork sheet 3-SO 27mm 300/50cm ( 18.2 kg | 187012000 )
Doka formwork sheet 3-SO 27mm 350/50cm ( 21.2 kg | 187028000 )
Doka formwork sheet 3-SO 27mm 400/50cm ( 24.2 kg | 187013000 )
Doka formwork sheet 3-SO 27mm 450/50cm ( 27.2 kg | 187029000 )
Doka formwork sheet 3-SO 27mm 500/50cm ( 30.3 kg | 187014000 )
Doka formwork sheet 3-SO 27mm 550/50cm ( 33.3 kg | 187023000 )
Doka formwork sheet 3-SO 27mm 600/50cm ( 36.3 kg | 187027000 )
Doka formwork sheet 3-SO 27mm 100/100cm ( 12.1 kg | 187015000 )
Doka formwork sheet 3-SO 27mm 150/100cm ( 18.2 kg | 187016000 )
Doka formwork sheet 3-SO 27mm 200/100cm ( 24.2 kg | 187017000 )
Doka formwork sheet 3-SO 27mm 250/100cm ( 30.3 kg | 187018000 )
Doka formwork sheet 3-SO 27mm 300/100cm ( 36.3 kg | 187019000 )
Doka formwork sheet 3-SO 27mm 350/100cm ( 42.4 kg | 187030000 )
Doka formwork sheet 3-SO 27mm 400/100cm ( 48.4 kg | 187020000 )
Doka formwork sheet 3-SO 27mm 450/100cm ( 54.5 kg | 187031000 )
Doka formwork sheet 3-SO 27mm 500/100cm ( 60.5 kg | 187021000 )
Doka formwork sheet 3-SO 27mm 550/100cm ( 66.6 kg | 187022000 )
Doka formwork sheet 3-SO 27mm 600/100cm ( 72.6 kg | 187024000 )
Doka formwork sheet 3-SO 27mm 250/125cm ( 37.8 kg | 187106000 )
Doka formwork sheet 3-SO 27mm 300/150cm ( 54.5 kg | 187107000 )
Doka formwork sheet 3-SO 27mm 600/150cm ( 108.9 kg | 187108000 )
Doka formwork sheet 3-SO 27mm 150/50cm BS ( 9.1 kg | 187008100 )
Doka formwork sheet 3-SO 27mm 200/50cm BS ( 12.1 kg | 187009100 )
Doka formwork sheet 3-SO 27mm 250/50cm BS ( 15.1 kg | 187011100 )
Doka formwork sheet 3-SO 27mm 300/50cm BS ( 18.2 kg | 187012100 )
Doka-Schalungsplatte 3-SO 27mm
|
|
|
|
Dokaplex formwork sheet 9mm 250/150cm ( 24.4 kg | 185001000 )
Dokaplex formwork sheet 9mm 300/150cm ( 29.3 kg | 185006000 )
Dokaplex-Schalungsplatte 9mm
|
|
|
|
Dokaplex formwork sheet 18mm 250/150cm ( 47.3 kg | 185011000 )
Dokaplex formwork sheet 18mm 300/150cm ( 56.7 kg | 185012000 )
Dokaplex-Schalungsplatte 18mm
|
|
|
|
Dokaplex formwork sheet 21mm 250/125cm ( 45.9 kg | 185007000 )
Dokaplex formwork sheet 21mm 250/150cm ( 55.1 kg | 185002000 )
Dokaplex formwork sheet 21mm 300/150cm ( 66.2 kg | 185003000 )
Dokaplex-Schalungsplatte 21mm
|
|
|
|
DokaPly Birch DC 18mm 62.5/250cm ( 20.2 kg | 185052000 )
DokaPly Birch DC 18mm 122/244cm ( 36.3 kg | 185085000 )
DokaPly Birch DC 18mm 125/250cm ( 38.5 kg | 185055000 )
DokaPly Birch DC 18mm 150/300cm ( 58.1 kg | 185068000 )
DokaPly Birch DC 18mm ...../.....cm ( 12.2 kg | 185086000 )
DokaPly Birch DC 18mm
|
|
|
|
DokaPly Birch SC 18mm 122/244cm ( 36.3 kg | 185078000 )
DokaPly Birch SC 18mm 125/250cm ( 38.3 kg | 185131000 )
DokaPly Birch SC 18mm 150/300cm ( 54.9 kg | 185079000 )
DokaPly Birch SC 18mm ...../.....cm ( 12.2 kg | 185080000 )
DokaPly Birch SC 18mm
|
|
|
|
DokaPly Birch DC 21mm 62.5/250cm ( 23.0 kg | 185051000 )
DokaPly Birch DC 21mm 122/244cm ( 42.6 kg | 185087000 )
DokaPly Birch DC 21mm 125/250cm ( 45.9 kg | 185024000 )
DokaPly Birch DC 21mm 150/300cm ( 66.2 kg | 185075000 )
DokaPly Birch DC 21mm ...../.....cm ( 14.3 kg | 185088000 )
DokaPly Birch DC 21mm
|
|
|
|
DokaPly Birch SC 21mm 122/244cm ( 42.6 kg | 185081000 )
DokaPly Birch SC 21mm 125/250cm ( 44.7 kg | 185082000 )
DokaPly Birch SC 21mm 150/300cm ( 64.4 kg | 185083000 )
DokaPly Birch SC 21mm ...../.....cm ( 14.3 kg | 185084000 )
DokaPly Birch SC 21mm
|
|
|
|
Xlife sheet 21mm 265/145cm ( 63.4 kg | 185071000 )
Xlife sheet 21mm 325/145cm ( 77.8 kg | 185070000 )
Xlife-Platte 21mm
|
|
|
|
Edge varnish SW-910 RAL 7004 2.5l ( 2.9 kg | 185019000 )
Kantenlack SW-910 RAL 7004 2,5l
|
|
|
Xlife edge varnish 2.5l ( 3.2 kg | 185072000 )
Xlife-Kantenlack 2,5l
|
|
|
Shaping wood board 3-S 27mm 600/150cm ( 108.9 kg | 177047000 )
Formholzplatte 3-S 27mm 600/150cm
|
|
|
|
H20 screw-on bracket for formwork sheets ( 0.19 kg | 586256000 )
Schalhaut-Schraubwinkel H20
|
Galvanised Height: 19.2 cm |
|
Double scraper Xlife 100/150mm 1.40m ( 2.8 kg | 588674000 )
Doppelschaber Xlife 100/150mm 1,40m
|
|
|
Ladder system XS
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Securing barrier XS ( 4.9 kg | 588669000 )
Sicherungsschranke XS
|
Galvanised Length: 80 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Ladder cage exit XS ( 17.0 kg | 588666000 )
Rückenschutz-Ausstieg XS
|
Galvanised Height: 132 cm |
|
Tie rod system 15.0
Tie rod 15.0mm galvanised 0.50m ( 0.72 kg | 581821000 )
Tie rod 15.0mm galvanised 0.75m ( 1.1 kg | 581822000 )
Tie rod 15.0mm galvanised 1.00m ( 1.4 kg | 581823000 )
Tie rod 15.0mm galvanised 1.25m ( 1.8 kg | 581826000 )
Tie rod 15.0mm galvanised 1.50m ( 2.2 kg | 581827000 )
Tie rod 15.0mm galvanised 1.75m ( 2.5 kg | 581828000 )
Tie rod 15.0mm galvanised 2.00m ( 2.9 kg | 581829000 )
Tie rod 15.0mm galvanised 2.50m ( 3.6 kg | 581852000 )
Tie rod 15.0mm galvanised .....m ( 1.4 kg | 581824000 )
Tie rod 15.0mm non-treated 0.50m ( 0.73 kg | 581870000 )
Tie rod 15.0mm non-treated 0.75m ( 1.1 kg | 581871000 )
Tie rod 15.0mm non-treated 1.00m ( 1.4 kg | 581874000 )
Tie rod 15.0mm non-treated 1.25m ( 1.8 kg | 581886000 )
Tie rod 15.0mm non-treated 1.50m ( 2.1 kg | 581876000 )
Tie rod 15.0mm non-treated 1.75m ( 2.5 kg | 581887000 )
Tie rod 15.0mm non-treated 2.00m ( 2.9 kg | 581875000 )
Tie rod 15.0mm non-treated 2.50m ( 3.6 kg | 581877000 )
Tie rod 15.0mm non-treated 3.00m ( 4.3 kg | 581878000 )
Tie rod 15.0mm non-treated 3.50m ( 5.0 kg | 581888000 )
Tie rod 15.0mm non-treated 4.00m ( 5.7 kg | 581879000 )
Tie rod 15.0mm non-treated 5.00m ( 7.2 kg | 581880000 )
Tie rod 15.0mm non-treated 6.00m ( 8.6 kg | 581881000 )
Tie rod 15.0mm non-treated 7.50m ( 10.7 kg | 581882000 )
Tie rod 15.0mm non-treated .....m ( 1.4 kg | 581873000 )
Ankerstab 15,0mm
|
|
|
Eye-lug anchor 15.0 without tie rod ( 1.2 kg | 580649000 )
Ösenanker 15,0 ohne Ankerstab
|
Galvanised Length: 11 cm |
|
Super plate 15.0 ( 1.1 kg | 581966000 )
Superplatte 15,0
|
Galvanised Height: 6 cm Diameter: 12 cm Width-across: 27 mm |
|
Wing nut 15.0 ( 0.31 kg | 581961000 )
Flügelmutter 15,0
|
Galvanised Length: 10 cm Height: 5 cm Width-across: 27 mm |
|
Hexagon nut 15.0 ( 0.23 kg | 581964000 )
Sechskantmutter 15,0
|
Galvanised Length: 5 cm Width-across: 30 mm |
|
Locking rod 15.0 330mm ( 0.48 kg | 582641000 )
Quetschteil 15,0 330mm
|
Galvanised Width-across: 24 mm |
|
Anchor plate 12/12 ( 1.3 kg | 581930000 )
Ankerplatte 12/12
|
Galvanised |
|
Anchor plate 15/20 ( 1.8 kg | 581929000 )
Ankerplatte 15/20
|
Galvanised |
|
Angle anchor plate 12/18 ( 1.5 kg | 581934000 )
Winkelplatte 12/18
|
Galvanised |
|
Top50 form-tie nut 15.0 ( 3.8 kg | 580073000 )
Top50-Ankermutter 15,0
|
Galvanised Height: 25 cm |
|
Plastic tube 22mm 2.50m ( 0.45 kg | 581951000 )
Kunststoffrohr 22mm 2,50m
|
PVC Grey Diameter: 2.6 cm |
|
Universal cone 22mm ( 0.005 kg | 581995000 )
Universal-Konus 22mm
|
Grey Diameter: 4 cm |
|
Plug 22mm ( 0.003 kg | 581953000 )
Verschlussstopfen 22mm
|
PE Grey |
|
Universal plug R20/25 ( 0.003 kg | 588180000 )
Kombi-Ankerstopfen R20/25
|
Blue Diameter: 3 cm |
|
Distance piece 20cm ( 0.04 kg | 581907000 )
Distance piece 25cm ( 0.05 kg | 581908000 )
Distance piece 30cm ( 0.06 kg | 581909000 )
Distanzhalter
|
PE Grey Blue |
|
Form-ply protector 22mm ( 0.25 kg | 580219000 )
Schalhautschutz 22mm
|
Galvanised Width-across: 46 mm |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Tie-rod wrench 15.0/20.0 ( 1.9 kg | 580594000 )
Ankerstabschlüssel 15,0/20,0
|
Galvanised Length: 37 cm Diameter: 8 cm |
|
Friction type ratchet SW27 ( 0.49 kg | 581855000 )
Freilaufknarre SW27
|
Manganese-phosphated Length: 30 cm |
|
Box spanner 27 0.65m ( 1.9 kg | 581854000 )
Steckschlüssel 27 0,65m
|
Galvanised |
|
Tie rod system 20.0
Tie rod 20.0mm galvanised 0.50m ( 1.3 kg | 581411000 )
Tie rod 20.0mm galvanised 0.75m ( 1.9 kg | 581417000 )
Tie rod 20.0mm galvanised 1.00m ( 2.5 kg | 581412000 )
Tie rod 20.0mm galvanised 1.25m ( 3.2 kg | 581418000 )
Tie rod 20.0mm galvanised 1.50m ( 3.8 kg | 581413000 )
Tie rod 20.0mm galvanised 2.00m ( 5.0 kg | 581414000 )
Tie rod 20.0mm galvanised 2.50m ( 6.3 kg | 581430000 )
Tie rod 20.0mm galvanised .....m ( 2.5 kg | 581410000 )
Tie rod 20.0mm non-treated 0.50m ( 1.3 kg | 581405000 )
Tie rod 20.0mm non-treated 0.75m ( 1.9 kg | 581416000 )
Tie rod 20.0mm non-treated 1.00m ( 2.5 kg | 581406000 )
Tie rod 20.0mm non-treated 1.50m ( 3.8 kg | 581407000 )
Tie rod 20.0mm non-treated 2.00m ( 5.0 kg | 581408000 )
Tie rod 20.0mm non-treated .....m ( 2.5 kg | 581403000 )
Ankerstab 20,0mm
|
|
|
Super plate 20.0 B ( 2.0 kg | 581424000 )
Superplatte 20,0 B
|
Galvanised Height: 7 cm Diameter: 14 cm Width-across: 34 mm |
|
Hexagon nut 20.0 ( 0.40 kg | 581420000 )
Sechskantmutter 20,0
|
Galvanised Length: 7 cm Width-across: 41 mm |
|
Anchor plate 20.0 ( 1.7 kg | 581425000 )
Ankerplatte 20,0
|
Galvanised |
|
Top100 tec form-tie nut 20.0 ( 4.8 kg | 586934000 )
Top100 tec-Ankermutter 20,0
|
Galvanised Height: 25 cm |
|
Plastic tube 26mm 2.00m ( 0.59 kg | 581463000 )
Kunststoffrohr 26mm 2,00m
|
PVC Grey Diameter: 3.1 cm |
|
Universal cone 26mm ( 0.008 kg | 581464000 )
Universal-Konus 26mm
|
Grey Diameter: 5 cm |
|
Plug 26mm ( 0.006 kg | 581465000 )
Verschlussstopfen 26mm
|
PE Grey |
|
Tie hole protector 20.0 ( 0.11 kg | 586931000 )
Ankerlochschutz 20,0
|
Galvanised Length: 7.5 cm Width: 4.3 cm |
|
Wing nut 20.0 ( 0.47 kg | 581466000 )
Flügelmutter 20,0
|
Galvanised Length: 11 cm Height: 6 cm Width-across: 36 mm |
|
Water stop connector 20.0 ( 1.3 kg | 581467000 )
Wasserstopp 20,0
|
Non-treated Length: 14 cm |
|
Rock anchor spreader unit 20.0 ( 1.3 kg | 581468000 )
Felsanker-Spreizeinheit 20,0
|
Galvanised Length: 11.9 cm Diameter: 5.7 cm Follow the directions in the "Fitting instructions"! |
|
Fibre concrete tube 27mm 1.25m ( 2.6 kg | 581472000 )
Faserbetonrohr 27mm 1,25m
|
|
|
Fibre concrete plug 27mm ( 0.03 kg | 581473000 )
Faserbetonstopfen 27mm
|
Grey |
|
Weldable coupler 20.0 ( 0.55 kg | 581474000 )
Anschweißmuffe 20,0
|
Non-treated Length: 8 cm Diameter: 4 cm Follow the directions in the "Fitting instructions"! |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
