Eurex 60 550 used as a shoring & plumbing accessory
As the Doka plumbing strut Eurex 60 550 - fitted with the appropriate accessories - this prop can also be used for shoring high wall formwork.
▪ Can be connected directly – without modification – to Doka framed formwork and Doka timber-beam formwork
▪ The Adjusting strut 540 Eurex 60 IB makes handling much easier, especially when the formwork is being transferred.
▪ Can be telescoped in 10 cm increments, with continuous fine adjustment.
|

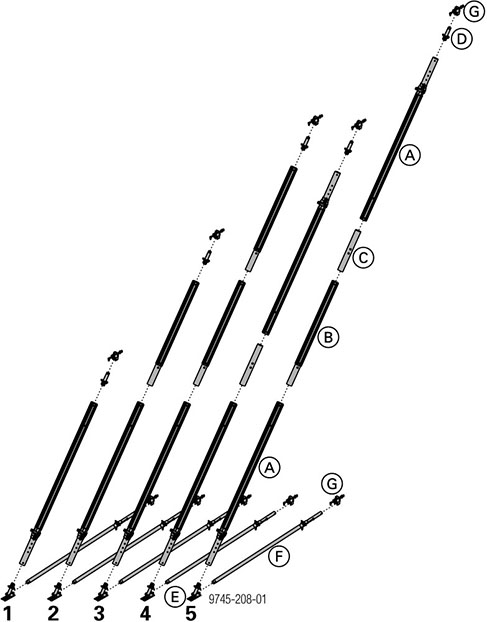

Type |
Extension length L [m] |
Plumbing strut Eurex 60 550 (A) |
Extension Eurex 60 2.00m (B) |
Coupler Eurex 60 (C) |
Connector Eurex 60 IB (D) |
Plumbing strut shoe Eurex 60 EB (E) |
Adjusting strut 540 Eurex 60 IB (F) |
Prop head EB (G) |
Weight [kg] |
|---|---|---|---|---|---|---|---|---|---|
|
1 |
3.79 - 5.89 |
1 |
— |
— |
1 |
1 |
1 |
2 |
91.1 |
|
2 |
5.79 - 7.89 |
1 |
1 |
— |
1 |
1 |
1 |
2 |
112.4 |
|
3 |
7.79 - 9.89 |
1 |
2 |
— |
1 |
1 |
1 |
2 |
133.7 |
|
4 |
7.22 - 11.42 |
2 |
— |
1 |
1 |
1 |
1 |
2 |
142.5 |
|
5 |
9.22 - 13.42 |
2 |
1 |
1 |
1 |
1 |
1 |
2 |
163.8 |
Note:
Do not overtighten the threaded fastener, as this would cause distortion of the aluminium section: the nuts supplied are self-locking.
.
