Height ranges and lengthening-pieces
The extension range of the floor prop Eurex 60 550 can be enlarged by using lengthening-pieces.
|
Fig. 1 |
Fig. 2 |
Fig. 3 |
|---|---|---|
|
|
|
|
A Floor prop Eurex 60 550 |
|
B Extension Eurex 60 2.00m (with integrated Coupler Eurex 60) |
|
C Coupler Eurex 60 |
.
3.50 - 5.50 m: Floor prop Eurex 60 550 without lengthening-piece (Fig. 1)
5.50 - 7.50 m: Add one Extension Eurex 60 2.00m (Fig. 2)
➤ Dismount the headplate from the outer tube of the Eurex 60 550 floor prop and mount it onto the lengthening-piece.
➤ Bolt the Extension Eurex 60 2.00 m (with its integral coupler) onto the outer tube.
.
7.00 - 11.00 m: Couple two Eurex 60 550 floor props together (Fig. 3)
➤ Dismount the headplates from the outer tubes of both Eurex 60 550 floor props.
➤ Bolt the outer tubes together using the Coupler Eurex 60.
Tools needed: Fork spanner or box nut, width-across 30 mm
.

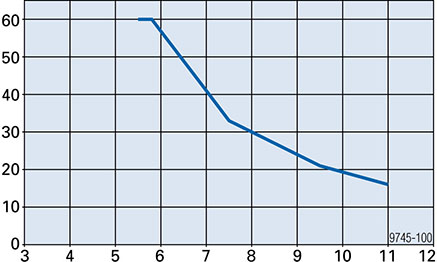

Permitted load-bearing capacity of the Eurex 60 550 for prop lengths over 5.50 m
Used as free (non-system-dependent)
construction prop
|
Permitted load-bearing capacity [kN] |
|
|
|
Prop length [m] |
.
