Article list
[kg]
Article N°

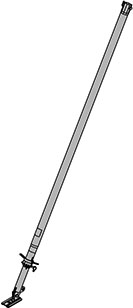

Doka floor prop Eurex 60 550 ( 47.0 kg | 582650000 )
Doka-Deckenstütze Eurex 60 550
|
Aluminium Length: 345 - 555 cm |
|
Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Verlängerung Eurex 60 2,00m
|
Powder-coated blue Aluminium Length: 250 cm |
|
U-head Eurex 60 ( 2.9 kg | 582656000 )
Gabelkopf Eurex 60
|
Galvanised Length: 22 cm Width: 20 cm Height: 12 cm |
|
4-way head Eurex 60 ( 4.5 kg | 582655000 )
Vierwegkopf Eurex 60
|
Galvanised Length: 25 cm Width: 21 cm Height: 21 cm |
|
Swivel coupler 48mm Eurex 60 ( 1.0 kg | 582654000 )
Drehkupplung 48mm Eurex 60
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Removable folding tripod 1.20m ( 20.7 kg | 586145000 )
Stützbein 1,20m
|
Galvanised Height: 120 cm Delivery condition: folded closed |
|
Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Justierstütze 340 IB
|
Galvanised Length: 190.8 - 341.8 cm |
|
Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Justierstütze 540 IB
|
Galvanised Length: 310.5 - 549.2 cm |
|
Strut shoe EB ( 0.93 kg | 588946000 )
Strebenschuh EB
|
Galvanised Width: 8 cm Height: 13 cm |
|
Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Justierstütze Eurex 60 550
|
Powder-coated blue Aluminium Length: 343 - 553 cm |
|
Coupler Eurex 60 ( 8.6 kg | 582652000 )
Kupplungsstück Eurex 60
|
Aluminium Length: 100 cm Diameter: 12.8 cm |
|
Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Verbindungsstück Eurex 60 IB
|
Galvanised Length: 15 cm Width: 15 cm Height: 30 cm |
|
Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Justierstützenfuß Eurex 60 EB
|
Galvanised Length: 31 cm Width: 12 cm Height: 33 cm |
|
Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Justierstrebe 540 Eurex 60 IB
|
Galvanised Length: 303.5 - 542.2 cm |
|
Prop head EB ( 3.1 kg | 588244500 )
Stützenkopf EB
|
Galvanised Length: 40.8 cm Width: 11.8 cm Height: 17.6 cm |
|
Prop head Eurex 60 Top50 ( 7.1 kg | 582665000 )
Stützenkopf Eurex 60 Top50
|
Galvanised Height: 50 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Swivel coupler 48mm ( 1.5 kg | 582560000 )
Drehkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Normal coupler 48mm ( 1.2 kg | 682004000 )
Normalkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
