Product description

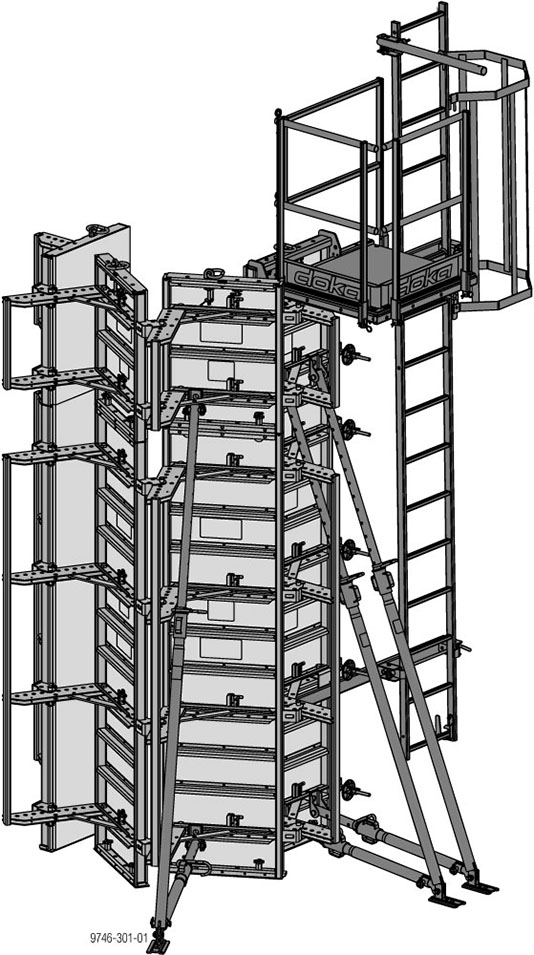

The Column formwork KS Xlife is a top-quality, site-ready column formwork system.
The formwork is easy to open and close, resulting in very short striking and set-up times. Another advantage is that there is no need for time-consuming assembly and dismantling work.
Just one crane cycle is all it takes to reposition the entire formwork unit, in one piece.
|
Permitted fresh-concrete pressure: 90 kN/m2 |
|
Product features: ▪ adjusting range between 20 cm and 60 cm, in 5 cm increments ▪ suitable for square and rectangular column cross-sections ▪ no need to change the form-facing for different cross-sections ▪ no tie-holes and frame imprints in the concrete ▪ 30 cm height grid ▪ for column heights of up to 6.60 m ▪ easy to operate; simply fold/unfold the panels to set up and strip the formwork ▪ safe working environment ensured by using Platform planking KS or Doka column formwork platform 150/90cm ▪ safe vertical access provided by Ladder system XS ▪ easy and convenient to clean ▪ 21 mm form-facing screwed on from rear ▪ long service life thanks to its sturdy design and galvanised steel construction |
.
