General

Additional precautions

Bracing

▪ on high (over 4.50 m) multi-element gangs, to stiffen the formwork when lifting it into the upright

▪ on multi-element gangs made by stacking many small column elements

.

with a "Screw-set M16x40 DIN 933 8.8"

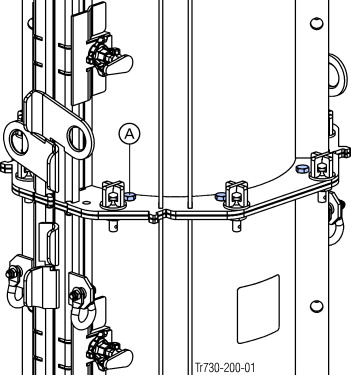

➤ Fit the "Screw-set M16x40" on the shell join.

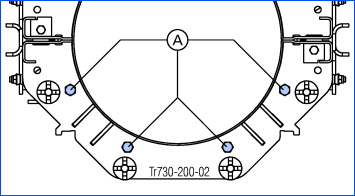

The screws must be fitted in the diam. 20 mm holes on the outside reinforcement ribs

For each formwork-half, one "Screw-set M16x40" must be provided for every vertical stacking join.



.

with Multipurpose walings WS10 Top50

Length of Multi-purpose walings:

The Multi-purpose walings should be long enough to overlap the column-element reinforcement ribs immediately above and below the join.

.

Attaching the Multipurpose waling:

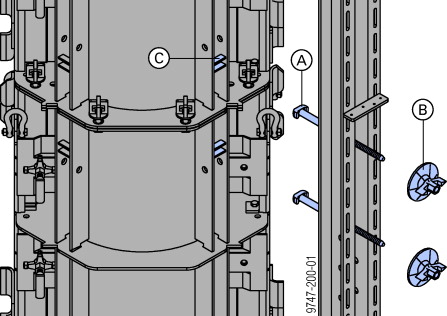

Do this with Framax universal fixing bolts 10-25 cm (A) and Super-plates 15.0 (B) fixed to the clamping points on the column elements (C) .

In each case, there should be one fixing-point above the join, and one below it.

Mount one Multi-purpose waling WS10 or WU12 per formwork-half, on the connector-free side of the formwork.



.

Attaching the panel struts

.
