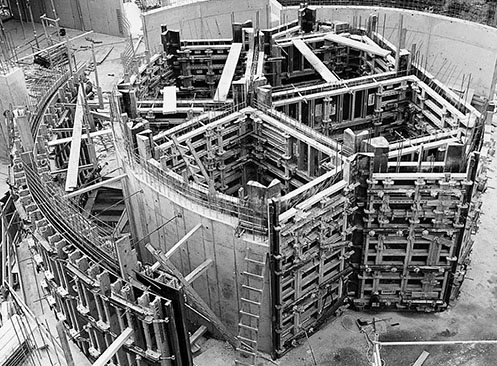

Acute and obtuse angles are solved using the hinged inside and outside corners.
|
Hinged inside corner I |
Hinged inside corner I (galvanised) |
|---|---|
a ... 0.7 cm b ... 29.2 cm |
a ... 0.7 cm b ... 29.3 cm |
|
Hinged outside corner A |
Hinged outside corner A (galvanised) |
|---|---|
a ... 5.5 cm b ... 0.8 cm |
a ... 6.3 cm |
Note:
The Framax hinged outside corner A (galvanised) cannot be combined with the Framax hinged outside corner A (powder-coated).
Number of universal walings in outside and inside corners:
|
Panel height |
Number of universal walings |
|---|---|
|
0.90 m |
4 |
|
2.70 m |
6 |
|
3.00 m |
6 |

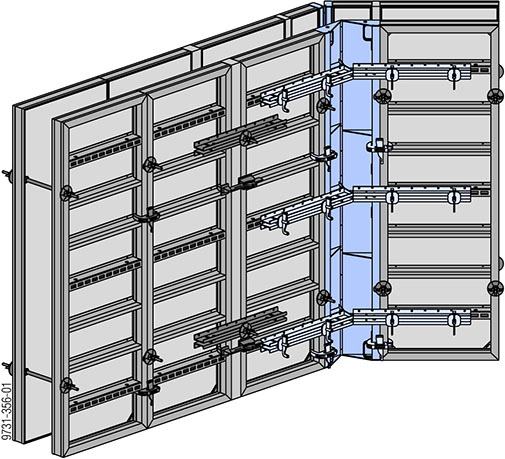

Position of the universal walings:
In every support level of the Hinged inside corner I.
Note:
For angles of less than 120°, no universal walings are needed in inside corners.
|
|
NOTICE With closures, provide additional universal walings in accordance with the section headed 'Length adjustment using closures'. |
Number of clamps needed in the hinged outside corner:
|
Panel height |
Number of clamps |
|---|---|
|
0.90 m |
4 |
|
2.70 m |
8 |
|
3.00 m |
10 |
|
|
NOTICE For details regarding extra inter-panel connections on outside corners (for increased tensile loads) see 'Inter-panel connections for increased tensile loads'. |
.
