Produktübersicht

[kg]

Art.-Nr.

Dokamatic-Tisch 2,50x4,00m 21mm   ( 515,0 kg | 586200000 )

Dokamatic-Tisch 2,50x5,00m 21mm   ( 656,0 kg | 586201000 )

Dokamatic-Tisch 2,00x4,00m 21mm   ( 480,0 kg | 586202000 )

Dokamatic-Tisch 2,00x5,00m 21mm   ( 600,0 kg | 586203000 )

Dokamatic table

Dokamatic-Tisch 2,50x4,00m 27mm   ( 560,0 kg | 586204000 )

Dokamatic-Tisch 2,50x5,00m 27mm   ( 685,0 kg | 586205000 )

Dokamatic-Tisch 2,00x4,00m 27mm   ( 522,0 kg | 586206000 )

Dokamatic-Tisch 2,00x5,00m 27mm   ( 625,0 kg | 586207000 )

Dokamatic table

Dokamatic-Tischrost 2,50x4,00m   ( 418,0 kg | 586208000 )

Dokamatic-Tischrost 2,50x5,00m   ( 536,0 kg | 586209000 )

Dokamatic-Tischrost 2,00x4,00m   ( 402,0 kg | 586210000 )

Dokamatic-Tischrost 2,00x5,00m   ( 508,0 kg | 586211000 )

Dokamatic table grille

Dokamatic-Tischrost 2,50x4,00m ohne Kopf   ( 349,6 kg | 586280000 )

Dokamatic-Tischrost 2,50x5,00m ohne Kopf   ( 485,6 kg | 586281000 )

Dokamatic-Tischrost 2,00x4,00m ohne Kopf   ( 333,6 kg | 586282000 )

Dokamatic-Tischrost 2,00x5,00m ohne Kopf   ( 439,6 kg | 586283000 )

Dokamatic table grille w/o head

Doka-Deckenstütze Eurex 20 top 150   ( 8,0 kg | 586096000 )

Länge: 92 - 150 cm

Doka-Deckenstütze Eurex 20 top 250   ( 12,7 kg | 586086400 )

Länge: 148 - 250 cm

Doka-Deckenstütze Eurex 20 top 300   ( 14,3 kg | 586087400 )

Länge: 173 - 300 cm

Doka-Deckenstütze Eurex 20 top 350   ( 17,4 kg | 586088400 )

Länge: 198 - 350 cm

Doka-Deckenstütze Eurex 20 top 400   ( 21,6 kg | 586089400 )

Länge: 223 - 400 cm

Doka-Deckenstütze Eurex 20 top 550   ( 32,3 kg | 586090400 )

Länge: 298 - 550 cm

Doka floor prop Eurex 20 top

Doka-Deckenstütze Eurex 20 eco 250   ( 11,5 kg | 586270000 )

Länge: 148 - 250 cm

Doka-Deckenstütze Eurex 20 eco 300   ( 14,0 kg | 586271000 )

Länge: 173 - 300 cm

Doka-Deckenstütze Eurex 20 eco 350   ( 16,9 kg | 586272000 )

Länge: 198 - 350 cm

Doka-Deckenstütze Eurex 20 eco 400   ( 20,5 kg | 586273000 )

Länge: 223 - 400 cm

Doka-Deckenstütze Eurex 20 eco 450   ( 24,1 kg | 586275000 )

Länge: 248 - 450 cm

Doka-Deckenstütze Eurex 20 eco 550   ( 32,0 kg | 586276000 )

Länge: 298 - 550 cm

Doka floor prop Eurex 20 eco

Doka-Deckenstütze Eurex 20 250   ( 12,9 kg | 586086000 )

Länge: 152 - 250 cm

Doka-Deckenstütze Eurex 20 300   ( 15,3 kg | 586087000 )

Länge: 172 - 300 cm

Doka-Deckenstütze Eurex 20 350   ( 17,8 kg | 586088000 )

Länge: 197 - 350 cm

Doka-Deckenstütze Eurex 20 400   ( 22,2 kg | 586089000 )

Länge: 227 - 400 cm

Doka-Deckenstütze Eurex 20 550   ( 34,6 kg | 586090000 )

Länge: 297 - 550 cm

Doka floor prop Eurex 20

Doka-Deckenstütze Eurex 30 top 250   ( 12,8 kg | 586092400 )

Länge: 148 - 250 cm

Doka-Deckenstütze Eurex 30 top 300   ( 16,4 kg | 586093400 )

Länge: 173 - 300 cm

Doka-Deckenstütze Eurex 30 top 350   ( 20,7 kg | 586094400 )

Länge: 198 - 350 cm

Doka-Deckenstütze Eurex 30 top 400   ( 24,6 kg | 586095400 )

Länge: 223 - 400 cm

Doka-Deckenstütze Eurex 30 top 450   ( 29,1 kg | 586119400 )

Länge: 248 - 450 cm

Doka-Deckenstütze Eurex 30 top 550   ( 38,6 kg | 586129000 )

Länge: 303 - 550 cm

Doka floor prop Eurex 30 top

Doka-Deckenstütze Eurex 30 250   ( 14,8 kg | 586092000 )

Länge: 152 - 250 cm

Doka-Deckenstütze Eurex 30 300   ( 16,7 kg | 586093000 )

Länge: 172 - 300 cm

Doka-Deckenstütze Eurex 30 350   ( 20,5 kg | 586094000 )

Länge: 197 - 350 cm

Doka-Deckenstütze Eurex 30 400   ( 24,9 kg | 586095000 )

Länge: 227 - 400 cm

Doka-Deckenstütze Eurex 30 450   ( 29,2 kg | 586119000 )

Länge: 248 - 450 cm

Doka floor prop Eurex 30

Dokamatic-Tischriegel 12 4,00m   ( 122,5 kg | 586212000 )

Dokamatic-Tischriegel 12 5,00m   ( 154,0 kg | 586213000 )

Dokamatic table waling

Dokamatic-Schwenkkopf 40   ( 17,1 kg | 586214000 )

Dokamatic swivel head 40

Haltekopf H20 DF   ( 0,77 kg | 586179000 )

Supporting head H20 DF

Federbolzen 16mm   ( 0,25 kg | 582528000 )

Spring locked connecting pin 16mm

Dokamatic-Tischbühne 1,00/2,00m   ( 92,0 kg | 586218000 )

Dokamatic-Tischbühne 1,00/2,50m   ( 103,0 kg | 586217000 )

Dokamatic table platform

Dokamatic-Bühnenkonsole 1,00m   ( 19,5 kg | 586227000 )

Dokamatic platform bracket 1.00m

Dokamatic-Bühnenverbreiterung 0,50/2,00m   ( 31,0 kg | 586220000 )

Dokamatic-Bühnenverbreiterung 0,50/2,50m   ( 34,3 kg | 586219000 )

Dokamatic platform extension

Dokamatic-Bühnenprofil 1,00m   ( 11,0 kg | 586221000 )

Dokamatic platform profile 1.00m

Dokamatic-Stützenanschluss   ( 1,3 kg | 586215000 )

Dokamatic strut connection

Staxo-Spindelanschluss Dokamatic-Tisch   ( 3,9 kg | 582347000 )

Dokamatic table Staxo spindle connector

Dokamatic-Gerüstanschluss   ( 3,4 kg | 586216000 )

Dokamatic scaffold connection

Dokamatic-Tischrahmen 1,50m   ( 59,8 kg | 586224000 )

Dokamatic table frame 1.50m

Diagonalkreuz 9.150   ( 5,2 kg | 582773000 )

Diagonalkreuz 9.200   ( 6,6 kg | 582774000 )

Diagonalkreuz 9.250   ( 7,7 kg | 582775000 )

Diagonalkreuz 9.300   ( 9,0 kg | 582323000 )

Diagonalkreuz 12.150   ( 5,7 kg | 582612000 )

Diagonalkreuz 12.200   ( 6,9 kg | 582614000 )

Diagonalkreuz 18.100   ( 6,1 kg | 582620000 )

Diagonal cross

Einschubträger 1,95m   ( 7,1 kg | 183074000 )

Einschubträger 2,45m   ( 8,9 kg | 183075000 )

Insertion beam

T-Leiste 21/42 2,00m   ( 0,34 kg | 580196000 )

T ledge 21/42 2.00m

Ausgleichslasche FF20/50   ( 9,1 kg | 587532000 )

Adjustable waling extension FF20/50

Elementverbinder FF20/50 Z   ( 6,0 kg | 587533000 )

Formwork element connector FF20/50 Z

Trägerklammer Top50   ( 1,2 kg | 580081000 )

Beam clamp Top50

Verbindungsbolzen 10cm   ( 0,34 kg | 580201000 )

Connecting pin 10cm

Federvorstecker 5mm   ( 0,03 kg | 580204000 )

Spring cotter 5mm

Dokamatic-Stirnholz 4x8cm 2,60m   ( 4,2 kg | 183046000 )

Dokamatic front wood strip 4x8cm 2.60m

Dokamatic-Unterzugslasche 60cm   ( 21,1 kg | 586226000 )

Dokamatic drop beam plate 60cm

Ecklasche FF20 G   ( 7,2 kg | 587571000 )

Corner plate FF20 G

Winkellasche 90/50   ( 13,8 kg | 580603000 )

Corner connecting plate 90/50

Spindelstrebe T7 75/110cm   ( 13,2 kg | 584308000 )

Spindle strut T7 75/110cm

Dokamatic-Abschaleinheit 50cm   ( 16,8 kg | 586223000 )

Dokamatic end-shutter unit 50cm

Framax-Klemmschraube 4-8cm   ( 0,39 kg | 588107000 )

Framax clamping bolt 4-8cm

Framax-Eckklemmschiene   ( 12,8 kg | 588151000 )

Framax universal corner waling

Dokamatic-Randklemme 0,70m   ( 3,9 kg | 586222000 )

Dokamatic edge clamp 0.70m

Ankerstab 15,0mm verzinkt 0,50m   ( 0,72 kg | 581821000 )

Ankerstab 15,0mm verzinkt 0,75m   ( 1,1 kg | 581822000 )

Ankerstab 15,0mm verzinkt 1,00m   ( 1,4 kg | 581823000 )

Ankerstab 15,0mm verzinkt 1,25m   ( 1,8 kg | 581826000 )

Ankerstab 15,0mm verzinkt 1,50m   ( 2,2 kg | 581827000 )

Ankerstab 15,0mm verzinkt 1,75m   ( 2,5 kg | 581828000 )

Ankerstab 15,0mm verzinkt 2,00m   ( 2,9 kg | 581829000 )

Ankerstab 15,0mm verzinkt 2,50m   ( 3,6 kg | 581852000 )

Ankerstab 15,0mm verzinkt .....m   ( 1,4 kg | 581824000 )

Ankerstab 15,0mm unbehandelt 0,50m   ( 0,73 kg | 581870000 )

Ankerstab 15,0mm unbehandelt 0,75m   ( 1,1 kg | 581871000 )

Ankerstab 15,0mm unbehandelt 1,00m   ( 1,4 kg | 581874000 )

Ankerstab 15,0mm unbehandelt 1,25m   ( 1,8 kg | 581886000 )

Ankerstab 15,0mm unbehandelt 1,50m   ( 2,1 kg | 581876000 )

Ankerstab 15,0mm unbehandelt 1,75m   ( 2,5 kg | 581887000 )

Ankerstab 15,0mm unbehandelt 2,00m   ( 2,9 kg | 581875000 )

Ankerstab 15,0mm unbehandelt 2,50m   ( 3,6 kg | 581877000 )

Ankerstab 15,0mm unbehandelt 3,00m   ( 4,3 kg | 581878000 )

Ankerstab 15,0mm unbehandelt 3,50m   ( 5,0 kg | 581888000 )

Ankerstab 15,0mm unbehandelt 4,00m   ( 5,7 kg | 581879000 )

Ankerstab 15,0mm unbehandelt 5,00m   ( 7,2 kg | 581880000 )

Ankerstab 15,0mm unbehandelt 6,00m   ( 8,6 kg | 581881000 )

Ankerstab 15,0mm unbehandelt 7,50m   ( 10,7 kg | 581882000 )

Ankerstab 15,0mm unbehandelt .....m   ( 1,4 kg | 581873000 )

Tie rod 15.0mm

Superplatte 15,0   ( 1,1 kg | 581966000 )

Super plate 15.0

Universal-Abschalwinkel 30cm   ( 1,0 kg | 586232000 )

Universal end-shutter support 30cm

Zurrgurt 5,00m   ( 2,8 kg | 586018000 )

Lashing strap 5.00m

Doka-Expressanker 16x125mm   ( 0,31 kg | 588631000 )

Doka express anchor 16x125mm

Doka-Coil 16mm   ( 0,009 kg | 588633000 )

Doka coil 16mm

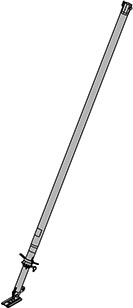

Justierstütze 340 IB   ( 16,7 kg | 588696000 )

Plumbing strut 340 IB

Justierstütze 540 IB   ( 30,7 kg | 588697000 )

Plumbing strut 540 IB

Stützenkopf EB   ( 3,1 kg | 588244500 )

Prop head EB

Dokamatic-Adapter XP   ( 10,2 kg | 586474000 )

Dokamatic adapter XP

Einschubadapter XP   ( 4,1 kg | 586478000 )

Insertion adapter XP

Geländerzwinge XP 40cm   ( 7,7 kg | 586456000 )

Railing clamp XP 40cm

Geländerschuh XP   ( 2,2 kg | 586457000 )

Handrail-post shoe XP

Geländersteher XP 1,20m   ( 4,1 kg | 586460000 )

Handrail post XP 1.20m

Geländersteher XP 1,80m   ( 6,0 kg | 586482000 )

Handrail post XP 1.80m

Fußwehrhalter XP 0,60m   ( 0,77 kg | 586463000 )

Toeboard holder XP 0.60m

Fußwehrhalter XP 1,20m   ( 0,64 kg | 586461000 )

Toeboard holder XP 1.20m

Schutzgitter XP 2,70x0,60m   ( 10,1 kg | 586466000 )

Schutzgitter XP 2,50x0,60m   ( 9,5 kg | 586472000 )

Schutzgitter XP 2,00x0,60m   ( 8,0 kg | 586473000 )

Schutzgitter XP 1,20x0,60m   ( 5,0 kg | 586491000 )

Protective grating XP

Schutzgitter XP 2,70x1,20m   ( 22,2 kg | 586450000 )

Schutzgitter XP 2,50x1,20m   ( 20,5 kg | 586451000 )

Schutzgitter XP 2,00x1,20m   ( 17,4 kg | 586452000 )

Schutzgitter XP 1,20x1,20m   ( 12,0 kg | 586453000 )

Protective grating XP

Klettverschluss 30x380mm   ( 0,02 kg | 586470000 )

Velcro fastener 30x380mm

Einschubgeländer T 1,80m   ( 17,7 kg | 584373000 )

Handrail post T 1.80m

Fußwehrhalter T 1,80m   ( 0,53 kg | 584392000 )

Toeboard holder T 1.80m

Schutzgeländerzwinge S   ( 11,5 kg | 580470000 )

Handrail clamp S

Schutzgeländerzwinge T   ( 12,3 kg | 584381000 )

Handrail clamp T

Seitenschutzgeländer T   ( 29,1 kg | 580488000 )

Side handrail clamping unit T

Schutzgeländer 1,10m   ( 5,5 kg | 584384000 )

Handrail post 1.10m

Doka-Deckenabschalklemme   ( 12,5 kg | 586239000 )

Doka floor end-shutter clamp

Abschalschuh   ( 1,6 kg | 586257000 )

End-shutter shoe

Abschalanker 15,0 15-40cm   ( 0,91 kg | 586258000 )

End-shutter tie rod 15.0 15-40cm

Deckenabschalprofil XP   ( 4,2 kg | 586481000 )

Floor end-shutter profile XP

Mobilgerüst DF   ( 44,0 kg | 586157000 )

Wheel-around scaffold DF

Zubehörset Mobilgerüst DF   ( 13,3 kg | 586164000 )

Wheel-around scaffold DF accessory set

Podesttreppe 0,97m   ( 23,5 kg | 586555000 )

Platform stairway 0.97m

Schalhaut-Schraubwinkel H20   ( 0,19 kg | 586256000 )

H20 screw-on bracket for formwork sheets

Steckhülse 24mm   ( 0,03 kg | 584385000 )

Attachable sleeve 24mm

Schraubhülse 20,0   ( 0,03 kg | 584386000 )

Screw sleeve 20.0

Bandzwinge B 6,00m   ( 3,3 kg | 580394500 )

Strip tensioner B 6.00m

Kunststoffhammer 4kg   ( 4,5 kg | 586097000 )

Plastic mallet 4kg

Universal-Lösewerkzeug   ( 3,7 kg | 582768000 )

Universal dismantling tool

Umschaltknarre 1/2"   ( 0,73 kg | 580580000 )

Reversible ratchet 1/2"

Stecknuss 30 1/2"   ( 0,20 kg | 580575000 )

Box nut 30 1/2"

Aufstiegssystem XS

Anschluss XS DM/SL-1   ( 11,7 kg | 588672000 )

Connector XS DM/SL-1

System-Leiter XS 4,40m   ( 33,2 kg | 588640000 )

System ladder XS 4.40m

Leiternverlängerung XS 2,30m   ( 19,1 kg | 588641000 )

Ladder extension XS 2.30m

Sicherungsschranke XS   ( 4,9 kg | 588669000 )

Securing barrier XS

Rückenschutz XS 1,00m   ( 16,5 kg | 588643000 )

Rückenschutz XS 0,25m   ( 10,5 kg | 588670000 )

Ladder cage XS

Rückenschutz-Ausstieg XS   ( 17,0 kg | 588666000 )

Ladder cage exit XS

Leiternfuß XS   ( 5,0 kg | 588673000 )

Ladder adapter XS

Umsetzgeräte für Tische

DoKart plus   ( 1448,0 kg | 586265500 )

DoKart plus

Im Lieferumfang enthalten:

(A)Spannbügel 8   ( 2,7 kg | 582751000 )

4 Stk.

verzinkt

Breite: 19 cm

Höhe: 46 cm

Schlüsselweite: 30 mm

Auslegersatz DoKart plus   ( 50,0 kg | 586266500 )

Extension set for DoKart plus

DoKart   ( 1580,0 kg | 586265000 )

DoKart

Im Lieferumfang enthalten:

(A)Spannbügel 8   ( 2,7 kg | 582751000 )

4 Stk.

verzinkt

Breite: 19 cm

Höhe: 46 cm

Schlüsselweite: 30 mm

Auslegersatz DoKart   ( 34,0 kg | 586266000 )

Extension set for DoKart

Umsetzwagen DF   ( 566,0 kg | 586080000 )

Shifting trolley DF

Im Lieferumfang enthalten:

(A)Einrichthebel für Umsetzwagen DF   ( 6,0 kg | 586063000 )

(B)Spannbügel 8   ( 2,7 kg | 582751000 )

4 Stk.

verzinkt

Breite: 19 cm

Höhe: 46 cm

Schlüsselweite: 30 mm

Ausleger für Umsetzwagen DF   ( 40,0 kg | 586015000 )

Extension for shifting trolley DF

Andockantrieb DF   ( 512,0 kg | 586062000 )

Attachable drive unit DF

Aufsatzrahmen DF   ( 82,0 kg | 586079000 )

Stacking frame DF

Alu-Aufsatzrahmen DM 2,25m   ( 59,2 kg | 586238000 )

Alu stacking frame DM 2.25m

Umsetzgabel 1,3t verstellbar   ( 731,0 kg | 586234000 )

Transport fork 1.3t adjustable

Tischfixierung Umsetzgabel 1,3t verstellbar   ( 5,0 kg | 586260000 )

Transport-fork table-fixing part 1.3t adj.

Umsetzgabel DM 1,5t verstellbar   ( 1134,0 kg | 586233000 )

Transport fork DM 1.5t adjustable

Vertikalverlängerung DM 3,30m   ( 240,0 kg | 586235000 )

Vertical extension DM 3.30m

Aufsatzklemme H20 für Gabel   ( 4,5 kg | 586236000 )

Extension clamp H20 for fork

Aufsatzprofil H20 für Gabel   ( 34,1 kg | 586237000 )

Extension profile H20 for fork

Ausleger DF 1t   ( 263,0 kg | 586068000 )

Lifting extension bracket DF 1t

Ausleger DF 1,5t   ( 475,0 kg | 586064000 )

Lifting extension bracket DF 1.5t

Gabel DF 1t 0,90m   ( 220,0 kg | 586069000 )

Gabel DF 1t 1,30m   ( 245,0 kg | 586070000 )

Gabel DF 1t 2,00m   ( 274,0 kg | 586071000 )

Transport fork DF 1t

Gabel DF 1,5t 0,90m   ( 480,0 kg | 586065000 )

Gabel DF 1,5t 1,30m   ( 520,0 kg | 586066000 )

Gabel DF 1,5t 2,00m   ( 540,0 kg | 586067000 )

Transport fork DF 1.5t

Dokamatic-Umsetzgurt 13,00m   ( 10,5 kg | 586231000 )

Dokamatic lifting strap 13.00m

Tischhubsystem TLS

Basiseinheit TLS   ( 2336,0 kg | 586301000 )

Basic unit TLS

Hubbühne TLS mitte 3,00x1,60m   ( 310,0 kg | 586307000 )

Lifting platform TLS centre 3.00x1.60m

Hubbühne TLS hinten 3,00x1,60m   ( 376,0 kg | 586308000 )

Lifting platform TLS back 3.00x1.60m

Schutzgitter TLS 1,80m   ( 22,0 kg | 586334000 )

Protective grating TLS 1.80m

Schutzblech TLS rechts   ( 12,0 kg | 586309000 )

Schutzblech TLS links   ( 12,0 kg | 586310000 )

Protecting metal sheet TLS

Hubmast TLS 1,50m   ( 82,0 kg | 586328000 )

Lifting mast TLS 1.50m

Abstützprofil TLS 5,15m   ( 210,0 kg | 586317000 )

Supporting profile TLS 5.15m

Druckstrebe TLS 3,70m   ( 70,0 kg | 586318000 )

Pressure strut TLS 3.70m

Deckenauflager TLS 0,40m   ( 39,0 kg | 586315000 )

Floor support TLS 0.40m

Justiereinheit TLS   ( 10,0 kg | 586336000 )

Adjusting device TLS

Kabelführung TLS   ( 2,0 kg | 586333000 )

Cable routing TLS

Hubmastverankerung TLS Traverse 0,40m   ( 92,0 kg | 586329000 )

Lifting mast anchoring TLS cross bar 0.40m

Hubmastverankerung TLS Wand   ( 15,5 kg | 586372000 )

Lifting mast anchoring TLS wall

Hubmastverankerung TLS Strebe   ( 22,0 kg | 586331000 )

Lifting mast anchoring TLS strut

Hubmastverankerung TLS Mastanschluss   ( 15,0 kg | 586332000 )

Lifting mast anchoring TLS mast connection

Bodenprofil TLS 2,14m   ( 28,0 kg | 586312000 )

Base profile TLS 2.14m

Strebe für Bodenprofil TLS   ( 11,8 kg | 586313000 )

Strut for base profile TLS

Träger für Etagentüre TLS 0,40m   ( 35,0 kg | 586319000 )

Beam for landing level safety gate TLS 0.40m

Etagentüre TLS mit Griff   ( 33,0 kg | 586321000 )

Landing level safety gate TLS with handle

Etagentüre TLS mit Endschalter   ( 32,0 kg | 586322000 )

Landing level safety gate TLS w. limit switch

Schaltkasten TLS Bodensteuerung   ( 7,0 kg | 586323000 )

Switch box TLS ground control

Schaltkasten TLS Etagentüre   ( 7,0 kg | 586324000 )

Switch box TLS landing level safety gate

Steuerkabel TLS 20,0m blau   ( 4,0 kg | 586303000 )

Steuerkabel TLS 20,0m rot   ( 4,0 kg | 586304000 )

Control cable TLS

Endschalterschiene TLS   ( 5,0 kg | 586325000 )

Bar for limit switch TLS

Hebetraverse TLS 10,50m   ( 19,0 kg | 586327000 )

Lifting cross-bar TLS 10.50m

Hebetraverse TLS 15,00m   ( 64,0 kg | 586373000 )

Lifting cross-bar TLS 15.00m

Hebeträger TLS 67kN   ( 68,0 kg | 586326500 )

Lifting beam TLS 67kN

Kabeltopfset TLS 100,00m   ( 133,0 kg | 586371000 )

Cable-reel set TLS 100.00m

Doka-Vierstrangkette 3,20m   ( 15,0 kg | 588620000 )

Doka 4-part chain 3.20m

Konusschraube B 7cm   ( 0,86 kg | 581444000 )

Cone screw B 7cm

Universal-Kletterkonus 15,0   ( 1,3 kg | 581977000 )

Universal climbing cone 15.0

Dichtungshülse K 15,0   ( 0,03 kg | 581976000 )

Sealing sleeve K 15.0

Sperranker 15,0 B11   ( 0,55 kg | 581868000 )

Sperranker 15,0 A16   ( 0,38 kg | 581997000 )

Sperranker 15,0 A40   ( 0,71 kg | 581999000 )

Stop anchor 15.0

Werkzeugbox TLS   ( 17,0 kg | 586337000 )

Tool box TLS

bestehend aus:

(A)Ring-Maulschlüssel 8   ( 0,03 kg | 586343000 )

(B)Ring-Maulschlüssel 10   ( 0,04 kg | 586342000 )

(C)Ring-Maulschlüssel 13   ( 0,06 kg | 586341000 )

(D)Ring-Maulschlüssel 17   ( 0,16 kg | 586340000 )

Länge: 20 cm

(E)Ring-Maulschlüssel 19   ( 0,14 kg | 582837000 )

(F)Ring-Maulschlüssel 22   ( 0,20 kg | 582838000 )

(G)Ring-Maulschlüssel 24   ( 0,25 kg | 582839000 )

(H)Ring-Maulschlüssel 30   ( 0,43 kg | 582840000 )

(I)Umschaltknarre 3/4"   ( 1,5 kg | 580894000 )

verzinkt

Länge: 50 cm

(J)Stecknuss 50 3/4"   ( 0,81 kg | 581449000 )

(K)Universal-Konusschlüssel 15,0/20,0   ( 0,90 kg | 581448000 )

verzinkt

Schlüsselweite: 50 mm

(L)Safety Ruler SK   ( 0,02 kg | 581439000 )

Länge: 18 cm

(M)Stecknuss 24 1/2" L   ( 0,30 kg | 586364000 )

(N)Verlängerung 20cm 3/4"   ( 0,68 kg | 580683000 )

(O)Inbus-Kugelkopfschlüsselsatz   ( 0,60 kg | 586346000 )

(P)Schlitzschraubendreher 0,6x3,5   ( 0,20 kg | 586344000 )

(Q)Schlitzschraubendreher 1x5,5   ( 0,20 kg | 586366000 )

(R)Steckschlüssel-Satz 1/2" 29-teilig   ( 5,6 kg | 586345000 )

(S)Stecknuss 19 3/4"   ( 0,20 kg | 586375000 )

(T)Stecknuss 24 3/4"   ( 0,21 kg | 500679030 )

(U)Stecknuss 27 3/4"   ( 0,27 kg | 586376000 )

(V)Stecknuss 30 3/4"   ( 0,33 kg | 586377000 )

Drehmomentschlüssel 3/4" 75-400Nm   ( 2,3 kg | 586374000 )

Torque wrench 3/4" 75-400Nm

Wartungs-Werkzeugbox TLS   ( 6,1 kg | 586369000 )

Maintenance toolbox TLS

bestehend aus:

(A)Fettkartusche TLS   ( 0,46 kg | 586368000 )

(B)Befüllpresse TLS   ( 0,93 kg | 586367000 )

(C)Fühlerlehrensatz 0,05-1,00mm   ( 0,09 kg | 586350000 )

(D)Zange für Außensicherungsringe 40-100mm   ( 0,32 kg | 586348000 )

(E)Wasserpumpenzange 250mm   ( 0,32 kg | 586347000 )

(F)Kreuzschlitz-Schraubendreher PZ 2   ( 0,15 kg | 586351000 )

(G)Ring-Maulschlüssel 14   ( 0,09 kg | 586349000 )

(H)Digital-Multimeter TLS   ( 0,22 kg | 586353000 )

(I)Blindstecker TLS 4-polig   ( 0,04 kg | 586352000 )

Scheibenabzieher TLS D200   ( 4,3 kg | 586370000 )

Brake-disc pull-off tool TLS D200

Mehrweggebinde

Dokamatic-Tischrahmenpalette 2,15x1,60m   ( 85,0 kg | 586225000 )

Dokamatic table-frame pallet 2.15x1.60m

Doka-Gitterbox 1,70x0,80m   ( 87,0 kg | 583012000 )

Doka skeleton transport box 1.70x0.80m

Doka-Mehrwegcontainer 1,20x0,80m   ( 70,0 kg | 583011000 )

Doka multi-trip transport box 1.20x0.80m

Mehrwegcontainer Unterteilung 0,80m   ( 3,7 kg | 583018000 )

Mehrwegcontainer Unterteilung 1,20m   ( 5,5 kg | 583017000 )

Multi-trip transport box partition

Doka-Mehrwegcontainer 1,20x0,80x0,41m   ( 42,5 kg | 583009000 )

Doka multi-trip transport box 1.20x0.80x0.41m

Doka-Stapelpalette 1,55x0,85m   ( 41,0 kg | 586151000 )

Doka stacking pallet 1.55x0.85m

Doka-Stapelpalette 1,20x0,80m   ( 38,0 kg | 583016000 )

Doka stacking pallet 1.20x0.80m

Doka-Kleinteilebox   ( 106,4 kg | 583010000 )

Doka accessory box

Anklemm-Radsatz B   ( 33,6 kg | 586168000 )

Bolt-on castor set B
