Product overview
[lbs]
Article #
Dokamatic S table 9'-0"x18'-0" ( 1,720.0 lbs | 581626000 )
Dokamatic S table 9'-0"x12'-0" ( 1,200.0 lbs | 581627000 )
Dokamatic S table 7'-0"x18'-0" ( 1,530.0 lbs | 581628000 )
Dokamatic S table 7'-0"x12'-0" ( 1,070.0 lbs | 581629000 )
Dokamatic S-Tisch
|
|
|
Dokamatic S table grille 9'-0"x18'-0" ( 1,330.0 lbs | 581635000 )
Dokamatic S table grille 9'-0"x12'-0" ( 935.0 lbs | 581636000 )
Dokamatic S table grille 7'-0"x18'-0" ( 1,230.0 lbs | 581637000 )
Dokamatic S table grille 7'-0"x12'-0" ( 871.0 lbs | 581638000 )
Dokamatic S-Tischrost
|
|
|
Dokamatic swivel head 40 ( 37.7 lbs | 586214000 )
Dokamatic-Schwenkkopf 40
|
Galvanized Length: 2' (60 cm) |
|
Doka floor prop Eurex 20 250 ( 28.4 lbs | 586086000 )
Length: 5' - 8'-2" (152 - 250 cm)
Doka floor prop Eurex 20 300 ( 33.7 lbs | 586087000 )
Length: 5'-8" - 9'-10" (172 - 300 cm)
Doka floor prop Eurex 20 350 ( 39.2 lbs | 586088000 )
Length: 6'-6" - 11'-6" (197 - 350 cm)
Doka floor prop Eurex 20 400 ( 48.9 lbs | 586089000 )
Length: 7'-5" - 13'-1" (227 - 400 cm)
Doka floor prop Eurex 20 550 ( 76.3 lbs | 586090000 )
Length: 9'-9" - 18'-1" (297 - 550 cm)
Doka-Deckenstütze Eurex 20
|
Galvanized |
|
Doka floor prop Eurex 30 250 ( 32.6 lbs | 586092000 )
Length: 5' - 8'-2" (152 - 250 cm)
Doka floor prop Eurex 30 300 ( 36.8 lbs | 586093000 )
Length: 5'-8" - 9'-10" (172 - 300 cm)
Doka floor prop Eurex 30 350 ( 45.2 lbs | 586094000 )
Length: 6'-6" - 11'-6" (197 - 350 cm)
Doka floor prop Eurex 30 400 ( 54.9 lbs | 586095000 )
Length: 7'-5" - 13'-1" (227 - 400 cm)
Doka floor prop Eurex 30 450 ( 64.4 lbs | 586119000 )
Length: 8'-2" - 14'-9" (248 - 450 cm)
Doka-Deckenstütze Eurex 30
|
Galvanized |
|
Universal dismantling tool ( 8.2 lbs | 582768000 )
Universal-Lösewerkzeug
|
Galvanized Length: 2'-6" (75,5 cm) |
|
Floor prop spring clamp ( 0.15 lbs | 586169000 )
Federklammer Deckenstütze
|
|
|
Dokamatic S table waling 12 12'-0" ( 238.0 lbs | 581624000 )
Dokamatic S table waling 12 18'-0" ( 358.0 lbs | 581625000 )
Dokamatic S-Tischriegel
|
Painted blue |
|
Dokamatic S table platform 3'-3"/9'-0" ( 238.0 lbs | 581631000 )
Dokamatic S table platform 3'-3"/7'-0" ( 216.0 lbs | 581632000 )
Dokamatic S-Tischbühne
|
Steel parts galvanized Timber parts varnished yellow Delivery condition: folded closed |
|
Dokamatic S platform extension 1'-8"/9'-0" ( 82.7 lbs | 581633000 )
Dokamatic S platform extension 1'-8"/7'-0" ( 70.5 lbs | 581634000 )
Dokamatic S Bühnenverbreiterung
|
Steel parts galvanized Timber parts varnished yellow |
|
Dokamatic platform profile 1.00m ( 24.3 lbs | 586221000 )
Dokamatic-Bühnenprofil 1,00m
|
Galvanized |
|
Splice plate S Top50 ( 11.9 lbs | 581614000 )
Verbindungslasche S Top50
|
Painted blue Length: 2'-6" (76 cm) |
|
Dokamatic strut connection ( 2.9 lbs | 586215000 )
Dokamatic-Stützenanschluss
|
Galvanized Height: 10" (26 cm) |
|
Dokamatic scaffold connection ( 7.5 lbs | 586216000 )
Dokamatic-Gerüstanschluss
|
Galvanized Height: 11" (27 cm) |
|
Dokamatic table frame 1.50m ( 132.0 lbs | 586224000 )
Dokamatic-Tischrahmen 1,50m
|
Galvanized |
|
Diagonal cross 9.150 ( 11.5 lbs | 582773000 )
Diagonal cross 12.150 ( 12.6 lbs | 582612000 )
Diagonal cross 18.100 ( 13.4 lbs | 582620000 )
Diagonal cross 18.150 ( 15.2 lbs | 582622000 )
Diagonalkreuz
|
Galvanized Delivery condition: folded closed |
|
Insertion beam 1.95m ( 15.7 lbs | 183074000 )
Insertion beam 2.45m ( 19.6 lbs | 183075000 )
Einschubträger
|
Varnished yellow |
|
Supporting head H20 DF ( 1.7 lbs | 586179000 )
Haltekopf H20 DF
|
Galvanized Length: 7 1/2" (19 cm) Width: 4 1/2" (11 cm) Height: 3 1/4" (8 cm) |
|
Dokamatic front wood strip 4x8cm 2.60m ( 9.3 lbs | 183046000 )
Dokamatic-Stirnholz 4x8cm 2,60m
|
Varnished yellow |
|
Spring locked connecting pin 16mm ( 0.55 lbs | 582528000 )
Federbolzen 16mm
|
Galvanized Length: 6" (15 cm) |
|
T ledge 21/42 2.00m ( 0.75 lbs | 580196000 )
T-Leiste 21/42 2,00m
|
Gray Special order only! |
|
Shifting trolley DF ( 1,250.0 lbs | 586080000 )
Umsetzwagen DF
included in scope of supply:
(A)Positioning lever for shifting trolley DF ( 13.2 lbs | 586063000 )
(B)Brace stirrup 8 ( 6.0 lbs | 582751000 )
4 pcs.
Galvanized
Width: 7 1/2" (19 cm)
Height: 1'-6" (46 cm)
Width-across: 30 mm
|
Galvanized Length: 5'-11" (181 cm) Width: 4'-3" (130 cm) Height: 5'-1" - 9'-11" (154 - 303 cm) Follow the directions in the "Operating Instructions"! |
|
Extension for shifting trolley DF ( 88.2 lbs | 586015000 )
Ausleger für Umsetzwagen DF
|
Galvanized Length: 4'-3" (128,4 cm) Follow the directions in the "Operating Instructions"! |
|
Stacking frame DF ( 181.0 lbs | 586079000 )
Aufsatzrahmen DF
|
Galvanized Length: 4'-5" (134 cm) Width: 4'-3" (130 cm) Height: 2'-6" (75 cm) |
|
Alu stacking frame DM 2.25m ( 131.0 lbs | 586238000 )
Alu-Aufsatzrahmen DM 2,25m
|
Aluminum Length: 6'-2" (187 cm) Width: 4'-2" (128 cm) Height: 7'-5" (225 cm) |
|
Attachable drive unit DF ( 1,130.0 lbs | 586062000 )
Andockantrieb DF
|
Painted blue Length: 3'-3" (100 cm) Width: 3'-3" (100 cm) Height: 4'-3" (130 cm) Follow the directions in the "Operating Instructions"! |
|
Transport fork DM 1.5t adjustable ( 2,500.0 lbs | 586233000 )
Umsetzgabel DM 1,5t verstellbar
|
Galvanized Delivery condition: folded closed Follow the directions in the "Operating Instructions"! |
|
Vertical extension DM 1.5t 3.30m ( 529.0 lbs | 586235000 )
Vertikalverlängerung DM 1,5t 3,30m
|
Galvanized Height: 11'-7" (352 cm) |
|
Extension clamp H20 for fork 1.5t ( 9.9 lbs | 586236000 )
Aufsatzklemme H20 für Gabel 1,5t
|
Galvanized Height: 1'-6" (45 cm) |
|
Extension profile H20 for fork 1.5t ( 75.2 lbs | 586237000 )
Aufsatzprofil H20 für Gabel 1,5t
|
Galvanized Length: 2'-9" (83 cm) Height: 1'-8" (52 cm) |
|
Lifting extension bracket DF 1t ( 580.0 lbs | 586068000 )
Ausleger DF 1t
|
Galvanized Delivery condition: folded closed Follow the directions in the "Operating Instructions"! |
|
Lifting extension bracket DF 1.5t ( 1,050.0 lbs | 586064000 )
Ausleger DF 1,5t
|
Galvanized Length: 15' (456 cm) Width: 2'-8" (82 cm) Height: 12'-8" (386 cm) Delivery condition: folded closed Follow the directions in the "Operating Instructions"! |
|
Transport fork DF 1t 0.90m ( 485.0 lbs | 586069000 )
Transport fork DF 1t 1.30m ( 540.0 lbs | 586070000 )
Transport fork DF 1t 2.00m ( 604.0 lbs | 586071000 )
Gabel DF 1t
|
Galvanized Length: 13'-6" (411 cm) Height: 1'-11" (58 cm) Follow the directions in the "Operating Instructions"! |
|
Transport fork DF 1.5t 0.90m ( 1,060.0 lbs | 586065000 )
Transport fork DF 1.5t 1.30m ( 1,150.0 lbs | 586066000 )
Transport fork DF 1.5t 2.00m ( 1,190.0 lbs | 586067000 )
Gabel DF 1,5t
|
Galvanized Length: 20'-11" (638 cm) Height: 2'-4" (71 cm) Follow the directions in the "Operating Instructions"! |
|
Adjustable waling extension S FF20 Top50 ( 11.5 lbs | 581615000 )
Ausgleichslasche S FF20 Top50
|
Painted blue Length: 2'-10" (87 cm) |
|
Beam clamp Top50 ( 2.6 lbs | 580081000 )
Trägerklammer Top50
|
Painted blue Height: 6" (15 cm) |
|
Connecting pin 10cm ( 0.75 lbs | 580201000 )
Verbindungsbolzen 10cm
|
Galvanized Length: 5 1/2" (14 cm) |
|
Spring cotter 5mm ( 0.066 lbs | 580204000 )
Federvorstecker 5mm
|
Galvanized Length: 5" (13 cm) |
|
Dokamatic S drop beam plate 30" ( 44.1 lbs | 581630000 )
Dokamatic S-Unterzugslasche 30"
|
Painted blue Height: 2'-9" (84 cm) |
|
Universal end-shutter support 30cm ( 2.2 lbs | 586232000 )
Universal-Abschalwinkel 30cm
|
Galvanized Height: 8" (21 cm) |
|
Dokamatic end-shutter unit 50cm ( 37.0 lbs | 586223000 )
Dokamatic-Abschaleinheit 50cm
|
Galvanized Length: 2'-4" (71 cm) Height: 1'-10" (57 cm) |
|
Framax universal corner waling ( 28.2 lbs | 588151000 )
Framax-Eckklemmschiene
|
Painted blue Leg length: 2' (60 cm) |
|
Dokamatic edge clamp 0.70m ( 8.6 lbs | 586222000 )
Dokamatic-Randklemme 0,70m
|
Galvanized |
|
Bridge edge beam clamp T 0.40m ( 22.3 lbs | 584332000 )
Gesimszwinge T 0,40m
|
Galvanized Height: 3'-5" (104 cm) |
|
Lashing strap 5.00m ( 6.2 lbs | 586018000 )
Zurrgurt 5,00m
|
Yellow |
|
Doka express anchor 16x125mm ( 0.68 lbs | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanized Length: 7" (18 cm) Follow fitting instructions! |
|
Doka coil 16mm ( 0.02 lbs | 588633000 )
Doka-Coil 16mm
|
Galvanized Diameter: 5/8" (1,6 cm) |
|
Dokamatic lifting strap 13.00m ( 23.1 lbs | 586231000 )
Dokamatic-Umsetzgurt 13,00m
|
Green Follow the directions in the "Operating Instructions"! |
|

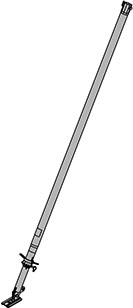

Plumbing strut 340 IB ( 36.8 lbs | 588696000 )
Justierstütze 340 IB
|
Galvanized Length: 6'-3" - 11'-3" (190,8 - 341,8 cm) |
|
Plumbing strut 540 IB ( 67.7 lbs | 588697000 )
Justierstütze 540 IB
|
Galvanized Length: 10'-2" - 18' (310,5 - 549,2 cm) |
|
Prop head EB ( 6.8 lbs | 588244500 )
Stützenkopf EB
|
Galvanized Length: 1'-4" (40,8 cm) Width: 4 1/2" (11,8 cm) Height: 7" (17,6 cm) |
|
Handrail post T 1.80m ( 39.0 lbs | 584373000 )
Einschubgeländer T 1,80m
|
Galvanized |
|
Toeboard holder T 1.80m ( 1.2 lbs | 584392000 )
Fußwehrhalter T 1,80m
|
Galvanized Height: 5 1/2" (13,5 cm) |
|
Handrail clamp S ( 25.4 lbs | 580470000 )
Schutzgeländerzwinge S
|
Galvanized Height: 4' - 5'-7" (123 - 171 cm) |
|
Handrail clamp T ( 27.1 lbs | 584381000 )
Schutzgeländerzwinge T
|
Galvanized Height: 4' - 5'-1" (122 - 155 cm) |
|
Handrail post 1.10m ( 12.1 lbs | 584384000 )
Schutzgeländer 1,10m
|
Galvanized Height: 4'-5" (134 cm) |
|
Attachable sleeve 24mm ( 0.066 lbs | 584385000 )
Steckhülse 24mm
|
PVC PE Gray Length: 6 1/2" (16,5 cm) Diameter: 1 1/8" (2,7 cm) |
|
Screw sleeve 20.0 ( 0.066 lbs | 584386000 )
Schraubhülse 20,0
|
PP Yellow Length: 8" (20 cm) Diameter: 1 1/4" (3,1 cm) |
|
Doka slab edge clamp ( 27.6 lbs | 586239000 )
Doka-Deckenabschalklemme
|
Galvanized Height: 4'-6" (137 cm) |
|
End-shutter shoe ( 3.5 lbs | 586257000 )
Abschalschuh
|
Galvanized Height: 5 1/2" (13,5 cm) |
|
End-shutter tie rod 15.0 15-40cm ( 2.0 lbs | 586258000 )
Abschalanker 15,0 15-40cm
|
Galvanized Length: 1'-10" (55 cm) |
|
Floor end-shutter profile XP ( 9.3 lbs | 586481000 )
Deckenabschalprofil XP
|
Galvanized Height: 2'-6" (77 cm) |
|
Wheel-around scaffold DF ( 97.0 lbs | 586157000 )
Mobilgerüst DF
|
Aluminum Length: 6'-1" (185 cm) Width: 2'-7" (80 cm) Height: 8'-4" (255 cm) Delivery condition: folded closed |
|
Wheel-around scaffold DF accessory set ( 29.3 lbs | 586164000 )
Zubehörset Mobilgerüst DF
|
Aluminum Timber parts varnished yellow Length: 6'-2" (189 cm) |
|
Platform stairway 0.97m ( 51.8 lbs | 586555000 )
Podesttreppe 0,97m
|
Aluminum Width: 4' (121 cm) Pay attention to the national, technical safety regulations! |
|
Strip tensioner B 6.00m ( 7.3 lbs | 580394500 )
Bandzwinge B 6,00m
|
Galvanized Special order only! |
|
Strip tensioner B 5.00m ( 7.7 lbs | 580394000 )
Bandzwinge B 5,00m
|
Galvanized Special order only! |
|
Plastic mallet 4kg ( 9.9 lbs | 586097000 )
Kunststoffhammer 4kg
|
Blue Length: 3'-7" (110 cm) |
|
Reversible ratchet 1/2" ( 1.6 lbs | 580580000 )
Umschaltknarre 1/2"
|
Galvanized Length: 1' (30 cm) |
|
Box nut 30 1/2" ( 0.44 lbs | 580575000 )
Stecknuss 30 1/2"
|
|
|
Table Lifting System TLS
Basic unit S B TLS ( 4,880.0 lbs | 586354000 )
Basiseinheit S B TLS
|
Length: 14'-2" (431 cm) Width: 7'-11" (242 cm) Height: 9' (274 cm) Follow the directions in the "Operating Instructions"! |
|
Lifting platform TLS center 3.00x1.60m ( 683.0 lbs | 586307000 )
Hubbühne TLS mitte 3,00x1,60m
|
Height: 4'-7" (139 cm) |
|
Lifting platform TLS back 3.00x1.60m ( 829.0 lbs | 586308000 )
Hubbühne TLS hinten 3,00x1,60m
|
Height: 4'-7" (139 cm) |
|
Protective grating TLS 1.80m ( 48.5 lbs | 586334000 )
Schutzgitter TLS 1,80m
|
Galvanized Length: 4'-8" (141 cm) Height: 4' (121 cm) |
|
Protecting metal sheet TLS right ( 26.5 lbs | 586309000 )
Protecting metal sheet TLS left ( 26.5 lbs | 586310000 )
Schutzblech TLS
|
Painted yellow Length: 2'-9" (85 cm) Width: 1'-1" (32 cm) Height: 2'-5" (73 cm) |
|
Lifting mast TLS 1.50m ( 181.0 lbs | 586328000 )
Hubmast TLS 1,50m
|
Galvanized |
|
Supporting profile TLS 5.15m ( 463.0 lbs | 586317000 )
Abstützprofil TLS 5,15m
|
Galvanized |
|
Pressure strut TLS 3.70m ( 154.0 lbs | 586318000 )
Druckstrebe TLS 3,70m
|
Galvanized |
|
Floor support TLS 2'-5" ( 110.0 lbs | 586316000 )
Deckenauflager TLS 2'-5"
|
|
|
Adjusting device TLS ( 22.0 lbs | 586336000 )
Justiereinheit TLS
|
Galvanized Length: 1'-5" (42 cm) Width: 6 1/2" (16 cm) Height: 6 1/2" (16 cm) |
|
Cable routing TLS ( 4.4 lbs | 586333000 )
Kabelführung TLS
|
Galvanized Length: 1'-2" (35 cm) |
|
Lifting mast anchoring TLS cross bar 2'-5" ( 209.0 lbs | 586330000 )
Hubmastverankerung TLS Traverse 2'-5"
|
|
|
Lifting mast anchoring TLS strut ( 48.5 lbs | 586331000 )
Hubmastverankerung TLS Strebe
|
Galvanized Length: 5' (153,5 cm) Width: 1'-8" (50 cm) |
|
Lifting mast anchoring TLS wall ( 34.2 lbs | 586372000 )
Hubmastverankerung TLS Wand
|
Galvanized Length: 1'-8" (52 cm) |
|
Lifting mast anchoring TLS mast connection ( 33.1 lbs | 586332000 )
Hubmastverankerung TLS Mastanschluss
|
Galvanized Length: 2'-5" (72,6 cm) Width: 2'-2" (66 cm) |
|
Base profile TLS 2.14m ( 61.7 lbs | 586312000 )
Bodenprofil TLS 2,14m
|
Galvanized |
|
Strut for base profile TLS ( 26.0 lbs | 586313000 )
Strebe für Bodenprofil TLS
|
Galvanized Length: 8'-5" (257,3 cm) |
|
Beam for landing level safety gate TLS 2'-5" ( 81.6 lbs | 586320000 )
Träger für Etagentüre TLS 2'-5"
|
|
|
Landing level safety gate TLS with handle ( 72.8 lbs | 586321000 )
Etagentüre TLS mit Griff
|
Length: 5' (153 cm) Height: 4'-2" (126 cm) |
|
Landing level safety gate TLS w. limit switch ( 69.7 lbs | 586355000 )
Etagentüre S B TLS mit Endschalter
|
|
Length: 5' (153 cm) Height: 4'-2" (126 cm) |
|
Switch box S B TLS ground control ( 8.8 lbs | 586356000 )
Schaltkasten S B TLS Bodensteuerung
|
|
Height: 1'-10" (55 cm) |
|
Switch box S B TLS landing level safety gate ( 8.8 lbs | 586357000 )
Schaltkasten S B TLS Etagentüre
|
|
Height: 1'-10" (55 cm) |
|
Control cable TLS 20.0m blue ( 8.8 lbs | 586303000 )
Control cable TLS 20.0m red ( 8.8 lbs | 586304000 )
Steuerkabel TLS
|
|
|
|
Bar for limit switch TLS ( 11.0 lbs | 586325000 )
Endschalterschiene TLS
|
Galvanized Length: 6'-1" (186 cm) |
|
Lifting cross-bar TLS 10.50m ( 41.9 lbs | 586327000 )
Hebetraverse TLS 10,50m
|
Galvanized Length: 2'-6" (76,5 cm) |
|
Lifting cross-bar TLS 15.00m ( 141.0 lbs | 586373000 )
Hebetraverse TLS 15,00m
|
Galvanized Length: 6'-2" (189 cm) |
|
Lifting spreader beam TLS 67kN ( 150.0 lbs | 586326500 )
Hebeträger TLS 67kN
|
Galvanized Length: 11'-1" (338 cm) Follow the directions in the "Operating Instructions"! |
|
Tool box TLS ( 37.5 lbs | 586337000 )
Werkzeugbox TLS
consisting of:
(A)Combination wrench 8 ( 0.066 lbs | 586343000 )
(B)Combination wrench 10 ( 0.088 lbs | 586342000 )
(C)Combination wrench 13 ( 0.13 lbs | 586341000 )
(D)Combination wrench 17 ( 0.35 lbs | 586340000 )
Length: 8" (20 cm)
(E)Combination wrench 19 ( 0.31 lbs | 582837000 )
(F)Combination wrench 22 ( 0.44 lbs | 582838000 )
(G)Combination wrench 24 ( 0.55 lbs | 582839000 )
(H)Combination wrench 30 ( 0.95 lbs | 582840000 )
(I)Reversible ratchet 3/4" ( 3.3 lbs | 580894000 )
Galvanized
Length: 1'-8" (50 cm)
(J)Box nut 50 3/4" ( 1.8 lbs | 581449000 )
(K)Universal cone spanner 15.0/20.0 ( 2.0 lbs | 581448000 )
Galvanized
Length: 3 1/2" (9 cm)
Width-across: 50 mm
(L)Box nut 24 1/2" L ( 0.66 lbs | 586364000 )
(M)Extension 20cm 3/4" ( 1.5 lbs | 580683000 )
(N)Set of ball-head hexagon-socket screw keys ( 1.3 lbs | 586346000 )
(O)Slot-screw screwdriver 0.6x3.5 ( 0.44 lbs | 586344000 )
(P)Slot-screw screwdriver 1x5.5 ( 0.44 lbs | 586366000 )
(Q)Box spanners 1/2" set of 29 ( 12.3 lbs | 586345000 )
(R)Box nut 19 3/4" ( 0.44 lbs | 586375000 )
(S)Box nut 24 3/4" ( 0.46 lbs | 500679030 )
(T)Box nut 27 3/4" ( 0.6 lbs | 586376000 )
(U)Box nut 30 3/4" ( 0.73 lbs | 586377000 )
|
|
|
Torque wrench 3/4" 75-400Nm ( 5.1 lbs | 586374000 )
Drehmomentschlüssel 3/4" 75-400Nm
|
Galvanized Length: 2'-3" (69 cm) |
|
Maintenance toolbox TLS ( 13.4 lbs | 586369000 )
Wartungs-Werkzeugbox TLS
consisting of:
(A)Grease cartridge TLS ( 1.0 lbs | 586368000 )
(B)Filling press TLS ( 2.1 lbs | 586367000 )
(C)Thickness gauge set 0.05-1.00mm ( 0.2 lbs | 586350000 )
(D)Pliers for external circlips 40-100mm ( 0.71 lbs | 586348000 )
(E)Water pump nut pliers 250mm ( 0.71 lbs | 586347000 )
(F)Screw dr. f. recessed-head scr. PZ 2 ( 0.33 lbs | 586351000 )
(G)Combination wrench 14 ( 0.2 lbs | 586349000 )
(H)Digital multimeter TLS ( 0.49 lbs | 586353000 )
(I)Dummy plug TLS 4 poles ( 0.088 lbs | 586352000 )
|
|
|
Brake-disk pull-off tool TLS D200 ( 9.5 lbs | 586370000 )
Scheibenabzieher TLS D200
|
Height: 11" (27 cm) Width-across: 22 mm |
|
Doka 4-part chain 3.20m ( 33.1 lbs | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Cone screw B 7cm ( 1.9 lbs | 581444000 )
Konusschraube B 7cm
|
red Length: 4" (10 cm) Diameter: 2 3/4" (7 cm) Width-across: 50 mm |
|
Universal climbing cone 15.0 ( 2.9 lbs | 581977000 )
Universal-Kletterkonus 15,0
|
Galvanized Orange Length: 5" (12,8 cm) Diameter: 2" (5,3 cm) |
|
Sealing sleeve K 15.0 ( 0.066 lbs | 581976000 )
Dichtungshülse K 15,0
|
Orange Length: 4 1/2" (12 cm) Diameter: 2 1/4" (6 cm) |
|
Stop anchor 15.0 11.5cm 90 ( 1.2 lbs | 581868000 )
Stop anchor 15.0 16cm 55 ( 0.84 lbs | 581997000 )
Stop anchor 15.0 40cm 55 ( 1.6 lbs | 581999000 )
Sperranker 15,0
|
Non-treated |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 192.0 lbs | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanized Height: 3'-8" (113 cm) |
|
Doka multi-trip transport box 1.20x0.80m ( 154.0 lbs | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanized Height: 2'-7" (78 cm) |
|
Multi-trip transport box partition 0.80m ( 8.2 lbs | 583018000 )
Multi-trip transport box partition 1.20m ( 12.1 lbs | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanized Timber parts varnished yellow |
|
Doka stacking pallet 1.55x0.85m ( 90.4 lbs | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanized Height: 2'-6" (77 cm) |
|
Doka stacking pallet 1.20x0.80m ( 83.8 lbs | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanized Height: 2'-6" (77 cm) |
|
Doka accessory box ( 235.0 lbs | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanized Length: 5'-1" (154 cm) Width: 2'-9" (83 cm) Height: 2'-6" (77 cm) Special order only! |
|
Bolt-on castor set B ( 74.1 lbs | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
