Measures for increasing the stability of floor-slab formwork

Measures for increasing the stability of floor-slab formwork

Bracing clamp B

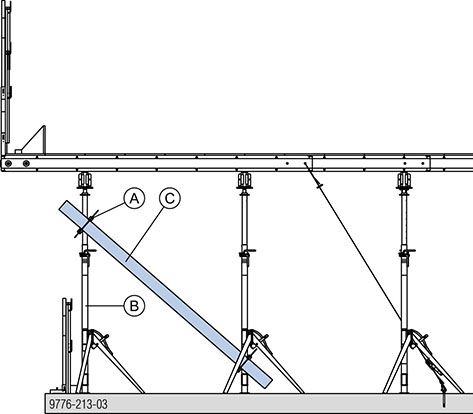

Planks can be attached to the floor props as diagonal braces, using the Bracing clamp B.

NOTICE

▪ Used as a set-up aid and takes horizontal loads during assembly.

▪ Not suitable for sustaining horizontal loads during pouring.

▪ Always hammer in the wedge from top to bottom!

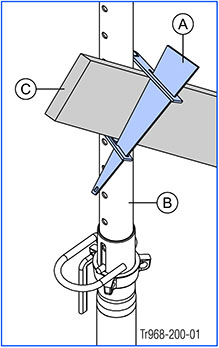

A Bracing clamp B

B Doka floor prop

C Plank

Possible plank/floor-prop combinations with the Bracing clamp B

Eurex 20	Plank
	2.4 x 15		3 x 15		4 x 15		5 x 10		5 x 12		5 x 15
	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT
150	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
250	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
300	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
350	—	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
400	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
450	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
550	✓	✓	✓	✓	✓	✓	✓	—	✓	—	✓	—

Eurex 30	Plank
	2.4 x 15		3 x 15		4 x 15		5 x 10		5 x 12		5 x 15
	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT
250	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
300	—	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
350	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
400	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓
450	✓	✓	✓	✓	✓	✓	✓	—	✓	—	✓	—
550	✓	✓	✓	✓	✓	—	✓	—	✓	—	—	—

Eco 20	Plank
	2.4 x 15		3 x 15		4 x 15		5 x 10		5 x 12		5 x 15
	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT	IT	OT
250	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
300	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
350	—	✓	—	✓	✓	✓	✓	✓	✓	✓	✓	✓
400	—	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓	✓

Legend:
IT	Inner tube
OT	Outer tube
✓	Possible to combine
—	Not possible to combine

.
