Product description
Doka floor prop Eurex 20 top 700
The Doka floor prop Eurex 20 top 700 is an adjustable telescopic steel construction prop that conforms to EN 1065. It is intended to be used as a vertical prop for temporary works equipment.
|

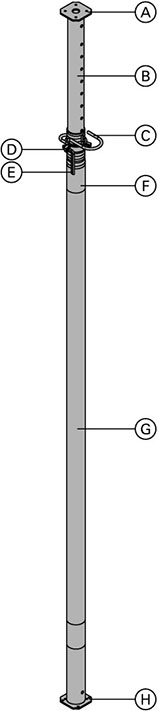

A Head-plate |
|
B Inner tube |
|
C Fastening clamp |
|
D Adjusting nut |
|
E Toggle lever |
|
F Rating label |
|
G Outer tube |
|
H Baseplate |
The main features:
▪ DIB (German Institute of Construction Engineering) approval n° Z-8.311-905
▪ EN 1065-compliant floor prop
▪ high load-bearing capacity
- see the section headed 'Permitted carrying capacity'
▪ numbered pegging holes, for easier height adjustment
▪ Quick connection:
Head adapters of various types can be attached in a crane-handling-safe manner with the spring-locked connecting pin
▪ Drop-out latch:
For safety reasons, Doka props have latches to prevent the inner tube sliding out of the outer tube.
▪ special thread geometry, which makes the prop easier to release even when it is under high load
▪ When the prop is pushed in all the way, it still leaves a clear 10 cm gap so that the operator's hands are not trapped.
▪ elbowed fastening clamps, reducing the risk of injury and making the props easier to operate
▪ Galvanised, long-life constructional design
.
