Permitted carrying capacity

Used as free (non-system-dependent) construction props

Permitted capacities [kN] as a function of the extension length and the position of the outer tube
(as per Gen. Building-Inspectorate Approval Z-8.311-905)

	Eurex 20 top											Eurex 30 top
	150	250		300		350		400		550		250		300		350		400		450		550
Prop length [m]	Top or bottom	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Bottom	Top	Position of outer tube*)
																								Prop category to EN 1065
		B25		B30
			C25		C30	C35	C35	C40	C40	C55	C55	C25	C25	C30	C30	C35	C35	C40	C40	C45	C45	C55	C55
	D15	D25	D25	D30	D30	D35	D35	D40	D40	D55	D55
												E25	E25	E30	E30	E35	E35	E40	E40	E45	E45	E55	E55
5.5										20.6	22.7											31.8	33.3
5.4										21.6	23.9											33.6	35.3
5.3										22.5	25.2											35.5	37.2
5.2										23.6	26.5											37.3	39.2
5.1										24.7	27.9											39.2	41.0
5.0										25.8	29.4											41.2	41.2
4.9										27.2	31.0
4.8										28.7	32.5
4.7										30.1	34.2
4.6										31.6	35.9
4.5										33.2	36.7									32.7	34.5
4.4										34.9										34.8	36.8
4.3										36.7										36.8	39.2
4.2																				39.2	41.2
4.1																				41.2
4.0								21.5	24.8									31.5	34.2
3.9								23.0	26.8									33.8	36.8
3.8								24.4	28.7									36.1	39.3
3.7								26.0	30.8									38.7	41.2
3.6								27.7	33.2									41.2
3.5						20.8	24.5	29.4	35.5							30.9	34.2
3.4						22.3	26.7	31.0	36.7							33.3	36.8
3.3						23.8	28.9	32.4								35.8	39.3
3.2						25.4	31.3	33.5								38.2	41.2
3.1						27.1	34.0	34.5								41.2
3.0				20.7	24.8	28.8	36.7	35.5						30.9	34.8
2.9				22.4	27.4	29.6		36.5						33.6	37.3
2.8				24.0	29.9	30.5		36.7						36.2	39.7
2.7				25.3	32.6	31.5								38.6	41.2
2.6				26.2	35.3	32.7								40.0
2.5		20.2	24.8	27.0	36.7	33.9						30.9	37.0	41.2
2.4		21.3	27.2	27.8		35.0						32.2	38.5
2.3		22.5	29.5	28.7		36.1						33.6	40.1
2.2		23.3	31.9	29.8		36.7						34.8	41.2
2.1		24.0	34.3	31.1								35.9
2.0		24.6	36.7	32.4								37.0
1.9		25.8		34.0								38.7
1.8		26.9		35.6								40.4
1.7		28.4										41.2
1.6		30.1
1.5	20.6	31.8
1.4
1.3
1.2
1.1
1.0

*) Position of outer tube

Bottom	Top

When used in Dokamatic and Dokaflex tables, or as temporary reshoring (with props restrained)

Permitted load-bearing capacity [kN]

Prop length [m]		Eurex 20 top					Eurex 30 top
Prop length [m]	150	250	300	350	400	550	250	300	350	400	450	550
5.5						30						41.2
5.4						32
5.3						34
5.2						36.7
5.1
5.0
4.9
4.8
4.7
4.6
4.5											41.2
4.4
4.3
4.2
4.1
4.0					30					41.2
3.9					32
3.8					34
3.7					36.7
3.6
3.5				30					41.2
3.4				32
3.3				34
3.2				36.7
3.1
3.0			30					41.2
2.9			32
2.8			34
2.7			36.7
2.6
2.5		30					41.2
2.4		32
2.3		34
2.2		36.7
2.1
2.0
1.9
1.8
1.7
1.6
1.5	25
1.4
1.3
1.2
1.1
1.0

NOTICE

When used as temporary reshoring:

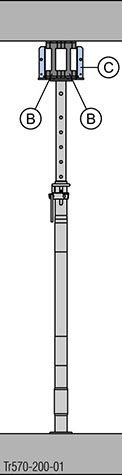

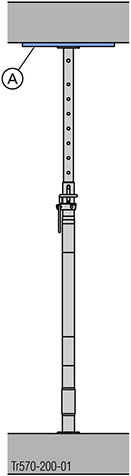

The baseplate stands directly on the floor, the headplate is directly against the slab (a formwork panel or 2 Doka beams H20 can be used as packers at top).

A Formwork sheet

B Doka beam H20

C Lowering head H20 or 4-way head H20
