Product description
Doka floor props Eurex top are extendable floor props made of steel and are compliant with EN 1065. They are designed for use as vertical props for temporary structures.
|

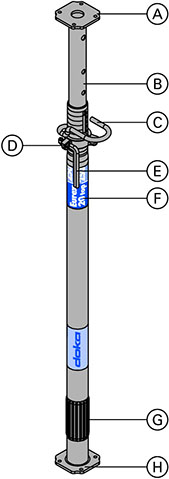

A Head plate |
|
B Inner tube |
|
C Fastening clamp |
|
D Adjusting nut |
|
E Toggle lever |
|
F Rating label |
|
G Outer tube with impact protector |
|
H Footplate |
|
|
You will also find information on correct usage of the Doka floor prop Eurex 20 top 700 in the User Information booklet of the same name. |
The main features:
▪ DIB (German Institute of Construction Engineering) approval n° Z-8.311-905
▪ EN 1065-compliant floor prop
▪ high load-bearing capacity
- see the section headed 'Permitted carrying capacity'
▪ numbered pegging holes for height adjustment
▪ Quick connection:
Head adapters of various types can be attached in a crane-handling-safe manner with the spring-locked connecting pin
▪ Drop-out latch:
For safety reasons, Doka props have latches to prevent the inner tube sliding out of the outer tube.
▪ the special geometry of the thread, which makes the prop easier to release even when it is under high load
▪ When the prop is pushed in all the way, it still leaves a clear 10 cm gap so that the operator's hands are not trapped.
▪ elbowed fastening clamps, reducing the risk of injury and making the props easier to operate
▪ Designed and galvanised for a long service life
▪ Impact protector:
Optimum protection against damage when adjusting/setting up the prop using the Plastic mallet 4kg.
The following props do not have an impact protector:
- Eurex 20 top 150
- Eurex 30 top 550
Practical examples
|

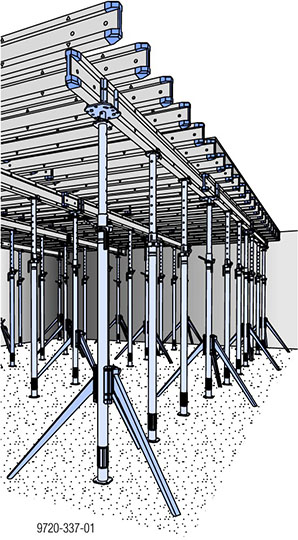

Doka Floor Systems |

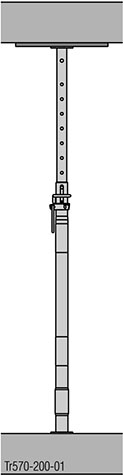

Temporary reshoring |
|---|---|
|
|
|
e.g.: ▪ Dokamatic table ▪ Dokaflex table ▪ Panel floor formwork Dokadek ▪ Dokaflex Follow the directions in the appropriate User Information booklet. |
|
.
