Applicational range

Attachment methods

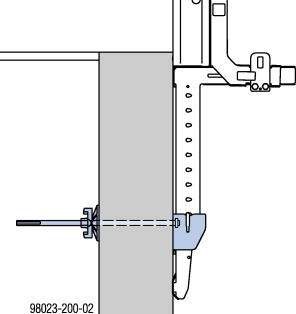

with End-shutter shoe
and End-shutter tie rod 15.0 15-40cm

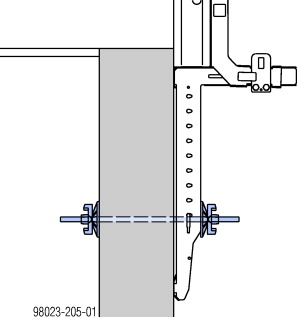

with Tie rod 15.0
and Super plate 15.0

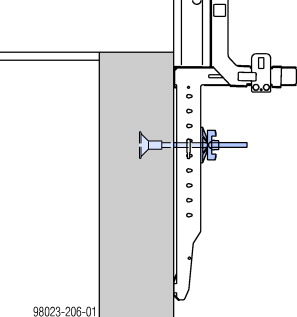

with Bridge edge beam anchor 15.0

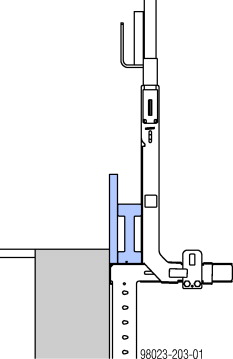

Stop-end

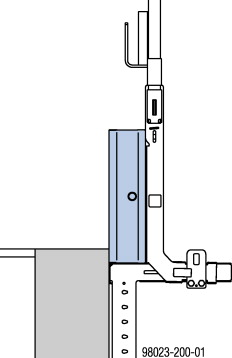

with framed formwork panels

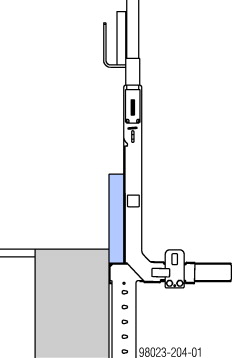

with Doka beam H20
and form-ply

with planks










Ways of safeguarding slab edges

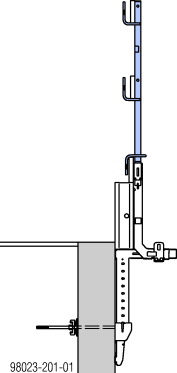

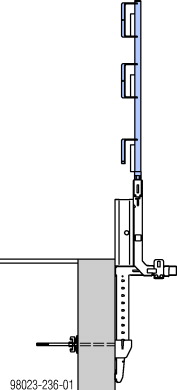

with Handrail post XP 1.20m

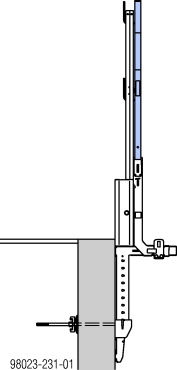

with Handrail post 1.10m

with Handrail post 1.00m

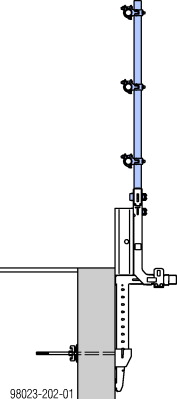

with Scaffold tube 48.3mm
and screw-on couplers













.
