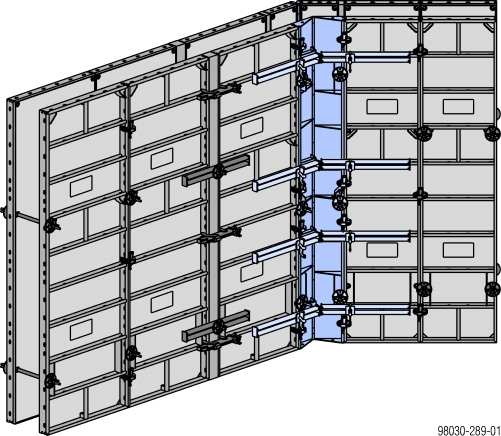

Shown here on Frami Xlife panels 2.70m.
Frami Xlife also has the perfect solution ready for acute and obtuse-angled corners – the Frami hinged corners.
Panel heights of the hinged corners:
▪ 1.20m
▪ 1.50m
|
Hinged inside corner I |
|---|
a ... 0.7 cm b ... 24.3 cm |
|
Hinged outside corner A |
Hinged outside corner A |
|---|---|
a ... 0.85 cm |
a ... 0.5 cm b ... 1.2 cm |
Note:
The Hinged outside corner A (galvanised) cannot be combined with the Hinged outside corner A (powder-coated).
N° of universal walings in the outside and inside corners:
|
Panel height |
N° of universal walings |
|---|---|
|
1.20 m |
4 |
|
1.50 m |
4 |
|
2.70 m |
8 |
|
3.00 m |
8 |
Position of the universal walings:
In every support level of the Hinged inside corner I.
Note:
For angles of less than 120°, no universal walings are needed in inside corners.
|
|
NOTICE Where there are closures, provide extra Universal walings as shown in the section headed 'Length adjustment using closures'. |
Number of Frami clamps in the hinged outside corner:
|
Panel height |
Width of panel next to hinged outside corner |
|
|---|---|---|
|
Up to 60 cm |
Up to 90 cm |
|
|
1.20 m |
4 |
6 |
|
1.50 m |
4 |
6 |
|
2.70 m |
8 |
12 |
|
3.00 m |
8 |
12 |
|
|
NOTICE For details regarding extra inter-panel connections on outside corners (for increased tensile loads), see the section headed 'Inter-panel connections for increased tensile loads'. |
.
