Positions of the interconnecting and form-tie components and accessories needed for: |
|---|
|
▪ Lifting and setting down ▪ Crane-handling ▪ Pouring platform ▪ Casting the concrete ▪ Wind loads |
|
Frami clamp: Permitted tensile force: 10.0 kN Permitted shear force: 5.0 kN Permitted moment: 0.2 kNm |
|
Frami aligning clamp: Permitted tensile force: 10.0 kN Permitted moment: 0.45 kNm |
|
Frami universal waling: Permitted moment: 1.3 kNm |
|

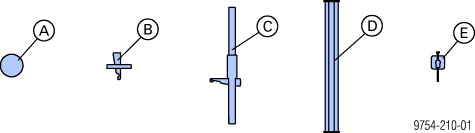

A Tie-rod 15.0mm + Super-plate 15.0 |
|
B Frami clamp |
|
C Frami aligning clamp |
|
D Frami universal waling 0.70m or 1.25m |
|
E Frami wedge clamp |
|
|
NOTICE Do not oil or grease wedge-clamped joints. |
.
