Edge protection on the structure – railing-height up to 1.80 m
|
Safety barriers |
Protective grating XP |
Guardrail boards |
Scaffold tubes |
Gap-free boarding |
Railing height: 170 cm |
Railing height: 177 cm (with 15 cm wide guardrail boards) |
Railing height: 167 cm |
Railing height: 177 cm (with 15 cm wide guardrail boards) |
Please note: With all these barrier variants, it is permissible to install netting to screen the crew from view and to prevent small items from falling. Statically, this is the equivalent of gap-free boarding. However, it is not permissible to use the Edge protection system XP for stretching net systems as fall protection in accordance with EN 13374!
|
|
|
|
|

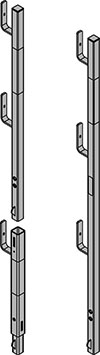

Handrail post XP 1.20m |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fixing devices |
Railing clamp XP 40cm |
Railing clamp XP 85cm |
Handrail-post shoe XP |
Balcony adapter XP |
|
|
|
|
|
|
Areas of use |
▪ Clamping range: 2 - 43 cm ▪ Fastened at end-face of concrete floor-slabs |
▪ Clamping range: 2 - 85 cm ▪ Fastened to end-face of e.g. cantilevered parapets on bridges |
▪ Floor-mounted on concrete floor-slabs |
▪ End-face attachment for balconies |
|
Anchorages |
— |
— |
▪ with Doka express anchor 16x125mm |
▪ with Bridge edge beam anchor 15.0 |
.
