Article list
[kg]
Article N°
Top100 tec waling WU14 0.50m ( 15.2 kg | 586901000 )
Top100 tec waling WU14 0.75m ( 21.4 kg | 586902000 )
Top100 tec waling WU14 1.00m ( 28.6 kg | 586903000 )
Top100 tec waling WU14 1.25m ( 38.3 kg | 586904000 )
Top100 tec waling WU14 1.50m ( 43.3 kg | 586905000 )
Top100 tec waling WU14 1.75m ( 51.2 kg | 586906000 )
Top100 tec waling WU14 2.00m ( 57.8 kg | 586907000 )
Top100 tec waling WU14 2.25m ( 67.8 kg | 586908000 )
Top100 tec waling WU14 2.50m ( 72.2 kg | 586909000 )
Top100 tec waling WU14 2.75m ( 79.0 kg | 586910000 )
Top100 tec waling WU14 3.00m ( 85.8 kg | 586911000 )
Top100 tec waling WU14 3.50m ( 100.7 kg | 586912000 )
Top100 tec waling WU14 4.00m ( 114.2 kg | 586913000 )
Top100 tec waling WU14 4.50m ( 136.5 kg | 586914000 )
Top100 tec waling WU14 5.00m ( 144.5 kg | 586915000 )
Top100 tec waling WU14 5.50m ( 166.5 kg | 586916000 )
Top100 tec waling WU14 6.00m ( 182.2 kg | 586917000 )
Top100 tec-Riegel WU14
|
Painted blue |
|
Top100 tec outside corner waling ( 76.8 kg | 586919000 )
Top100 tec-Außeneckriegel
|
Painted blue Leg length: 110 cm |
|
Top100 tec inside corner waling ( 23.4 kg | 586918000 )
Top100 tec-Inneneckriegel
|
Painted blue Leg length: 45.9 cm |
|
Top100 tec corner profile 1.15m ( 4.7 kg | 586921000 )
Top100 tec corner profile 2.90m ( 12.5 kg | 586920000 )
Top100 tec corner profile 3.50m ( 14.5 kg | 586933000 )
Top100 tec-Eckprofil
|
Galvanised, powder-coated |
|
Waling clamp H20 ( 0.22 kg | 580114000 )
Riegelklammer H20
|
Galvanised Width: 8 cm Width-across: 13 mm |
|
Waling clamp 2G ( 0.45 kg | 580118000 )
Riegelklammer 2G
|
Galvanised Width: 7.7 cm Height: 12 cm Width-across: 19 mm |
|
Flange clamp G ( 1.1 kg | 580120000 )
Flanschklammer G
|
Galvanised Width: 13 cm Width-across: 19 mm |
|
Beam screw S 8/70 ( 0.06 kg | 580116500 )
Riegelverschraubung S 8/70
|
Galvanised Length: 8 cm Width-across: 13 mm |
|
Beam screw H 8/70 ( 0.06 kg | 580117000 )
Riegelverschraubung H 8/70
|
Galvanised Length: 8 cm Width-across: 13 mm |
|
Fastening plate ( 2.7 kg | 580110000 )
Anschraublasche
|
Painted blue Width: 13 cm Height: 15 cm Width-across: 24 mm |
|
Flange claw ( 1.0 kg | 580137000 )
Flanschkralle
|
Galvanised Width: 17 cm Width-across: 18 mm |
|
Lifting bracket ( 6.2 kg | 580460000 )
Kranöse
|
Galvanised Height: 59 cm |
|
Top100 tec formwork element connector ( 11.6 kg | 586923000 )
Top100 tec-Elementverbinder
|
Painted blue Length: 76 cm |
|
Top100 tec adjustable waling extension ( 20.9 kg | 586924000 )
Top100 tec-Ausgleichslasche
|
Painted blue Length: 137 cm |
|
Top100 tec ply joint adjuster ( 14.3 kg | 586935000 )
Top100 tec-Einrichtlasche
|
Galvanised Length: 76 cm |
|
Beam clamp Top50 ( 1.2 kg | 580081000 )
Trägerklammer Top50
|
Painted blue Height: 15 cm |
|
Top100 tec anchoring plate ( 7.1 kg | 586925000 )
Top100 tec-Ankerungslasche
|
Painted blue Length: 56 cm |
|
Top100 tec internal angle plate ( 25.8 kg | 586926000 )
Top100 tec-Innenecklasche
|
Painted blue Leg length: 70 cm |
|
Top100 tec transition plate 21mm ( 15.5 kg | 586927000 )
Top100 tec-Übergangslasche 21mm
|
Painted blue Height: 51 cm |
|
Top100 tec angle tie bracket WU14 ( 8.9 kg | 586928000 )
Top100 tec-Winkelspanner WU14
|
Painted blue Length: 26.9 cm |
|
Connecting pin 10cm ( 0.34 kg | 580201000 )
Verbindungsbolzen 10cm
|
Galvanised Length: 14 cm |
|
Connecting pin 25cm ( 0.58 kg | 580202000 )
Verbindungsbolzen 25cm
|
Galvanised Length: 25 cm |
|
Spring cotter 5mm ( 0.03 kg | 580204000 )
Federvorstecker 5mm
|
Galvanised Length: 13 cm |
|
Stacking plate H20 ( 8.3 kg | 580310000 )
Aufstocklasche H20
|
Galvanised Length: 68.8 cm Width-across: 30 mm |
|
Joint plate 3.00m ( 36.8 kg | 580332000 )
Joint plate 4.00m ( 47.7 kg | 580334000 )
Ausgleichsschiene
|
Powder-coated blue |
|
T ledge 21/42 2.00m ( 0.34 kg | 580196000 )
T-Leiste 21/42 2,00m
|
Grey |
|
Box-out clamp type 1 .....cm ( 17.4 kg | 580066000 )
Aussparungsklemme Typ 1 .....cm
|
Painted blue Leg length: 10 cm |
|
Box-out clamp type 2 .....cm ( 17.4 kg | 580067000 )
Aussparungsklemme Typ 2 .....cm
|
Painted blue Leg length: 10 cm |
|
Wall-formwork support angle ( 6.6 kg | 588967000 )
Auflagewinkel Wandschalung
|
Galvanised Length: 15.8 cm Width: 12 cm Height: 28 cm |
|
Panel strut 340 IB ( 24.3 kg | 580365000 )
Elementstütze 340 IB
consisting of:
(A)Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Galvanised
Length: 190.8 - 341.8 cm
(B)Adjusting strut 120 IB ( 7.6 kg | 588248500 )
Galvanised
Length: 81.5 - 130.6 cm
|
Galvanised Delivery condition: folded closed |
|
Panel strut 540 IB ( 41.4 kg | 580366000 )
Elementstütze 540 IB
consisting of:
(A)Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Galvanised
Length: 310.5 - 549.2 cm
(B)Adjusting strut 220 IB ( 10.9 kg | 588251500 )
Galvanised
Length: 172.5 - 221.1 cm
|
Galvanised Delivery condition: folded closed |
|

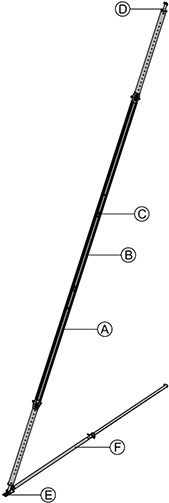

Eurex 60 550
depending on length, comprising:
(A)Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Powder-coated blue
Aluminium
Length: 343 - 553 cm
(B)Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Powder-coated blue
Aluminium
Length: 250 cm
(C)Coupler Eurex 60 ( 8.6 kg | 582652000 )
Aluminium
Length: 100 cm
Diameter: 12.8 cm
(D)Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Galvanised
Length: 15 cm
Width: 15 cm
Height: 30 cm
(E)Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Galvanised
Length: 31 cm
Width: 12 cm
Height: 33 cm
(F)Adjusting strut 540 Eurex 60 IB ( 27.8 kg | 582659500 )
Galvanised
Length: 303.5 - 542.2 cm
|
Delivery condition: separate parts |
|
Prop head EB ( 3.1 kg | 588244500 )
Stützenkopf EB
|
Galvanised Length: 40.8 cm Width: 11.8 cm Height: 17.6 cm |
|
Prop head Eurex 60 Top50 ( 7.1 kg | 582665000 )
Stützenkopf Eurex 60 Top50
|
Galvanised Height: 50 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Xsafe plus lifting adapter for beam formwork ( 14.0 kg | 586439000 )
Xsafe plus-Umsetzadapter Trägerschalung
|
Galvanised Width: 66 cm Height: 89 cm |
|
Universal bracket 90 ( 30.4 kg | 580476000 )
Universal-Konsole 90
|
Galvanised Length: 121 cm Height: 235 cm |
|
Universal corner bracket 90 right ( 29.5 kg | 580071000 )
Universal corner bracket 90 left ( 29.5 kg | 580070000 )
Universal-Eckkonsole 90
|
Galvanised Length: 152 cm Height: 235 cm |
|
Top scaffold bracket L ( 12.6 kg | 587153500 )
Betonierkonsole L
|
Galvanised Length: 101 cm Height: 159 cm |
|
Top scaffold bracket L painted ( 12.0 kg | 587153000 )
Betonierkonsole L lackiert
|
Painted blue Length: 101 cm Height: 159 cm |
|
Universal railing shackle ( 3.0 kg | 580478000 )
Universal-Geländerbügel
|
Galvanised Height: 20 cm |
|
Scaffold tube connection ( 0.27 kg | 584375000 )
Gerüstrohranschluss
|
Galvanised Height: 7 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Swivel coupler 48mm ( 1.5 kg | 582560000 )
Drehkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Handrail post XP 1.20m ( 4.1 kg | 586460000 )
Geländersteher XP 1,20m
|
Galvanised Height: 118 cm |
|
Toeboard holder XP 1.20m ( 0.64 kg | 586461000 )
Fußwehrhalter XP 1,20m
|
Galvanised Height: 21 cm |
|
Handrail post XP 0.60m ( 5.0 kg | 586462000 )
Geländersteher XP 0,60m
|
Galvanised Height: 68 cm |
|
Toeboard holder XP 0.60m ( 0.77 kg | 586463000 )
Fußwehrhalter XP 0,60m
|
Galvanised Height: 21 cm |
|
Protective grating XP 2.70x1.20m ( 22.2 kg | 586450000 )
Protective grating XP 2.50x1.20m ( 20.5 kg | 586451000 )
Protective grating XP 2.00x1.20m ( 17.4 kg | 586452000 )
Protective grating XP 1.20x1.20m ( 12.0 kg | 586453000 )
Schutzgitter XP
|
Galvanised |
|
Protective grating XP 2.70x0.60m ( 10.1 kg | 586466000 )
Protective grating XP 2.50x0.60m ( 9.5 kg | 586472000 )
Protective grating XP 2.00x0.60m ( 8.0 kg | 586473000 )
Protective grating XP 1.20x0.60m ( 5.0 kg | 586491000 )
Schutzgitter XP
|
Galvanised |
|
Velcro fastener 30x380mm ( 0.02 kg | 586470000 )
Klettverschluss 30x380mm
|
Yellow |
|
Railing clamp XP 40cm ( 7.7 kg | 586456000 )
Geländerzwinge XP 40cm
|
Galvanised Height: 73 cm |
|
Timber-beam formwork adapter XP ( 9.5 kg | 586476000 )
Trägerschalungsadapter XP
|
Galvanised Height: 83.5 cm |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Handrail clamp T ( 12.3 kg | 584381000 )
Schutzgeländerzwinge T
|
Galvanised Height: 122 - 155 cm |
|
Handrail post 1.10m ( 5.5 kg | 584384000 )
Schutzgeländer 1,10m
|
Galvanised Height: 134 cm |
|
Side handrail clamping unit T ( 29.1 kg | 580488000 )
Seitenschutzgeländer T
|
Galvanised Length: 115 - 175 cm Height: 112 cm |
|
Handrail post T 1.80m ( 17.7 kg | 584373000 )
Einschubgeländer T 1,80m
|
Galvanised |
|
Toeboard holder T 1.80m ( 0.53 kg | 584392000 )
Fußwehrhalter T 1,80m
|
Galvanised Height: 13.5 cm |
|
Doka 4-part chain 3.20m ( 15.0 kg | 588620000 )
Doka-Vierstrangkette 3,20m
|
Follow the directions in the "Operating Instructions"! |
|
Universal strut T5/5 .....mm ( 6.5 kg | 584311000 )
Strebe T5/5 .....mm
|
Painted blue Weight per linear metre |
|
Spindle strut GS T5 65/101cm ( 9.1 kg | 584356000 )
Spindelstrebe GS T5 65/101cm
|
Galvanised |
|
Spindle strut T6 73/110cm ( 10.2 kg | 584355000 )
Spindle strut T6 100/150cm ( 12.5 kg | 584323000 )
Spindelstrebe T6
|
Galvanised |
|
Spindle strut GS T6 95/140cm ( 10.3 kg | 584340000 )
Spindelstrebe GS T6 95/140cm
|
Galvanised |
|
Spindle strut T7 75/110cm ( 13.2 kg | 584308000 )
Spindle strut T7 100/150cm ( 16.8 kg | 584309000 )
Spindle strut T7 150/200cm ( 21.6 kg | 584324000 )
Spindle strut T7 200/250cm ( 26.2 kg | 584325000 )
Spindle strut T7 250/300cm ( 29.4 kg | 584326000 )
Spindle strut T7 305/355cm ( 35.0 kg | 584327000 )
Spindelstrebe T7
|
Galvanised |
|
Spindle strut T10 350/400cm ( 57.5 kg | 584328000 )
Spindle strut T10 .....mm ( 16.9 kg | 584391000 )
Spindelstrebe T10
|
|
|
Height adjuster for formwork beams ( 11.9 kg | 580218000 )
Höhenjustierung für Schalungsträger
|
Galvanised Height: 46 cm |
|
Height adjuster WS10-WU16 ( 10.1 kg | 580206500 )
Höhenjustierung WS10-WU16
|
Galvanised Height: 45 cm |
|
Adjusting spindle M36 ( 6.2 kg | 500663002 )
Höhenjustierspindel M36
|
Galvanised Length: 31 cm Height: 29.2 cm Width-across: 24 mm |
|
Adjusting plate T ( 6.5 kg | 584393000 )
Justierlasche T
|
Painted blue Length: 23.5 cm |
|

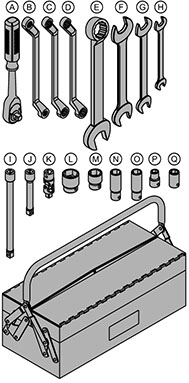

Tool box GF ( 7.2 kg | 580390000 )
GF-Werkzeugbox
included in scope of supply:
(A)Reversible ratchet 1/2" ( 0.73 kg | 580580000 )
Galvanised
(B)Ring spanner 13/15 ( 0.25 kg | 580599000 )
(C)Ring spanner 16/18 ( 0.23 kg | 580644000 )
(D)Ring spanner 17/19 ( 0.27 kg | 580590000 )
(E)Combination wrench 36 ( 0.75 kg | 582860000 )
(F)Fork wrench 30/32 ( 0.80 kg | 580897000 )
(G)Fork wrench 22/24 ( 0.22 kg | 580587000 )
(H)Fork wrench 13/17 ( 0.08 kg | 580577000 )
(I)Extension 22cm 1/2" ( 0.31 kg | 580582000 )
(J)Extension 11cm 1/2" ( 0.20 kg | 580581000 )
(K)Universal joint coupling 1/2" ( 0.16 kg | 580583000 )
(L)Box nut 30 1/2" ( 0.20 kg | 580575000 )
(M)Box nut 24 1/2" ( 0.12 kg | 580584000 )
(N)Box nut 19 1/2" L ( 0.16 kg | 580598000 )
(O)Box nut 18 1/2" L ( 0.15 kg | 580642000 )
(P)Box nut 15 1/2" ( 0.09 kg | 580676000 )
(Q)Box nut 13 1/2" ( 0.06 kg | 580576000 )
|
|
|
Reversible ratchet 3/4" ( 1.5 kg | 580894000 )
Umschaltknarre 3/4"
|
Galvanised |
|
Box nut 50 3/4" ( 0.81 kg | 581449000 )
Stecknuss 50 3/4"
|
|
|
Filler neck GF SCC ( 39.0 kg | 580217000 )
GF-Füllstutzen SCC
|
Galvanised Length: 66 cm |
|
Panel closure tool D125 SCC ( 18.0 kg | 588127000 )
Sperrschieber D125 SCC
|
Galvanised Length: 18 cm Width: 33 cm Height: 27 cm |
|
Top100 tec assembly angle ( 6.6 kg | 586929000 )
Top100 tec-Montagelasche
|
Galvanised Length: 53.2 cm Width: 48.2 cm |
|
Strip tensioner B 6.00m ( 3.3 kg | 580394500 )
Bandzwinge B 6,00m
|
Galvanised |
|
Strip tensioner B 5.00m ( 3.5 kg | 580394000 )
Bandzwinge B 5,00m
|
Galvanised |
|
Positioning rail .....m ( 1.8 kg | 580079000 )
Führungsschiene .....m
|
Painted blue Weight per linear metre |
|
Top100 tec hole gauge ( 2.7 kg | 586930000 )
Top100 tec-Bohrplatte
|
Painted blue Length: 17 cm Width: 15 cm |
|
Angle connector 9x5cm ( 0.22 kg | 580381000 )
Winkelverbinder 9x5cm
|
Galvanised |
|
Rafter plate right ( 0.09 kg | 582521000 )
Rafter plate left ( 0.09 kg | 582522000 )
Sparrenpfettenanker
|
Galvanised Length: 17 cm |
|
Doka beam I tec 20 1.80m ( 10.1 kg | 188001000 )
Doka beam I tec 20 2.45m ( 13.7 kg | 188002000 )
Doka beam I tec 20 2.65m ( 14.8 kg | 188003000 )
Doka beam I tec 20 2.90m ( 16.2 kg | 188004000 )
Doka beam I tec 20 3.30m ( 18.5 kg | 188005000 )
Doka beam I tec 20 3.60m ( 20.2 kg | 188006000 )
Doka beam I tec 20 3.90m ( 21.8 kg | 188007000 )
Doka beam I tec 20 4.50m ( 25.2 kg | 188008000 )
Doka beam I tec 20 4.90m ( 27.4 kg | 188009000 )
Doka beam I tec 20 5.35m ( 30.0 kg | 188013000 )
Doka beam I tec 20 5.90m ( 33.0 kg | 188010000 )
Doka beam I tec 20 .....m ( 5.6 kg | 188011000 )
Doka-Träger I tec 20
|
Varnished yellow Grey |
|
Doka beam I tec 20 12.00m ( 67.2 kg | 188012000 )
Doka-Träger I tec 20 12,00m
|
Varnished yellow Grey |
|
I tec 20 beam-end sealant 2.5l ( 2.5 kg | 188014000 )
I tec 20-Endenversiegelung 2,5l
|
Yellow |
|
Doka formwork sheet 3-SO 21mm 100/50cm ( 4.9 kg | 186007000 )
Doka formwork sheet 3-SO 21mm 150/50cm ( 7.3 kg | 186008000 )
Doka formwork sheet 3-SO 21mm 200/50cm ( 9.7 kg | 186009000 )
Doka formwork sheet 3-SO 21mm 250/50cm ( 12.1 kg | 186011000 )
Doka formwork sheet 3-SO 21mm 300/50cm ( 14.6 kg | 186012000 )
Doka formwork sheet 3-SO 21mm 350/50cm ( 17.0 kg | 186028000 )
Doka formwork sheet 3-SO 21mm 400/50cm ( 19.4 kg | 186013000 )
Doka formwork sheet 3-SO 21mm 450/50cm ( 21.8 kg | 186029000 )
Doka formwork sheet 3-SO 21mm 500/50cm ( 24.3 kg | 186014000 )
Doka formwork sheet 3-SO 21mm 550/50cm ( 26.7 kg | 186023000 )
Doka formwork sheet 3-SO 21mm 600/50cm ( 29.1 kg | 186027000 )
Doka formwork sheet 3-SO 21mm 100/100cm ( 9.7 kg | 186015000 )
Doka formwork sheet 3-SO 21mm 150/100cm ( 14.6 kg | 186016000 )
Doka formwork sheet 3-SO 21mm 200/100cm ( 19.4 kg | 186017000 )
Doka formwork sheet 3-SO 21mm 250/100cm ( 24.3 kg | 186018000 )
Doka formwork sheet 3-SO 21mm 300/100cm ( 29.1 kg | 186019000 )
Doka formwork sheet 3-SO 21mm 350/100cm ( 34.0 kg | 186030000 )
Doka formwork sheet 3-SO 21mm 400/100cm ( 38.8 kg | 186020000 )
Doka formwork sheet 3-SO 21mm 450/100cm ( 43.7 kg | 186031000 )
Doka formwork sheet 3-SO 21mm 500/100cm ( 48.5 kg | 186021000 )
Doka formwork sheet 3-SO 21mm 550/100cm ( 53.4 kg | 186022000 )
Doka formwork sheet 3-SO 21mm 600/100cm ( 58.2 kg | 186024000 )
Doka formwork sheet 3-SO 21mm 250/125cm ( 30.3 kg | 186097000 )
Doka formwork sheet 3-SO 21mm 300/150cm ( 43.7 kg | 186098000 )
Doka formwork sheet 3-SO 21mm 600/150cm ( 87.3 kg | 186099000 )
Doka formwork sheet 3-SO 21mm 150/50cm BS ( 7.3 kg | 186008100 )
Doka formwork sheet 3-SO 21mm 200/50cm BS ( 9.7 kg | 186009100 )
Doka formwork sheet 3-SO 21mm 250/50cm BS ( 12.1 kg | 186011100 )
Doka formwork sheet 3-SO 21mm 300/50cm BS ( 14.6 kg | 186012100 )
Doka formwork sheet 3-SO 21mm
|
|
|
|
Doka formwork sheet 3-SO 27mm 100/50cm ( 6.1 kg | 187007000 )
Doka formwork sheet 3-SO 27mm 150/50cm ( 9.1 kg | 187008000 )
Doka formwork sheet 3-SO 27mm 200/50cm ( 12.1 kg | 187009000 )
Doka formwork sheet 3-SO 27mm 250/50cm ( 15.1 kg | 187011000 )
Doka formwork sheet 3-SO 27mm 300/50cm ( 18.2 kg | 187012000 )
Doka formwork sheet 3-SO 27mm 350/50cm ( 21.2 kg | 187028000 )
Doka formwork sheet 3-SO 27mm 400/50cm ( 24.2 kg | 187013000 )
Doka formwork sheet 3-SO 27mm 450/50cm ( 27.2 kg | 187029000 )
Doka formwork sheet 3-SO 27mm 500/50cm ( 30.3 kg | 187014000 )
Doka formwork sheet 3-SO 27mm 550/50cm ( 33.3 kg | 187023000 )
Doka formwork sheet 3-SO 27mm 600/50cm ( 36.3 kg | 187027000 )
Doka formwork sheet 3-SO 27mm 100/100cm ( 12.1 kg | 187015000 )
Doka formwork sheet 3-SO 27mm 150/100cm ( 18.2 kg | 187016000 )
Doka formwork sheet 3-SO 27mm 200/100cm ( 24.2 kg | 187017000 )
Doka formwork sheet 3-SO 27mm 250/100cm ( 30.3 kg | 187018000 )
Doka formwork sheet 3-SO 27mm 300/100cm ( 36.3 kg | 187019000 )
Doka formwork sheet 3-SO 27mm 350/100cm ( 42.4 kg | 187030000 )
Doka formwork sheet 3-SO 27mm 400/100cm ( 48.4 kg | 187020000 )
Doka formwork sheet 3-SO 27mm 450/100cm ( 54.5 kg | 187031000 )
Doka formwork sheet 3-SO 27mm 500/100cm ( 60.5 kg | 187021000 )
Doka formwork sheet 3-SO 27mm 550/100cm ( 66.6 kg | 187022000 )
Doka formwork sheet 3-SO 27mm 600/100cm ( 72.6 kg | 187024000 )
Doka formwork sheet 3-SO 27mm 250/125cm ( 37.8 kg | 187106000 )
Doka formwork sheet 3-SO 27mm 300/150cm ( 54.5 kg | 187107000 )
Doka formwork sheet 3-SO 27mm 600/150cm ( 108.9 kg | 187108000 )
Doka formwork sheet 3-SO 27mm 150/50cm BS ( 9.1 kg | 187008100 )
Doka formwork sheet 3-SO 27mm 200/50cm BS ( 12.1 kg | 187009100 )
Doka formwork sheet 3-SO 27mm 250/50cm BS ( 15.1 kg | 187011100 )
Doka formwork sheet 3-SO 27mm 300/50cm BS ( 18.2 kg | 187012100 )
Doka-Schalungsplatte 3-SO 27mm
|
|
|
|
Dokaplex formwork sheet 9mm 250/150cm ( 24.4 kg | 185001000 )
Dokaplex formwork sheet 9mm 300/150cm ( 29.3 kg | 185006000 )
Dokaplex-Schalungsplatte 9mm
|
|
|
|
Dokaplex formwork sheet 18mm 250/150cm ( 47.3 kg | 185011000 )
Dokaplex formwork sheet 18mm 300/150cm ( 56.7 kg | 185012000 )
Dokaplex-Schalungsplatte 18mm
|
|
|
|
Dokaplex formwork sheet 21mm 250/125cm ( 45.9 kg | 185007000 )
Dokaplex formwork sheet 21mm 250/150cm ( 55.1 kg | 185002000 )
Dokaplex formwork sheet 21mm 300/150cm ( 66.2 kg | 185003000 )
Dokaplex-Schalungsplatte 21mm
|
|
|
|
DokaPly Birch DC 18mm 62.5/250cm ( 20.2 kg | 185052000 )
DokaPly Birch DC 18mm 122/244cm ( 36.3 kg | 185085000 )
DokaPly Birch DC 18mm 125/250cm ( 38.5 kg | 185055000 )
DokaPly Birch DC 18mm 150/300cm ( 58.1 kg | 185068000 )
DokaPly Birch DC 18mm ...../.....cm ( 12.2 kg | 185086000 )
DokaPly Birch DC 18mm
|
|
|
|
DokaPly Birch SC 18mm 122/244cm ( 36.3 kg | 185078000 )
DokaPly Birch SC 18mm 125/250cm ( 38.3 kg | 185131000 )
DokaPly Birch SC 18mm 150/300cm ( 54.9 kg | 185079000 )
DokaPly Birch SC 18mm ...../.....cm ( 12.2 kg | 185080000 )
DokaPly Birch SC 18mm
|
|
|
|
DokaPly Birch DC 21mm 62.5/250cm ( 23.0 kg | 185051000 )
DokaPly Birch DC 21mm 122/244cm ( 42.6 kg | 185087000 )
DokaPly Birch DC 21mm 125/250cm ( 45.9 kg | 185024000 )
DokaPly Birch DC 21mm 150/300cm ( 66.2 kg | 185075000 )
DokaPly Birch DC 21mm ...../.....cm ( 14.3 kg | 185088000 )
DokaPly Birch DC 21mm
|
|
|
|
DokaPly Birch SC 21mm 122/244cm ( 42.6 kg | 185081000 )
DokaPly Birch SC 21mm 125/250cm ( 44.7 kg | 185082000 )
DokaPly Birch SC 21mm 150/300cm ( 64.4 kg | 185083000 )
DokaPly Birch SC 21mm ...../.....cm ( 14.3 kg | 185084000 )
DokaPly Birch SC 21mm
|
|
|
|
Xface sheet 21mm 202/302cm ( 91.5 kg | 185050000 )
Xface sheet 21mm 202/402cm ( 121.8 kg | 185076000 )
Xface sheet 21mm 202/502cm ( 152.1 kg | 185077000 )
Xface-Platte 21mm
|
|
|
|
Xlife sheet 21mm 265/145cm ( 63.4 kg | 185071000 )
Xlife sheet 21mm 325/145cm ( 77.8 kg | 185070000 )
Xlife-Platte 21mm
|
|
|
|
Xlife edge varnish 2.5l ( 3.2 kg | 185072000 )
Xlife-Kantenlack 2,5l
|
|
|
Xlife priming varnish SW-910 2.5l ( 2.7 kg | 185073000 )
Xlife-Grundierlack SW-910 2,5l
|
|
|
H20 screw-on bracket for formwork sheets ( 0.19 kg | 586256000 )
Schalhaut-Schraubwinkel H20
|
Galvanised Height: 19.2 cm |
|
Double scraper Xlife 100/150mm 1.40m ( 2.8 kg | 588674000 )
Doppelschaber Xlife 100/150mm 1,40m
|
|
|
Ladder system XS
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Securing barrier XS ( 4.9 kg | 588669000 )
Sicherungsschranke XS
|
Galvanised Length: 80 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Ladder cage exit XS ( 17.0 kg | 588666000 )
Rückenschutz-Ausstieg XS
|
Galvanised Height: 132 cm |
|
Tie rod system 20.0
Tie rod 20.0mm galvanised 0.50m ( 1.3 kg | 581411000 )
Tie rod 20.0mm galvanised 0.75m ( 1.9 kg | 581417000 )
Tie rod 20.0mm galvanised 1.00m ( 2.5 kg | 581412000 )
Tie rod 20.0mm galvanised 1.25m ( 3.2 kg | 581418000 )
Tie rod 20.0mm galvanised 1.50m ( 3.8 kg | 581413000 )
Tie rod 20.0mm galvanised 2.00m ( 5.0 kg | 581414000 )
Tie rod 20.0mm galvanised 2.50m ( 6.3 kg | 581430000 )
Tie rod 20.0mm galvanised .....m ( 2.5 kg | 581410000 )
Tie rod 20.0mm non-treated 0.50m ( 1.3 kg | 581405000 )
Tie rod 20.0mm non-treated 0.75m ( 1.9 kg | 581416000 )
Tie rod 20.0mm non-treated 1.00m ( 2.5 kg | 581406000 )
Tie rod 20.0mm non-treated 1.50m ( 3.8 kg | 581407000 )
Tie rod 20.0mm non-treated 2.00m ( 5.0 kg | 581408000 )
Tie rod 20.0mm non-treated .....m ( 2.5 kg | 581403000 )
Ankerstab 20,0mm
|
|
|
Super plate 20.0 B ( 2.0 kg | 581424000 )
Superplatte 20,0 B
|
Galvanised Height: 7 cm Diameter: 14 cm Width-across: 34 mm |
|
Hexagon nut 20.0 ( 0.40 kg | 581420000 )
Sechskantmutter 20,0
|
Galvanised Length: 7 cm Width-across: 41 mm |
|
Anchor plate 20.0 ( 1.7 kg | 581425000 )
Ankerplatte 20,0
|
Galvanised |
|
Top100 tec form-tie nut 20.0 ( 4.8 kg | 586934000 )
Top100 tec-Ankermutter 20,0
|
Galvanised Height: 25 cm |
|
Plastic tube 26mm 2.00m ( 0.59 kg | 581463000 )
Kunststoffrohr 26mm 2,00m
|
PVC Grey Diameter: 3.1 cm |
|
Universal cone 26mm ( 0.008 kg | 581464000 )
Universal-Konus 26mm
|
Grey Diameter: 5 cm |
|
Plug 26mm ( 0.006 kg | 581465000 )
Verschlussstopfen 26mm
|
PE Grey |
|
Tie hole protector 20.0 ( 0.11 kg | 586931000 )
Ankerlochschutz 20,0
|
Galvanised Length: 7.5 cm Width: 4.3 cm |
|
Wing nut 20.0 ( 0.47 kg | 581466000 )
Flügelmutter 20,0
|
Galvanised Length: 11 cm Height: 6 cm Width-across: 36 mm |
|
Water stop connector 20.0 ( 1.3 kg | 581467000 )
Wasserstopp 20,0
|
Non-treated Length: 14 cm |
|
Rock anchor spreader unit 20.0 ( 1.3 kg | 581468000 )
Felsanker-Spreizeinheit 20,0
|
Galvanised Length: 11.9 cm Diameter: 5.7 cm Follow the directions in the "Fitting instructions"! |
|
Fibre concrete tube 27mm 1.25m ( 2.6 kg | 581472000 )
Faserbetonrohr 27mm 1,25m
|
|
|
Fibre concrete plug 27mm ( 0.03 kg | 581473000 )
Faserbetonstopfen 27mm
|
Grey |
|
Weldable coupler 20.0 ( 0.55 kg | 581474000 )
Anschweißmuffe 20,0
|
Non-treated Length: 8 cm Diameter: 4 cm Follow the directions in the "Fitting instructions"! |
|
Protective cap 15.0/20.0 ( 0.03 kg | 581858000 )
Schutzkappe 15,0/20,0
|
Yellow Length: 6 cm Diameter: 6.7 cm |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
Platform system Xsafe plus
Xsafe plus platform 2.50m with side railing ( 182.2 kg | 586402000 )
Xsafe plus-Bühne 2,50m mit Seitengeländer
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus platform 2.50m ( 144.5 kg | 586405000 )
Xsafe plus-Bühne 2,50m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus platform 2.00m ( 122.5 kg | 586407000 )
Xsafe plus-Bühne 2,00m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus platform 1.00m ( 78.5 kg | 586409000 )
Xsafe plus-Bühne 1,00m
|
Steel parts galvanised Timber parts varnished yellow Height: 136 cm Delivery condition: folded closed |
|
Xsafe plus side railing ( 20.5 kg | 586410000 )
Xsafe plus-Seitengeländer
|
Galvanised Width: 88 cm Height: 110 cm |
|
Xsafe plus railing-closure post ( 3.4 kg | 586411000 )
Xsafe plus-Geländerausgleich
|
Galvanised Height: 111 cm |
|
Xsafe plus platform extension 0.60m ( 43.4 kg | 586418000 )
Xsafe plus-Bühnenverlängerung 0,60m
|
Galvanised Height: 120 cm Delivery condition: railing included |
|
Xsafe plus platform transition ( 26.5 kg | 586419000 )
Xsafe plus-Bühnenübergang
|
Galvanised Length: 85 cm Width: 48 cm |
|
Xsafe plus handrail extension ( 4.3 kg | 586420000 )
Xsafe plus-Geländerverlängerung
|
Galvanised Length: 81 cm Width: 53 cm |
|
Xsafe plus counter railing 2.50m ( 22.5 kg | 586426000 )
Xsafe plus counter railing 2.00m ( 20.3 kg | 586428000 )
Xsafe plus counter railing 1.00m ( 15.5 kg | 586430000 )
Xsafe plus-Gegengeländer
|
Galvanised Height: 200 cm Delivery condition: folded closed |
|
Xsafe plus supporting strut EB ( 8.0 kg | 586412500 )
Xsafe plus-Stützenstrebe EB
|
Galvanised Length: 91 - 99 cm |
|
Xsafe plus waling connector ( 6.1 kg | 586433000 )
Xsafe plus-Riegelverbinder
|
Galvanised Height: 33 cm |
|
Xsafe plus telescopic ladder ( 15.0 kg | 586421000 )
Xsafe plus-Teleskopleiter
|
Galvanised Height: 158 - 274 cm |
|
Xsafe plus ladder extension 1.15m ( 7.0 kg | 586422000 )
Xsafe plus-Leiternverlängerung 1,15m
|
Galvanised Height: 126 cm |
|
Xsafe plus ladder support ( 2.1 kg | 586423000 )
Xsafe plus-Leiternstütze
|
Galvanised Height: 55 cm |
|
Xsafe plus ladder starter piece ( 6.8 kg | 586424000 )
Xsafe plus-Leiternhalter
|
Galvanised Length: 95 cm |
|
