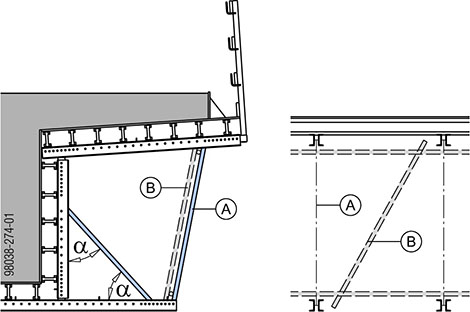

Min. angle α between strut and waling = 30°
|
A Strut |
|
B Bracing |

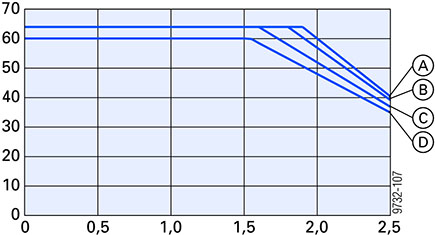

Universal strut T5/5 .....mm
|
Permitted load [kN] |
|
|
|
Length of strut [m] |
|
A With no bracing on the strut |
|
B With bracing on the strut |
|
C With bracing on the strut + 2% longitudinal bridge slope |
|
D With bracing on the strut + 4% longitudinal bridge slope |
.
