Component overview
[kg]
Article n°
Staxo 40 frame 0.90m ( 14.6 kg | 582202000 )
Staxo 40 frame 1.20m ( 17.5 kg | 582201000 )
Staxo 40 frame 1.80m ( 24.5 kg | 582200000 )
Staxo 40-Rahmen
|
Galvanised |
|
Staxo 40 coupler ( 0.60 kg | 582203000 )
Staxo 40-Kupplungsstück
|
Galvanised Height: 30.8 cm |
|
Staxo 40 tube connector D48.3mm ( 0.07 kg | 582204000 )
Staxo 40-Rohrstecker D48,3mm
|
Yellow |
|
Diagonal cross 9.100 ( 4.1 kg | 582772000 )
Diagonal cross 9.150 ( 5.2 kg | 582773000 )
Diagonal cross 9.175 ( 6.1 kg | 582334000 )
Diagonal cross 9.200 ( 6.6 kg | 582774000 )
Diagonal cross 9.250 ( 7.7 kg | 582775000 )
Diagonal cross 9.300 ( 9.0 kg | 582323000 )
Diagonal cross 12.100 ( 4.6 kg | 582610000 )
Diagonal cross 12.150 ( 5.7 kg | 582612000 )
Diagonal cross 12.175 ( 6.3 kg | 582335000 )
Diagonal cross 12.200 ( 6.9 kg | 582614000 )
Diagonal cross 12.250 ( 8.3 kg | 582616000 )
Diagonal cross 12.300 ( 9.3 kg | 582325000 )
Diagonal cross 18.100 ( 6.1 kg | 582620000 )
Diagonal cross 18.150 ( 6.9 kg | 582622000 )
Diagonal cross 18.175 ( 7.8 kg | 582336000 )
Diagonal cross 18.200 ( 7.8 kg | 582624000 )
Diagonal cross 18.250 ( 9.1 kg | 582626000 )
Diagonal cross 18.300 ( 10.3 kg | 582326000 )
Diagonalkreuz
|
Galvanised Delivery condition: folded closed |
|
Diagonal brace d2 9.100 ( 2.0 kg | 582740000 )
Diagonal brace d2 9.125 ( 2.2 kg | 582741000 )
Diagonal brace d2 9.152 ( 2.6 kg | 582742000 )
Diagonal brace d2 9.175 ( 3.0 kg | 582743000 )
Diagonal brace d2 9.200 ( 3.3 kg | 582744000 )
Diagonal brace d2 9.225 ( 5.9 kg | 582745000 )
Diagonal brace d2 9.250 ( 6.8 kg | 582746000 )
Diagonal brace d2 12.100 ( 2.2 kg | 582712000 )
Diagonal brace d2 12.125 ( 2.5 kg | 582713000 )
Diagonal brace d2 12.152 ( 2.9 kg | 582714000 )
Diagonal brace d2 12.175 ( 3.1 kg | 582715000 )
Diagonal brace d2 12.200 ( 3.5 kg | 582716000 )
Diagonal brace d2 12.225 ( 6.0 kg | 582717000 )
Diagonal brace d2 12.250 ( 6.7 kg | 582718000 )
Diagonal brace d2 18.100 ( 3.0 kg | 582720000 )
Diagonal brace d2 18.125 ( 3.3 kg | 582721000 )
Diagonal brace d2 18.152 ( 5.8 kg | 582722000 )
Diagonal brace d2 18.175 ( 6.1 kg | 582723000 )
Diagonal brace d2 18.200 ( 6.4 kg | 582724000 )
Diagonal brace d2 18.225 ( 6.9 kg | 582725000 )
Diagonal brace d2 18.250 ( 7.4 kg | 582726000 )
Diagonalstrebe d2
|
Galvanised |
|
Horizontal brace d2 100 ( 1.6 kg | 582730000 )
Horizontal brace d2 125 ( 1.9 kg | 582731000 )
Horizontal brace d2 152 ( 2.3 kg | 582732000 )
Horizontal brace d2 175 ( 2.7 kg | 582733000 )
Horizontal brace d2 200 ( 3.0 kg | 582734000 )
Horizontal brace d2 225 ( 3.4 kg | 582735000 )
Horizontal brace d2 250 ( 3.8 kg | 582736000 )
Horizontalstrebe d2
|
Galvanised |
|
Staxo 40 4-way screw-jack head 30cm ( 6.5 kg | 582209000 )
Staxo 40-Vierwegkopfspindel 30cm
|
Galvanised Height: 67.8 cm |
|
Staxo 40 4-way screw-jack head 70cm ( 8.9 kg | 582210000 )
Staxo 40-Vierwegkopfspindel 70cm
|
Galvanised Height: 117.6 cm |
|
Staxo 40 screw jack U-head 30cm ( 4.7 kg | 582207000 )
Staxo 40-Kopfspindel 30cm
|
Galvanised Height: 55.7 cm |
|
Staxo 40 screw jack U-head 70cm ( 7.0 kg | 582208000 )
Staxo 40-Kopfspindel 70cm
|
Galvanised Height: 105.5 cm |
|
Lowering head H20 ( 6.1 kg | 586174000 )
Absenkkopf H20
|
Galvanised Length: 25 cm Width: 20 cm Height: 38 cm |
|
4-way head H20 ( 4.0 kg | 586170000 )
Vierwegkopf H20
|
Galvanised Length: 25 cm Width: 20 cm Height: 33 cm |
|
Doka Xtra head ( 9.7 kg | 586108000 )
Doka Xtra-Kopf
|
Galvanised Height: 69 cm |
|
Clamping plate D ( 2.0 kg | 502709030 )
Klemmplatte D
|
Galvanised Length: 24 cm Width: 9 cm |
|
Wing nut 15.0 ( 0.31 kg | 581961000 )
Flügelmutter 15,0
|
Galvanised Length: 10 cm Height: 5 cm Width-across: 27 mm |
|
Locking rod 15.0 330mm ( 0.48 kg | 582641000 )
Quetschteil 15,0 330mm
|
Galvanised Width-across: 24 mm |
|
Dokamatic table Staxo spindle connector ( 3.9 kg | 582347000 )
Staxo-Spindelanschluss Dokamatic-Tisch
|
Galvanised Length: 20.7 cm |
|
Wedge for screw jack ..... % ( 0.46 kg | 176071000 )
Spindelkeil ..... %
|
Length: 20 cm Width: 16 cm |
|
Super plate 15.0 ( 1.1 kg | 581966000 )
Superplatte 15,0
|
Galvanised Height: 6 cm Diameter: 12 cm Width-across: 27 mm |
|
Staxo wedge support WS10 ( 8.7 kg | 582796000 )
Staxo-Keilauflager WS10
|
Galvanised Length: 31 cm Width: 15 cm Height: 23 cm |
|
Staxo wedge support WU12/14 ( 12.2 kg | 582350000 )
Staxo-Keilauflager WU12/14
|
Galvanised Length: 35.6 cm Width: 15 cm Height: 33.6 cm |
|
Swivel bearing plate for screw jack U-head ( 5.2 kg | 582799000 )
Gelenkaufsatz Kopfspindel
|
Galvanised Length: 20.8 cm Width: 15.0 cm Height: 14.4 cm |
|
Staxo 40 screw jack foot 30cm ( 3.9 kg | 582205000 )
Staxo 40-Fußspindel 30cm
|
Galvanised Height: 50.7 cm |
|
Staxo 40 screw jack foot 70cm ( 6.1 kg | 582206000 )
Staxo 40-Fußspindel 70cm
|
Galvanised Height: 100.5 cm |
|
Staxo 40 anti-dropout lock ( 0.54 kg | 582211000 )
Staxo 40-Spindelsicherung
|
Galvanised Powder-coated blue Length: 9.0 cm Width: 8.8 cm Height: 8.6 cm |
|
Compensating plate ( 1.2 kg | 582239000 )
Ausgleichsplatte
|
Orange Black Diameter: 30 cm |
|
Plumbing strut Eurex 60 550 ( 42.5 kg | 582658000 )
Justierstütze Eurex 60 550
|
Powder-coated blue Aluminium Length: 343 - 553 cm |
|
Extension Eurex 60 2.00m ( 21.3 kg | 582651000 )
Verlängerung Eurex 60 2,00m
|
Powder-coated blue Aluminium Length: 250 cm |
|
Coupler Eurex 60 ( 8.6 kg | 582652000 )
Kupplungsstück Eurex 60
|
Aluminium Length: 100 cm Diameter: 12.8 cm |
|
Prop head Eurex 60 Top50 ( 7.1 kg | 582665000 )
Stützenkopf Eurex 60 Top50
|
Galvanised Height: 50 cm |
|
Connector Eurex 60 IB ( 4.2 kg | 582657500 )
Verbindungsstück Eurex 60 IB
|
Galvanised Length: 15 cm Width: 15 cm Height: 30 cm |
|
Plumbing strut shoe Eurex 60 EB ( 8.0 kg | 582660500 )
Justierstützenfuß Eurex 60 EB
|
Galvanised Length: 31 cm Width: 12 cm Height: 33 cm |
|

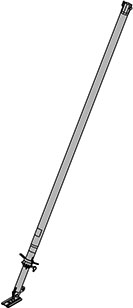

Plumbing strut 340 IB ( 16.7 kg | 588696000 )
Justierstütze 340 IB
|
Galvanised Length: 190.8 - 341.8 cm |
|
Plumbing strut 340 IB EF ( 14.9 kg | 588247500 )
Justierstütze 340 IB EF
|
Galvanised Length: 190.8 - 341.8 cm |
|
Plumbing strut 540 IB ( 30.7 kg | 588697000 )
Justierstütze 540 IB
|
Galvanised Length: 310.5 - 549.2 cm |
|
Plumbing strut 540 IB EF ( 28.9 kg | 588250500 )
Justierstütze 540 IB EF
|
Galvanised Length: 310.5 - 549.2 cm |
|
Strut shoe EB ( 0.93 kg | 588946000 )
Strebenschuh EB
|
Galvanised Width: 8 cm Height: 13 cm |
|
Prop shoe EB ( 1.8 kg | 588245500 )
Stützenschuh EB
|
Galvanised Length: 20 cm Width: 11 cm Height: 10 cm |
|
Staxo 40 plumbing strut adapter ( 1.6 kg | 582214000 )
Staxo 40-Justierstützenadapter
|
Galvanised Height: 16 cm |
|
Universal dismantling tool ( 3.7 kg | 582768000 )
Universal-Lösewerkzeug
|
Galvanised Length: 75.5 cm |
|
Doka express anchor 16x125mm ( 0.31 kg | 588631000 )
Doka-Expressanker 16x125mm
|
Galvanised Length: 18 cm Follow the directions in the "Fitting instructions"! |
|
Doka coil 16mm ( 0.009 kg | 588633000 )
Doka-Coil 16mm
|
Galvanised Diameter: 1.6 cm |
|
Scaffold planking 30/100cm ( 7.4 kg | 582231000 )
Scaffold planking 30/150cm ( 10.6 kg | 582232000 )
Scaffold planking 30/200cm ( 13.5 kg | 582234000 )
Scaffold planking 30/250cm ( 16.4 kg | 582235000 )
Scaffold planking 30/300cm ( 19.5 kg | 582236000 )
Gerüstbelag
|
Galvanised |
|
Scaffold planking 60/100cm with manhole ( 9.5 kg | 582311500 )
Scaffold planking 60/150cm with manhole ( 13.8 kg | 582312500 )
Scaffold planking 60/175cm with manhole ( 15.5 kg | 582333500 )
Scaffold planking 60/200cm with manhole ( 17.7 kg | 582313500 )
Scaffold planking 60/250cm with manhole ( 20.8 kg | 582314500 )
Scaffold planking 60/300cm with manhole ( 26.3 kg | 582315500 )
Gerüstbelag mit Durchstieg
|
Aluminium |
|
Scaffold planking 60/100cm ( 9.5 kg | 582306500 )
Scaffold planking 60/150cm ( 13.6 kg | 582307500 )
Scaffold planking 60/175cm ( 15.5 kg | 582332500 )
Scaffold planking 60/200cm ( 17.8 kg | 582308500 )
Scaffold planking 60/250cm ( 22.2 kg | 582309500 )
Scaffold planking 60/300cm ( 26.2 kg | 582310500 )
Gerüstbelag
|
Aluminium |
|
Staxo 40 bracket 90cm ( 8.6 kg | 582212000 )
Staxo 40-Konsole 90cm
|
Galvanised Width: 108.9 cm Height: 65.5 cm |
|
Staxo 40 planking strut 1.00m ( 5.7 kg | 582215000 )
Staxo 40 planking strut 1.50m ( 7.3 kg | 582216000 )
Staxo 40 planking strut 2.00m ( 9.3 kg | 582217000 )
Staxo 40-Belagstrebe
|
Galvanised |
|
Staxo 40 frame strut 1.40m ( 6.5 kg | 582213000 )
Staxo 40-Rahmenstrebe 1,40m
|
Galvanised |
|
Staxo front railing ( 10.5 kg | 582316000 )
Staxo-Stirngeländer
|
Galvanised Length: 140 cm Height: 152 cm |
|
Staxo side railing 100 ( 17.5 kg | 582317500 )
Staxo side railing 150 ( 20.0 kg | 582318500 )
Staxo side railing 175 ( 23.2 kg | 582331500 )
Staxo side railing 200 ( 24.1 kg | 582319500 )
Staxo side railing 250 ( 27.5 kg | 582320500 )
Staxo side railing 300 ( 31.1 kg | 582321500 )
Staxo-Seitengeländer
|
Galvanised Height: 152 cm |
|
Spring locked connecting pin 16mm ( 0.25 kg | 582528000 )
Federbolzen 16mm
|
Galvanised Length: 15 cm |
|
Staxo 40/d3 ladder 2.30m ( 15.5 kg | 582219500 )
Staxo 40/d3-Leiter 2,30m
|
Galvanised |
|
Staxo 40 ladder 2.30m ( 14.8 kg | 582219000 )
Staxo 40-Leiter 2,30m
|
Galvanised |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Swivel coupler 48mm ( 1.5 kg | 582560000 )
Drehkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Normal coupler 48mm ( 1.2 kg | 682004000 )
Normalkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Anschraubkupplung 48mm 50
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Screw-on coupler 48mm 95 ( 0.88 kg | 586013000 )
Anschraubkupplung 48mm 95
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Anchoring shoe for stair tower ( 3.4 kg | 582680000 )
Ankerschuh für Treppenturm
|
Galvanised Length: 22 cm Width: 12 cm Height: 22 cm |
|
Cone screw B 7cm ( 0.86 kg | 581444000 )
Konusschraube B 7cm
|
Red Length: 10 cm Diameter: 7 cm Width-across: 50 mm |
|
Handrail post XP 1.20m ( 4.1 kg | 586460000 )
Geländersteher XP 1,20m
|
Galvanised Height: 118 cm |
|
Scaffold tube holder D48mm ( 0.95 kg | 586464000 )
Gerüstrohrhalter D48mm
|
Galvanised Height: 18 cm |
|
Toeboard holder XP 1.20m ( 0.64 kg | 586461000 )
Fußwehrhalter XP 1,20m
|
Galvanised Height: 21 cm |
|
Beam connecting plate H20 ( 0.07 kg | 586263000 )
Gurtverbinder H20
|
Galvanised Height: 8 cm |
|
Bracing for load-bearing towers ( 11.6 kg | 582795000 )
Abspannung für Traggerüste
|
Galvanised Painted blue |
|
Spindle connecting plate T ( 3.1 kg | 584371000 )
Spindellasche T
|
Galvanised Width: 20 cm Height: 25 cm |
|
Connecting pin 10cm ( 0.34 kg | 580201000 )
Verbindungsbolzen 10cm
|
Galvanised Length: 14 cm |
|
Spring cotter 5mm ( 0.03 kg | 580204000 )
Federvorstecker 5mm
|
Galvanised Length: 13 cm |
|
Bracing waling connector WS10 ( 2.7 kg | 582756000 )
Abspann-Riegelverbinder WS10
|
Galvanised Length: 46.7 cm |
|
Secondary-beam stabiliser 1 ( 1.6 kg | 586196000 )
Secondary-beam stabiliser 2 ( 2.1 kg | 586197000 )
Querträgersicherung
|
Galvanised Height: 38.7 cm |
|
Lifting rod 15.0 ( 1.9 kg | 586074000 )
Umsetzstab 15,0
|
Painted blue Height: 57 cm Follow the directions in the "Operating Instructions"! |
|
Retaining plate 15.0 ( 1.8 kg | 586073000 )
Jochplatte 15,0
|
Galvanised Length: 17 cm Width: 12 cm Height: 11 cm |
|
Universal plug R20/25 ( 0.003 kg | 588180000 )
Kombi-Ankerstopfen R20/25
|
Blue Diameter: 3 cm |
|
Staxo 40 shifting wheel ( 22.8 kg | 582218000 )
Staxo 40-Umsetzrad
|
Galvanised Height: 120 cm Follow the directions in the "Operating Instructions"! |
|
Fork lift shifting device TG ( 83.0 kg | 582797000 )
Umsetzgerät TG für Stapler
|
Galvanised Length: 60 cm Width: 113 cm Height: 52 cm Follow the directions in the "Operating Instructions"! |
|
Staxo 40 lifting strut ( 9.5 kg | 582224000 )
Staxo 40-Umsetzstrebe
|
Galvanised Length: 144 cm |
|
Multi-purpose waling WS10 Top50 2.00m ( 38.9 kg | 580007000 )
Mehrzweckriegel WS10 Top50 2,00m
|
Painted blue |
|
Doka personal fall-arrest set ( 3.6 kg | 583022000 )
Doka-Auffanggurt
|
Follow the directions in the "Operating Instructions"! |
|
Multi-trip packaging
Wooden pallet 1.22x1.60m (HT) ( 24.0 kg | 176139000 )
Wooden pallet 0.80x1.60m (HT) ( 20.0 kg | 176140000 )
Holzpalette (DB, HT)
|
Height: 18 cm |
|
Staxo 40 pallet 1.80m ( 47.0 kg | 582237000 )
Staxo 40-Palette 1,80m
|
Galvanised Length: 169 cm Width: 134 cm Height: 27 cm |
|
Staxo 40 pallet 1.20/0.90m ( 38.5 kg | 582238000 )
Staxo 40-Palette 1,20/0,90m
|
Galvanised Length: 169 cm Width: 91 cm Height: 27 cm |
|
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
