Features of the Staxo 40 frames
Only 24.5 kg, 18.0 kg or 15.0 kg, depending on the type of frame.
.
Ergonomic design
Ergonomically shaped – easy to carry, as it can be held at or near the frame's centre of gravity
.
Framework scaffolding with passageway opening created by inverting the frames
Turning the frames upside-down creates ample headroom for safe working inside the scaffold and beneath the towerframe superstructure.
Staxo 40 frame 1.80m
Staxo 40 frames 1.20m and 0.90m
|

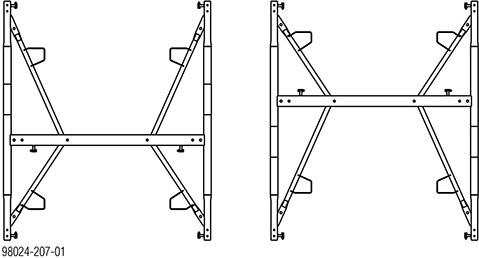

1.80m frames |

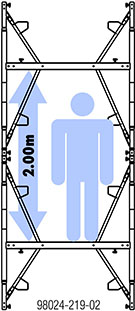

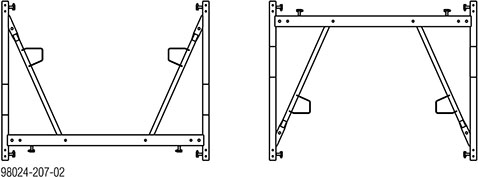

1.80m frames with inverted top frame |

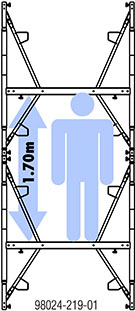

1.20m frames with inverted top frame |
|
|
|
.
Safety catch
▪ tried-and-tested interconnection system (captive)
▪ secures the diagonal crosses
▪ two defined positions (closed – open)
|
Closed |
Open |
|
|---|---|---|
|
|
|
|
|
|
▪ works in both directions, i.e. on inverted frames as well
▪ also secures the diagonal crosses when towers are assembled in the horizontal, and when the frame is positioned so that the safety-catch bolts are at the bottom (rather than the top) of the frame crossbar
.
Anchorage points for personal fall arrest systems (PFAS)
|
|
WARNING ➤ Make sure that the anchorage point is at or above the required minimum height, as otherwise there will not be sufficient room to arrest a fall. |
|

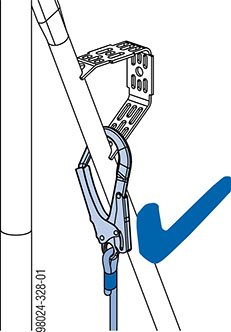

Permitted anywhere on the diagonal tube of the frame. |
|
|
|
|

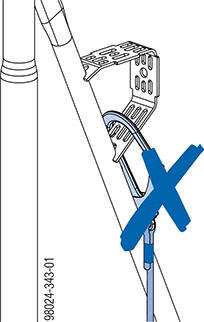

Prohibited on the integrated universal U-bracket. |
|
|
|
|
.
Many possible ways of connecting couplers

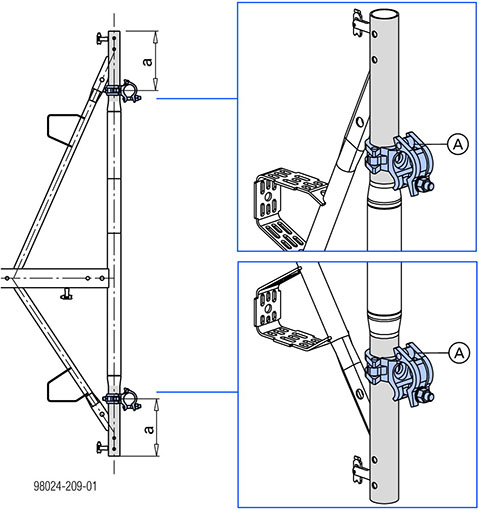

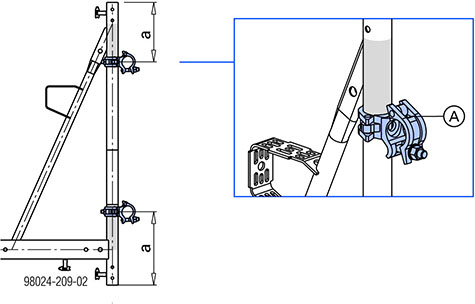

On vertical tubes – Staxo 40 frame 1.80m
a ... max. 25 cm (this stays within the max. distance of 16cm which EN 12812 stipulates from the node point of the centre-lines of the load paths)
|
A Swivel coupler 48mm or Normal coupler 48mm |
Staxo 40 frames 1.20m and 0.90m
a ... max. 25 cm (this stays within the max. distance of 16cm which EN 12812 stipulates from the node point of the centre-lines of the load paths)
|
A Swivel coupler 48mm or Normal coupler 48mm |
.
On the horizontal profile – on all types of frame
a ... 34 cm
b ... 11 cm
|
B Screw-on coupler 48mm 95 |
.
On the screwjack head and base units
On the 70cm long screwjack head and base units, Swivel couplers 48mm or Normal couplers 48mm can be fastened to the threadless section of the tube.
|
Staxo 40 4-way screw-jack head 70cm |
Staxo 40 screw jack U-head 70cm |
Staxo 40 screw-jack foot 70cm |
|---|---|---|
|
|
|
|
A Swivel coupler 48mm or Normal coupler 48mm |
|
B Scaffold tube 48.3mm |
Also, a Screw-on coupler 48mm 95 can be mounted to the holes in the threadless section of tube on all 70cm long screw-jack U-heads and feet.
|
|
NOTICE For information on dimensioning braced screw-jack heads and feet, see the type specification sheet. |
.
Linking the frames

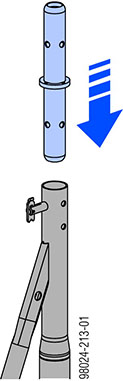

Staxo 40 coupler
The vertically stacked frames are attached to one another by the Staxo 40 coupler with its integrated stop-ring.
Because this coupler extends such a long way (15 cm) into each frame, no extra pin-type safety locks are needed when towerframes are erected and dismantled in the upright.
A crane-handling-safe link, using a Staxo 40 tube connector d48.3mm, is required in the following cases
▪ when the towerframes are assembled in the horizontal
▪ when the towerframes are lifted by crane
▪ if there are forces acting upon the tower which cause tensile stress
|
Permitted tensile force 11.7 kN |
.
Securing the screw-jack heads and feet against pull-out

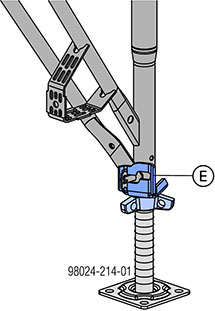

Staxo 40 anti-dropout lock (E)
A crane-handling-safe link, using a Staxo 40 anti-dropout lock, is required in the following cases:
▪ when the towerframes are assembled in the horizontal
▪ when the towerframes are lifted by crane
▪ if there are forces acting upon the tower which cause tensile stress
|
|
|
Permitted tensile force 5 kN |
.
Erecting quadratic towers
|
|

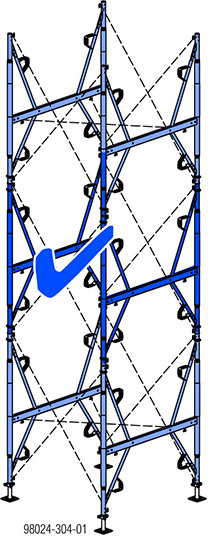

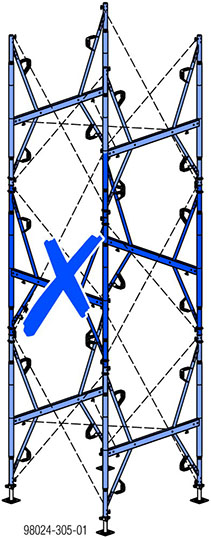

NOTICE On quadratic (150x150 cm towers), do not mix the frame plane and bracing-strut plane within the same tower! |
|
|
.
