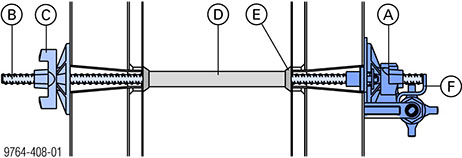

Variant with Tie rod system 15.0 / 20.0
|
A Monotec combination nut 15.0 Framax or |
|
B Tie rod 15.0mm |
|
C Super plate 15.0 |
|
D Plastic tube 22mm |
|
E Universal cone 22mm |
|
F Stopper plate for tie rod |
Both the combination nut and the form-tie nut have an integrated stopper plate for the tie rod.
|
Tie rod 15.0mm: Permitted capacity, allowing a 1.6 : 1 factor of safety against failure: 120 kN Permitted capacity to DIN 18216: 90 kN |
.
