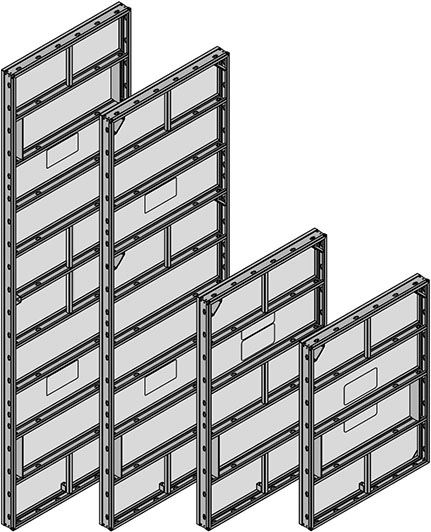

High load-bearing capacity
.
Dimensionally stable steel frame made of hollow profiles
a ... 92 mm
|
A Frame profile |
|
B Continuous hardware slot for inter-panel connectors |
|
C Xlife sheet |
|
D Silicone sealing strip |
▪ Dimensionally stable frame profiles
▪ Hot-dip galvanised for long life
▪ Strong cross-profiles
▪ Edges are easy to clean - so panels always abut tightly
▪ All-round hardware slot for fastening the inter-panel connectors at any point required
▪ Xlife sheet edge-protected by frame profile
▪ Cross boreholes for corner configurations and stop-ends
|
|
WARNING ➤ It is forbidden to climb on the cross-profiles. The cross-profiles are NOT a substitute for a ladder. |
.
Accessories are easy to fasten in the cross profile
|
A Frami Xlife panel |
|
B Frami wedge clamp |
|
C Frami universal waling |
.
Form-tie hole
a ... diam. 20 mm
|
A Form-tie protector |
|
B Xlife sheet |
▪ Xlife sheet protected around the tie-holes by integrated form-tie protectors
.
Clean concrete surfaces with the innovative Xlife sheet
The Xlife sheet consists of a combination of a traditional plywood core and a novel and innovative plastic coating.
This combination of materials ensures high numbers of repeat uses, with superb concrete results every time, and reduces the proneness to damage.
▪ High quality concrete finish
▪ Less touching-up needed
▪ Less cleaning work - the Xlife sheet can also be cleaned using a high-pressure spray cleaner
.
Handles
|
A Integral handle |
|
|
WARNING Do not use these handles as slinging points for crane-handling! Danger of formwork dropping from crane! ➤ Use only suitable load-carrying equipment and slinging points. See "Lifting by crane" and "Transporting, stacking and storing". |
.
