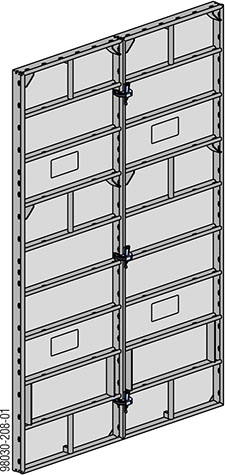

Shown here on Frami Xlife panels 2.70m.
Attributes of the panel connectors:
▪ provide self-aligning, crane-handling-safe connections between the panels
▪ no losable small parts
▪ dirt-resistant and hard-wearing for site use
▪ easy to fix, with a formwork hammer
|
|
NOTICE ▪ Use a formwork hammer weighing max. 800 g. ▪ Do not oil or grease wedge-clamped joints. |
Required number of clamps (longitudinal joins):
|
Panel height |
Number of clamps |
|---|---|
|
1.20 m |
2 |
|
1.50 m |
2 |
|
2.70 m |
3 |
|
3.00 m |
3 |
|
Panel width |
Number of clamps |
|---|---|
|
0.30 m |
1 |
|
0.45 m |
1 |
|
0.60 m |
2 |
|
0.75 m |
2 |
|
0.90 m |
2 |
Note:
▪ For details regarding extra inter-panel connections for outside corners and stop-end formwork (for increased tensile loads) see 'Inter-panel connections for increased tensile loads'.
▪ For details on the position of the connector components needed in vertical stacking, see 'Vertical stacking of panels'.
.
