Positioning point and suspension point
|
|
NOTICE ONLY use Tie rod system 20.0 or Tie rod system 26.5! Due to the high loads imposed on the suspension points by dam formworks, the Tie rod system 15.0 is not suitable! |
|

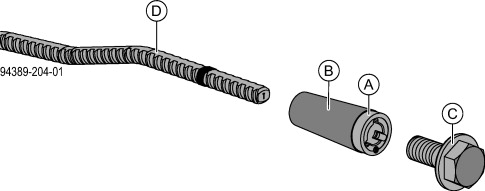

A Universal climbing cone or |
|
B Sealing sleeve K (expendable anchoring component) |
|
C Cone screw M30 SW50 7cm |
|
D Pigtail anchor (expendable anchoring component) |
▪ Universal climbing cone or
Universal climbing cone 2G
- The positioning points and the suspension points are prepared using the Universal climbing cone 20.0.
▪ Pigtail anchor
- Expendable anchoring component for anchoring the universal climbing cone (and thus the climbing unit) in the concrete from one side.
▪ Cone screw M30 SW50 7cm
- Positioning point – for fastening the universal climbing cone.
- Suspension point – safe means of suspending the climbing unit.
|
|
NOTICE ▪ Use only the Cone screw M30 SW50 7cm for the positioning point and suspension point (head of screw is green)! ▪ The use of the Cone screw B 7cm (head area marked red) is prohibited. |
Ideally, pigtail anchors are used, or – depending on the characteristics of the structure – stop anchors.
.
