Article list
[kg]
Article N°
Cantilever bracket D22 K ( 190.0 kg | 580610000 )
Sperrenkonsole D22 K
|
Painted blue Width: 189 cm Delivery condition: railing included |
|
Cantilever bracket D22 F ( 203.0 kg | 580611000 )
Sperrenkonsole D22 F
|
Painted blue Width: 237 cm Delivery condition: railing included |
|
Horizontal profile D22 F ( 109.0 kg | 580626000 )
Horizontalprofil D22 F
|
Painted blue Length: 236 cm |
|
Vertical profile D22 F ( 59.8 kg | 580627000 )
Vertikalprofil D22 F
|
Painted blue Height: 247 cm |
|
Pressure strut D22 F ( 44.0 kg | 580628000 )
Druckstrebe D22 F
|
Painted blue Height: 268 cm |
|
Locking plate D22 F ( 5.2 kg | 580629000 )
Sicherungsplatte D22 F
|
Powder-coated red Length: 16.2 cm Width: 15 cm |
|
Handrail post for cantilever bracket ( 7.9 kg | 500610003 )
Sperrenkonsolengeländer
|
Painted blue Height: 144 cm |
|
Vertical waling D22 3.00m U160 ( 115.5 kg | 580613000 )
Vertical waling D22 4.00m U160 ( 154.5 kg | 580615000 )
Sperrenriegel D
|
Painted blue |
|
Spindle strut D22 3.00m ( 52.6 kg | 580616000 )
Spindelstrebe D22 3,00m
|
Painted blue Length: 215 - 258 cm |
|
Spindle strut D22 4.00m ( 55.4 kg | 580617000 )
Spindelstrebe D22 4,00m
|
Painted blue Length: 258 - 301 cm |
|
Swivel bearing plate D22 ( 30.0 kg | 580618000 )
Gelenkaufsatz D22
|
Painted blue Length: 52 cm Height: 27 cm |
|
Swivel bearing plate D22 S ( 26.0 kg | 580624000 )
Gelenkaufsatz D22 S
|
Painted blue Length: 45 cm Height: 27 cm |
|
Screw-on handrail post 1.50m ( 9.0 kg | 540451080 )
Anschraubgeländer 1,50m
|
Galvanised |
|
Handrail clamp S ( 11.5 kg | 580470000 )
Schutzgeländerzwinge S
|
Galvanised Height: 123 - 171 cm |
|
Suspension profile D15/D22 ( 28.6 kg | 580621000 )
Hängeprofil D15/D22
|
Galvanised Height: 260 cm |
|
Screw-on access bracket MF75 ( 19.0 kg | 580669000 )
Anschraubbühne MF75
|
Galvanised Length: 113 cm Height: 152 cm |
|
Swivel plate MF ( 4.5 kg | 580672000 )
Schwenkplatte MF
|
Galvanised Length: 29 cm Height: 20 cm Width-across: 30 mm |
|
Wind bracing MF/150F/K 6.00m ( 4.7 kg | 580665000 )
Windabspannung MF/150F/K 6,00m
|
Galvanised |
|
Starter block unit D22 ( 80.0 kg | 580622000 )
Grundblockriegel D22
|
Painted blue Length: 147 cm |
|
Anchor waling 1.95m ( 76.3 kg | 580545000 )
Anchor waling 2.95m ( 110.0 kg | 580546000 )
Ankerriegel
|
Painted blue |
|
Travelling profile D22 ( 20.0 kg | 580619000 )
Fahrprofil D22
|
Galvanised Length: 114 cm |
|
Waling-to-bracket holder 9-24cm ( 2.9 kg | 580639000 )
Riegelhalter 9-24cm
|
Galvanised |
|
Waling-to-bracket holder D22 ( 2.7 kg | 580623000 )
Keilriegelhalter D22
|
Galvanised Length: 31 cm Height: 31 cm |
|
Scaffold tube 48.3mm 0.50m ( 1.7 kg | 682026000 )
Scaffold tube 48.3mm 1.00m ( 3.6 kg | 682014000 )
Scaffold tube 48.3mm 1.50m ( 5.4 kg | 682015000 )
Scaffold tube 48.3mm 2.00m ( 7.2 kg | 682016000 )
Scaffold tube 48.3mm 2.50m ( 9.0 kg | 682017000 )
Scaffold tube 48.3mm 3.00m ( 10.8 kg | 682018000 )
Scaffold tube 48.3mm 3.50m ( 12.6 kg | 682019000 )
Scaffold tube 48.3mm 4.00m ( 14.4 kg | 682021000 )
Scaffold tube 48.3mm 4.50m ( 16.2 kg | 682022000 )
Scaffold tube 48.3mm 5.00m ( 18.0 kg | 682023000 )
Scaffold tube 48.3mm 5.50m ( 19.8 kg | 682024000 )
Scaffold tube 48.3mm 6.00m ( 21.6 kg | 682025000 )
Scaffold tube 48.3mm .....m ( 3.6 kg | 682001000 )
Gerüstrohr 48,3mm
|
Galvanised |
|
Screw-on coupler 48mm 50 ( 0.84 kg | 682002000 )
Screw-on coupler 48mm 95 ( 0.88 kg | 586013000 )
Anschraubkupplung
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Screw-on coupler 48mm 135 ( 0.92 kg | 582892000 )
Anschraubkupplung 48mm 135
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Swivel coupler 48mm ( 1.5 kg | 582560000 )
Drehkupplung 48mm
|
Galvanised Width-across: 22 mm Follow the directions in the "Fitting instructions"! |
|
Lifting beam 110kN 6.00m ( 136.5 kg | 586359000 )
Umsetzbalken 110kN 6,00m
|
Galvanised Length: 626 cm Follow the directions in the "Operating Instructions"! |
|
Warning sign "No entry" 300x300mm ( 0.70 kg | 581575000 )
Verbotsschild "Zutritt Verboten" 300x300mm
|
|
|
SI Cantilever br. with pigt. anch. 20.0 en-GB ( 1.5 kg | 999438902 )
KA Sperrenkonsole mit Wellenanker 20,0 en-GB
|
Width: 119 cm Height: 84 cm Short instruction |
|
SI Cantilever br. with pigt. anch. 26.5 en-GB ( 1.5 kg | 999439002 )
KA Sperrenkonsole mit Wellenanker 26,5 en-GB
|
Width: 119 cm Height: 84 cm Short instruction |
|
Ratchet MF 3/4" SW50 ( 5.1 kg | 580648000 )
Antriebsknarre MF 3/4" SW50
|
Galvanised |
|

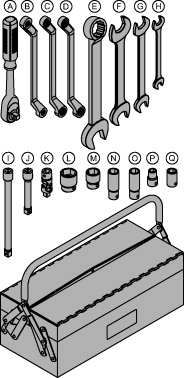

Tool box GF ( 7.2 kg | 580390000 )
GF-Werkzeugbox
included in scope of supply:
(A)Reversible ratchet 1/2" ( 0.73 kg | 580580000 )
Galvanised
(B)Ring spanner 13/15 ( 0.25 kg | 580599000 )
(C)Ring spanner 16/18 ( 0.23 kg | 580644000 )
(D)Ring spanner 17/19 ( 0.27 kg | 580590000 )
(E)Combination wrench 36 ( 0.75 kg | 582860000 )
(F)Fork wrench 30/32 ( 0.80 kg | 580897000 )
(G)Fork wrench 22/24 ( 0.22 kg | 580587000 )
(H)Fork wrench 13/17 ( 0.08 kg | 580577000 )
(I)Extension 22cm 1/2" ( 0.31 kg | 580582000 )
(J)Extension 11cm 1/2" ( 0.20 kg | 580581000 )
(K)Universal joint coupling 1/2" ( 0.16 kg | 580583000 )
(L)Box nut 30 1/2" ( 0.20 kg | 580575000 )
(M)Box nut 24 1/2" ( 0.12 kg | 580584000 )
(N)Box nut 19 1/2" L ( 0.16 kg | 580598000 )
(O)Box nut 18 1/2" L ( 0.15 kg | 580642000 )
(P)Box nut 15 1/2" ( 0.09 kg | 580676000 )
(Q)Box nut 13 1/2" ( 0.06 kg | 580576000 )
|
|
|
Additional tools MF ( 5.4 kg | 580682000 )
Zusatzwerkzeuge MF
consisting of:
(A)Reversible ratchet 3/4" ( 1.5 kg | 580894000 )
Galvanised
(B)Box nut 50 3/4" ( 0.81 kg | 581449000 )
(C)Box nut 17 1/2" ( 0.07 kg | 580685000 )
(D)Box nut 16 1/2" ( 0.08 kg | 580640000 )
(E)Extension 20cm 3/4" ( 0.68 kg | 580683000 )
(F)Transition piece A 1/2"x3/4" ( 0.18 kg | 580684000 )
(G)Universal cone spanner 15.0/20.0 ( 0.90 kg | 581448000 )
Galvanised
Width-across: 50 mm
(H)Safety Ruler SK ( 0.02 kg | 581439000 )
Length: 18 cm
(I)Hexagon bit socket 14mm 1/2" ( 0.13 kg | 581583000 )
|
|
|
Form-ply protector 32mm ( 0.38 kg | 580220000 )
Schalhautschutz 32mm
|
Galvanised Width-across: 70 mm |
|
Mounting tool for form-ply protector ( 0.96 kg | 580222000 )
Montagewerkzeug Schalhautschutz
|
Galvanised |
|
Tie rod system 20.0
Universal climbing cone 20.0 2G ( 1.2 kg | 581442500 )
Universal-Kletterkonus 20,0 2G
|
Galvanised Green Length: 12.8 cm Diameter: 5.3 cm |
|
Universal climbing cone 20.0 ( 1.2 kg | 581442000 )
Universal-Kletterkonus 20,0
|
Galvanised Green Length: 12.8 cm Diameter: 5.3 cm |
|
Sealing sleeve K 20.0 ( 0.03 kg | 581443000 )
Dichtungshülse K 20,0
|
Green Length: 12 cm Diameter: 6 cm |
|
Cone screw M30 SW50 7cm ( 0.88 kg | 581444500 )
Konusschraube M30 SW50 7cm
|
Green Length: 10 cm Diameter: 7 cm Width-across: 50 mm |
|
Form-ply protector 32mm ( 0.38 kg | 580220000 )
Schalhautschutz 32mm
|
Galvanised Width-across: 70 mm |
|
Pigtail anchor 20.0 ( 2.0 kg | 581450000 )
Wellenanker 20,0
|
Non-treated Length: 76 cm |
|
Stop anchor 20.0 C17 ( 0.62 kg | 581457000 )
Sperranker 20,0 C17
|
Non-treated |
|
Stop anchor 20.0 C40 ( 1.2 kg | 581458000 )
Sperranker 20,0 C40
|
Non-treated |
|
Positioning bolt M30x380 ( 3.0 kg | 581816000 )
Vorlaufschraube M30x380
|
Galvanised Width-across: 50 mm |
|
Positioning clamp M30 ( 0.19 kg | 581833000 )
Vorlaufklemme M30
|
Galvanised Diameter: 4 cm |
|
Tie rod system 26.5
Universal climbing cone 26.5 2G ( 1.1 kg | 581987500 )
Universal-Kletterkonus 26,5 2G
|
Galvanised Blue Length: 12.8 cm Diameter: 5.3 cm |
|
Universal climbing cone 26.5 ( 1.1 kg | 581987000 )
Universal-Kletterkonus 26,5
|
Galvanised Blue Length: 12.8 cm Diameter: 5.3 cm |
|
Sealing sleeve K 26.5 ( 0.02 kg | 581998000 )
Dichtungshülse K 26,5
|
Light blue Length: 11 cm Diameter: 6 cm |
|
Pigtail anchor 26.5 ( 3.6 kg | 581900000 )
Wellenanker 26,5
|
Non-treated Length: 80 cm |
|
Ladder system XS
Manhole B 70/60cm ( 22.0 kg | 581530000 )
Bühnendurchstieg B 70/60cm
|
Steel parts galvanised Timber parts varnished yellow Length: 81 cm Width: 71 cm |
|
Cover hinge SK 35cm ( 0.30 kg | 581533000 )
Deckelscharnier SK 35cm
|
Galvanised |
|
System ladder XS 4.40m ( 33.2 kg | 588640000 )
System-Leiter XS 4,40m
|
Galvanised |
|
Ladder extension XS 2.30m ( 19.1 kg | 588641000 )
Leiternverlängerung XS 2,30m
|
Galvanised |
|
Ladder clamp SK ( 0.23 kg | 581239000 )
Leiternklemme SK
|
Galvanised Length: 8 cm |
|
Ladder bolt XS ( 0.85 kg | 581561000 )
Leiternbolzen XS
|
Galvanised Length: 51 cm |
|
Ladder holder SK ( 0.36 kg | 581532000 )
Leiternhalter SK
|
Galvanised |
|
Ladder adapter SK ( 2.3 kg | 581531000 )
Leiternfuß SK
|
Galvanised |
|
Ladder adapter XS ( 5.0 kg | 588673000 )
Leiternfuß XS
|
Galvanised Height: 50 cm |
|
Connector XS Wall formwork ( 20.8 kg | 588662000 )
Anschluss XS Wandschalung
|
Galvanised Width: 89 cm Height: 63 cm |
|
Ladder cage XS 1.00m ( 16.5 kg | 588643000 )
Ladder cage XS 0.25m ( 10.5 kg | 588670000 )
Rückenschutz XS
|
Galvanised |
|
Multi-trip packaging
Doka skeleton transport box 1.70x0.80m ( 87.0 kg | 583012000 )
Doka-Gitterbox 1,70x0,80m
|
Galvanised Height: 113 cm |
|
Doka multi-trip transport box 1.20x0.80m ( 70.0 kg | 583011000 )
Doka-Mehrwegcontainer 1,20x0,80m
|
Galvanised Height: 78 cm |
|
Multi-trip transport box partition 0.80m ( 3.7 kg | 583018000 )
Multi-trip transport box partition 1.20m ( 5.5 kg | 583017000 )
Mehrwegcontainer Unterteilung
|
Steel parts galvanised Timber parts varnished yellow |
|

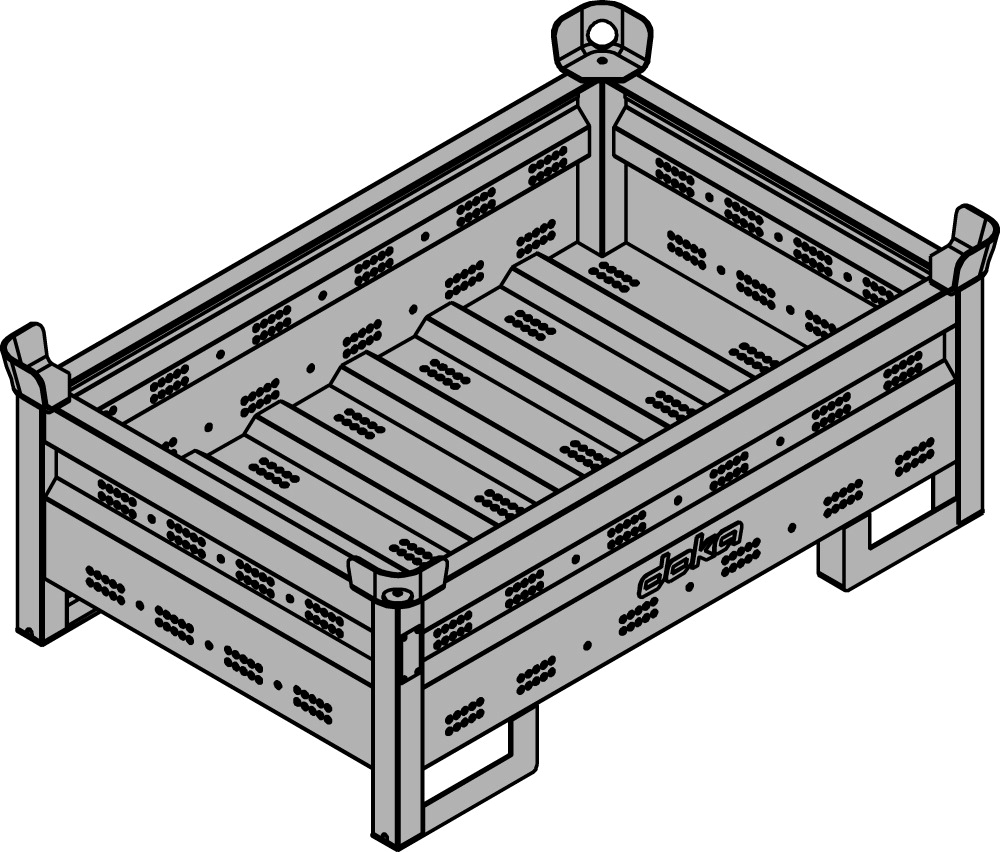

Doka multi-trip transport box 1.20x0.80x0.41m ( 42.5 kg | 583009000 )
Doka-Mehrwegcontainer 1,20x0,80x0,41m
|
Galvanised |
|
Doka stacking pallet 1.55x0.85m ( 41.0 kg | 586151000 )
Doka-Stapelpalette 1,55x0,85m
|
Galvanised Height: 77 cm |
|
Doka stacking pallet 1.20x0.80m ( 38.0 kg | 583016000 )
Doka-Stapelpalette 1,20x0,80m
|
Galvanised Height: 77 cm |
|
Doka accessory box ( 106.4 kg | 583010000 )
Doka-Kleinteilebox
|
Timber parts varnished yellow Steel parts galvanised Length: 154 cm Width: 83 cm Height: 77 cm |
|
Bolt-on castor set B ( 33.6 kg | 586168000 )
Anklemm-Radsatz B
|
Painted blue |
|
