Concremote 2.0 (2019 onward)
New features enhance the tried-and-tested first-generation Concremote sensors in the new 'Concremote 2.0' sensor generation.

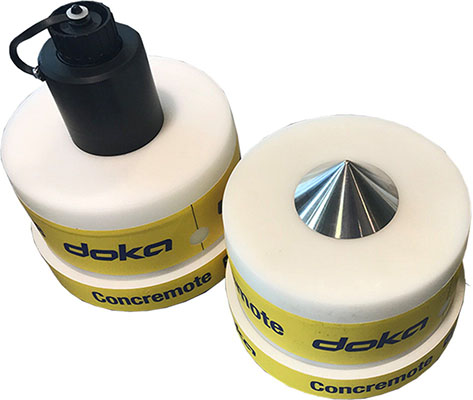

Left: Concremote cable sensor 2.0
Right: Concremote slab sensor 2.0
Features:
▪ Bluetooth BLE
▪ 2G, 3G and 4G data transmission
Different versions (modems) available. (For more information, please consult your Doka contact person.)
▪ Rechargeable battery
▪ LED status indicator on the sensor
▪ IP67 certification
IP code
|
IP |
6 |
7 |
|---|---|---|
|
Protection against penetration |
1st digit: |
2nd digit: |
|
|
Dustproof |
Immersion to a depth of 1 metre |
|
|
No dust penetration; complete protection against touch (dustproof). |
Ingress of water in health-endangering quantity is not possible when the housing is immersed in water under defined pressure and time conditions (depth of immersion up to 1 metre). |
|
|
A vacuum must be created. Test duration up to 8 hours based on the airflow. |
Test duration: 30 minutes |
Technical data
|
Area of use |
-20 to +60°C / -4 to +140°F |
|
Measuring range: |
|
|
Battery type |
Lithium ion (integral) |
|
Charging time |
Up to 24 hours (depending on residual charge, actively controlled). Charging with AC adapter supplied (12 V DC / 1A) in dry environment. |
|
Battery runtime |
Up to 90 days*) |
|
Measuring interval |
10 minutes (default) |
|
Data transmission interval |
60 minutes (default) |
*) Battery runtime depends on network reception and on measuring and data transmission intervals. Battery charge state can be monitored on the Concremote Web portal.
Note:
The built-in battery must be fully charged before first use.
Certified frequency bands
|
Frequency band |
Power level |
|---|---|
|
GSM850 / GSM900 |
33dBm±2dB |
|
DCS1800 / PCS1900 |
30dBm±2dB |
|
GSM850/GSM900 (8-PSK) |
27dBm±3dB |
|
DCS1800/PCS1900 (8-PSK) |
26dBm±3dB |
|
WCDMA bands B1, B2, B4, B5, B8 |
24dBm+1/-3dB |
|
LTE-FDD B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28 |
23dBm±2dB |
|
LTE-TDD B40 |
23dBm±2dB |
|
BLE 2.4GHz |
+4dBm |
.
