Design of the foundation formwork
With panels of up to 0.90 m in width, the foundation clamp allows you to tie the panels above the concrete.

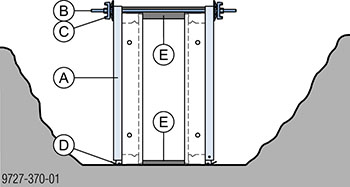

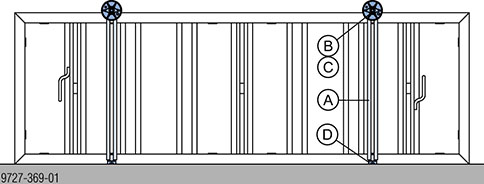

Panel, width 0.90 m, longside horizontal:
|
A Framax foundation clamp |
|
B Tie rod 15.0mm |
|
C Super plate 15.0 |
|
D Doka perforated tape |
|
E Wooden spacer |

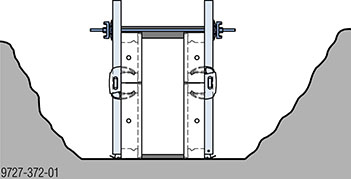

Example: Panel width 0.45 + 0.30m
.
